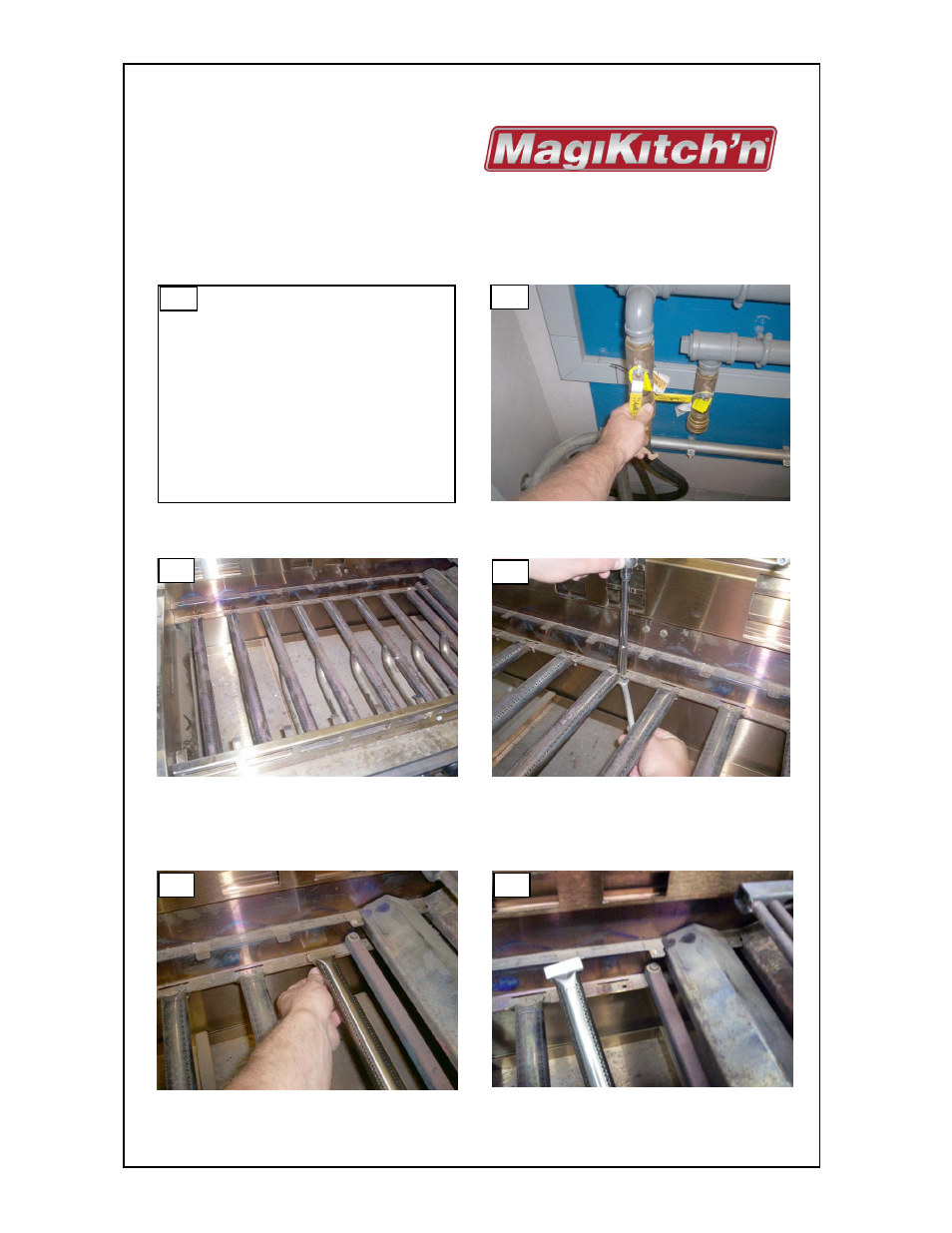

Orifice Tip Replacement Procedure
Series 600 Quick Reference Card
L80-054 1 Rev 0 (7/08)
For Standard Input Models, pull
the hitchpin from the burner
mounting flange.
Lift the burner up, and pull it out
from the burner orifice. It is the
same motion for all Models.
Standard Input Models
1/2" Deep Socket
w/ Extension
Hi Input Models
1/2" & 7/16" Deep Socket
w/ Extension
7/16" Open End Wrench
Remove Top Grids, Radiants or
Coal Screens.
For Hi Input Models, use the
7/16" deep socket, and 7/16"
wrench to remove mounting bolt
and nut from the burner.
Recommended Tools Turn off the main gas supply.
The following procedure describes the steps to change or replace the
main burner gas orifice(s) on Series 600 appliances, All Options.
Note: This procedure should be performed with the main gas supply
shut off and disconnected.
3 4
5
2 1
6
