11
5.2. Optional Side Burner Lighting Instructions
Prior to lighting the unit, make sure all gas valve knobs are in
the “Off” position, proceed when all gas valves are closed. If
your appliance is equipped with a hood, make sure the hood is
in the raised open position. Refer to figure 5 for the following
steps unless otherwise instructed.
A. Open the gas supply valve on the propane cylinder (2).
B. Turn the pilot gas valve (3) to the “On” (I) position.

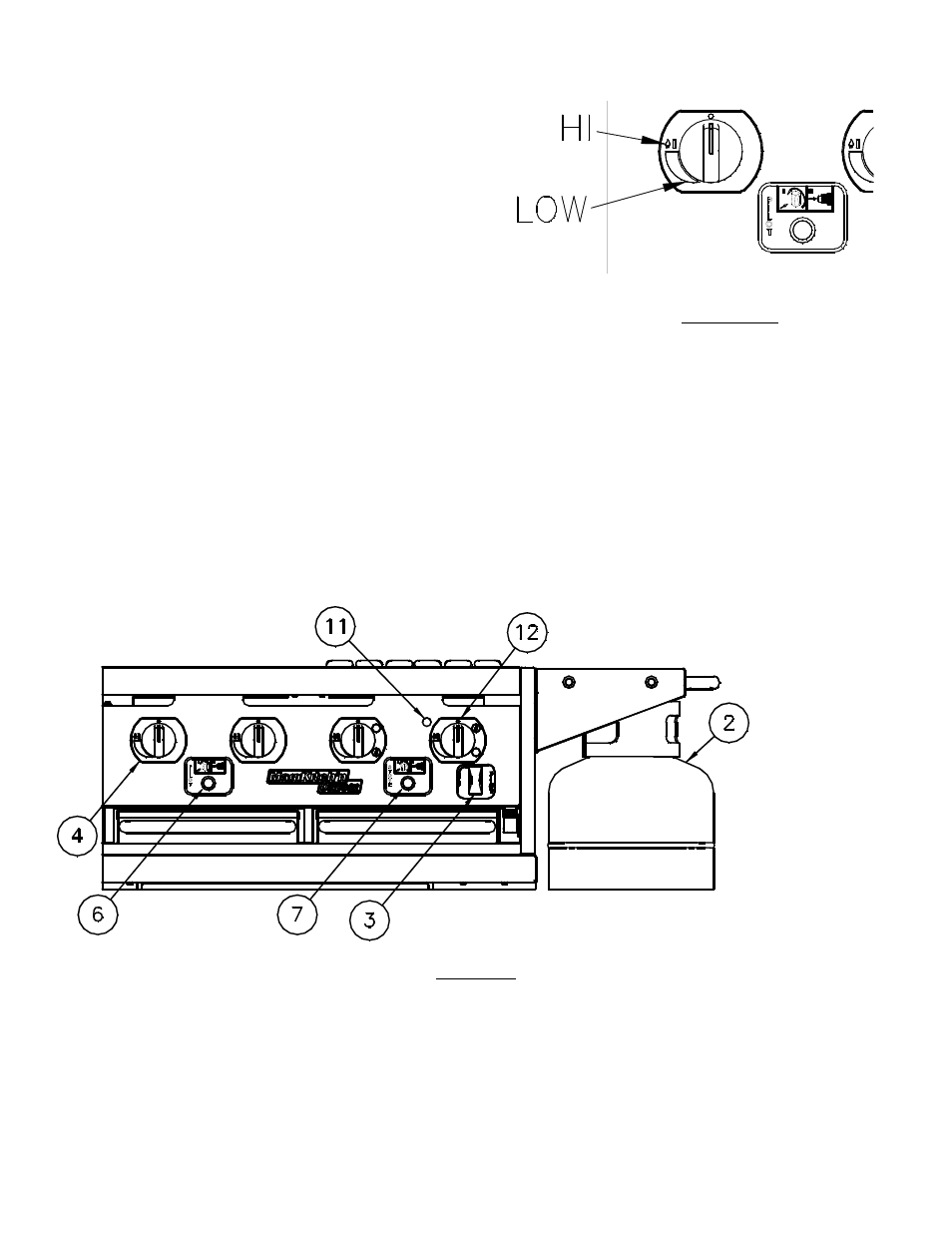

DIAGRAM 2
C. Turn the desired side burner valve (12) to the “On” (I) position. There will be a circled flame that denotes which valve
controls the front or rear side burner.
Note: If the appliance is not equipped with an optional side burner, then the side burner valve(s) (12) will be
additional main burner valve(s) (4).
D. Depress the stove igniter button (7) until the desired side burner is lit, you should hear a “clicking” sound emitting from
the spark igniter.
Note: If there is no clicking sound emitting from the spark igniter it may be an indication that there is no battery in
the unit, or the battery has no charge.
D. Verify that the desired side burner (10), See figure 4, is lit. Flame will be visibly emitting from around the entire
circumference of the burner if operating properly. If the side burner(s) will not light or stay lit, shut off the gas supply and do
not use the unit. Wait 5 minutes before attempting to re-light the unit. After each side burner is lit, the control knob can be
changed from Hi to Low as desired, see diagram 1.
FIGURE 5
5.3. Shutdown Instructions
To safely shutdown the appliance, perform the following steps in the order shown:
A. Turn all the main burner valve(s) (4), or side burner valve(s) (12) to the “Off” (0) position.
B. Turn off the pilot valve(s) (3) to the “Off” (0) position.
C. Close the valve on the approved propane cylinder (2). See Figure 5.
