To assemble the rotisserie refer to the following steps, refer to figure 6 unless otherwise instructed.

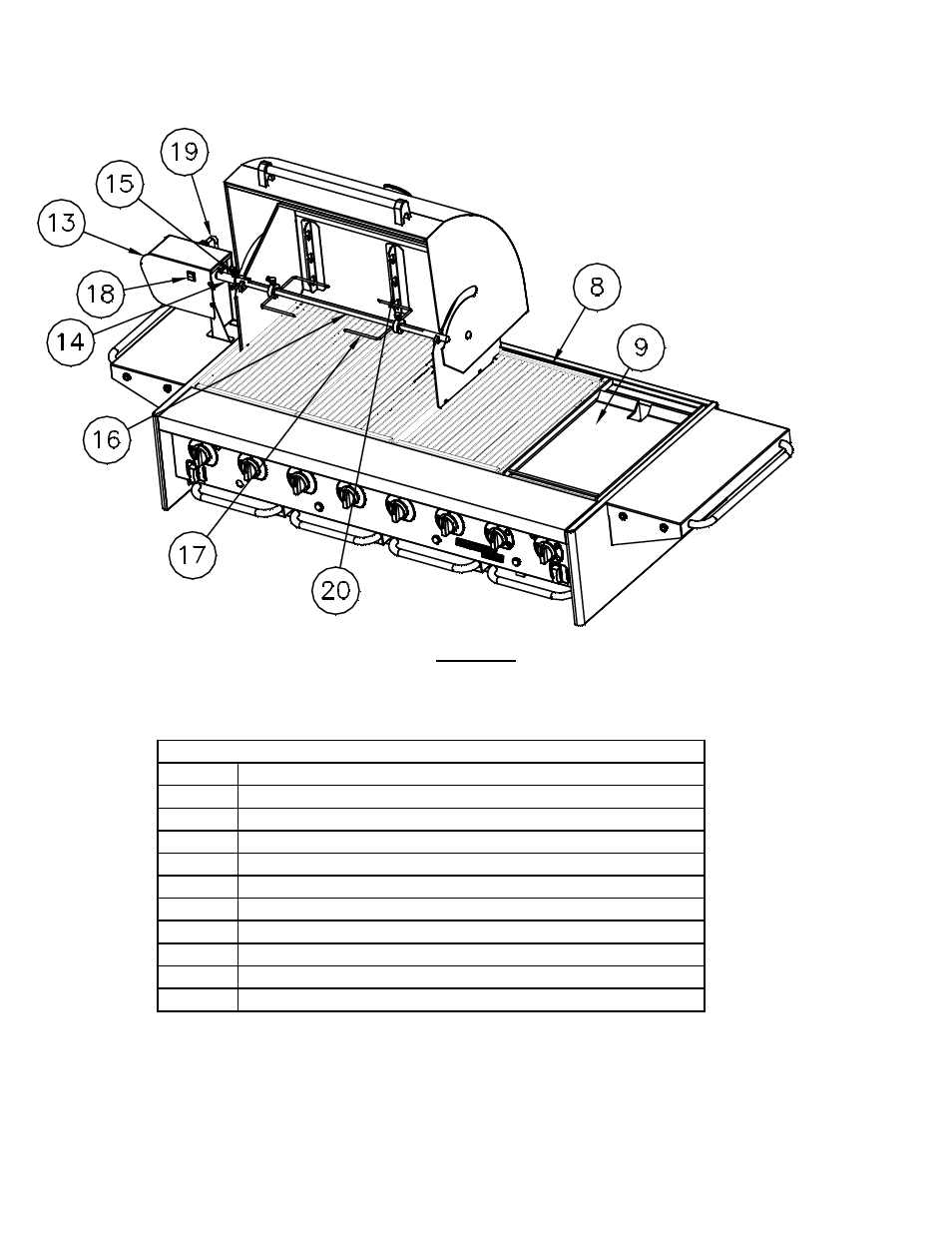

FIGURE 6
The rotisserie motor housing assembly (13), shown on the left, is fixed to the side shelf with hex head bolts. It can be
removed with the use of simple tools for storage. The rotisserie is shown assembled in figure 6, the legend below
identifies the parts for reference.
A. The spit coupling (14) secures the rotisserie spit (16) to the motor housing assembly (13).
B.
The quick release pin (15) is used to connect and disconnect the spit from the motor. To connect, align the holes in
the end of the spit (16) with mating holes in the spit coupling (14).
C.
The spit (16) needs to be disconnected to place food product for cooking. The rotisserie forks (17) are placed onto the
spit after the food product has been placed.
ITEM #
8
9
13
14
15
16
17
18
19
20
ROTISSERIE SPIT
ROTISSERIE FORKS (2)
WARMING RACK SUPPORT BRACKETS (RACK NOT SHOWN)
ON/OFF SWITCH
POWER CORD
STAINLESS STEEL COOKING GRATE
CHROME PLATED GRIDDLE
ROTISSERIE MOTOR HOUSING ASSEMBLY
SPIT COUPLING
QUICK RELEASE RETENTION PIN
ROTISSERIE ASSEMBLY LEGEND, FIGURE 6
