6
A. Remove shipping bands from carton.
B. Remove top of carton, locate the serial number on the data information plate and write in the information block on the
cover of this manual for future reference.
C. Remove cooking grids(s), (1) from unit and set aside.
D. Remove and unwrap any small parts packages that are located inside beneath the cooking grid. NOTE: Parts made of
stainless steel may be coated with a protective plastic film that must be removed before firing.
E. Remove water tub(s) (5) from cabinet frame (3) and set aside.
F. Lift cabinet frame assembly (3) from pallet and set aside.
G. Remove any strapping or packaging tape that may have been used to hold the burner radiants (2), and runner tube cover(s) (4) in place.
H. For charbroilers intended for use on and existing counter surface, or built in application, the cabinet frame can now be
installed in accordance with the safety information starting on page 3 of this manual.
Note: For appliances ordered with the mobile base, please refer to the Cabinet Base assembly section prior to
continuing.

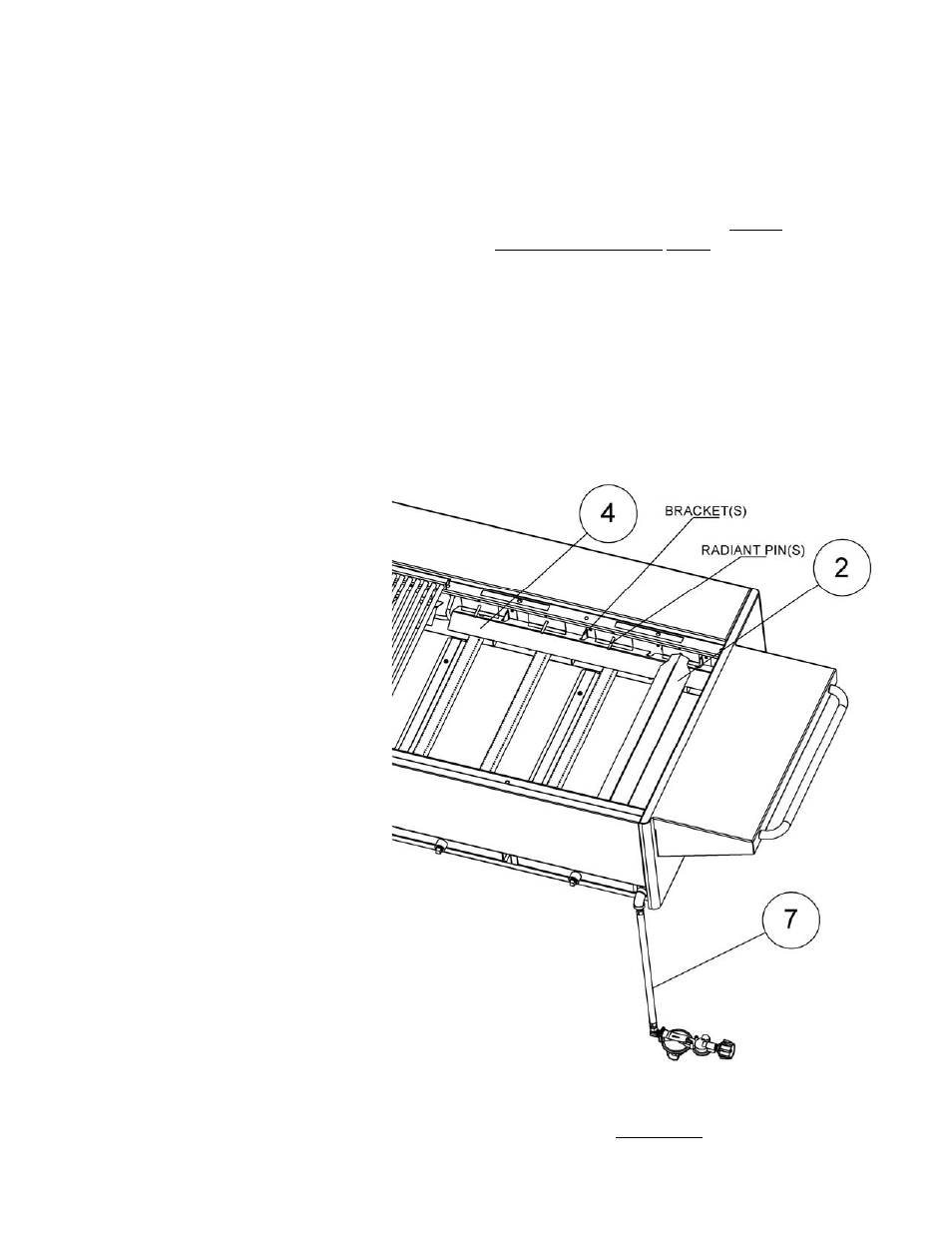

I. Place runner tube cover(s) (4) on the runner tube
support bracket(s) to cover the runner tube(s), see
figure 2. Slots in the runner tube cover(s) (4) will fit
over the brackets and the igniter spark rod.
J. Place the radiants (2) on their front and rear support
pins over each burner. M. Slide water tub(s) (9)
into frame assembly (6).
K. Install the water tub(s) (5) by sliding them into
the cabinet frame, they should rest on the floor of the
assembly.
L. Place cooking grid(s) (1) onto frame
assembly, the cooking grid supports are built
into the frame assembly.
Note: Built in Models may not have side
service shelves (6).
M. Install regulator hose assembly onto the ½”
NPT pipe connection at the rear of the unit.
Models intended for use with a fixed gas
supply will be supplied with a pressure
regulator.
FIGURE 2
