Keyboard Icon:
Press to directly access a video or an
audio track. When the icon is pressed a
keyboard will appear. The user can then
enter the desired feature number and
press OK. The item will begin to play.

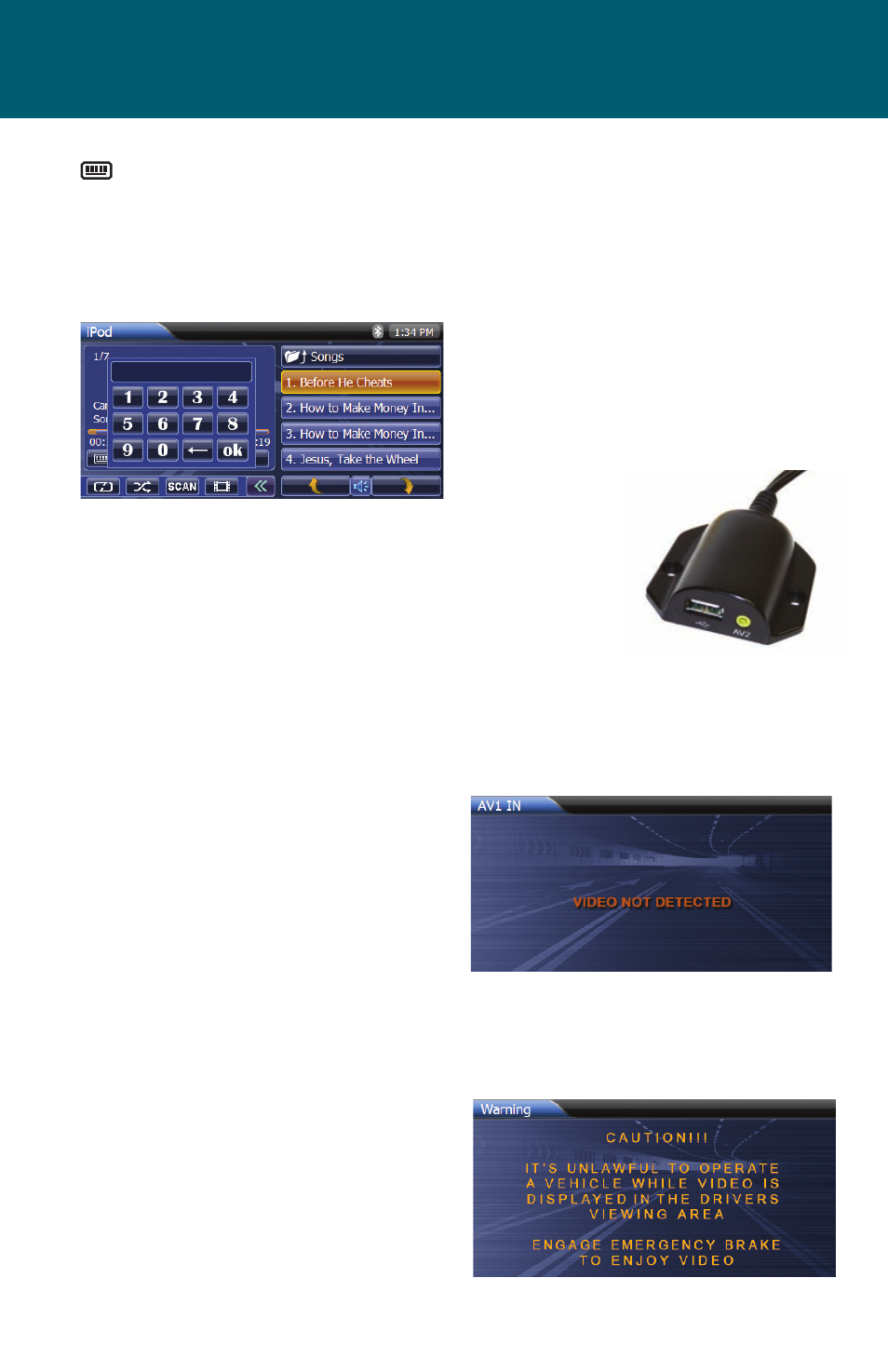

Direct Tuning Screen:
When the Keyboard Icon is pressed
in the AV2 (Media Device) Screen a
keyboard will appear. The user can enter
the number corresponding to the de-
sired item in the menu listing using the
numeric keypad. Once the desired item
is entered press OK and the unit will ac-
cess the item in the menu.
AV1/AV2 INPUT
AV1 Auxiliary Audio/Video Input:
The unit contains an auxiliary audio/
video input which can accept signals
from various audio/video devices. The
AVIN jack on the front panel (reference
Item 2, Controls and Indicators) accepts
a 3.5mm jack which has three female
color coded RCA jacks on the opposite
end. The yellow jack is used for video,
the red jack accepts the right channel
audio and the white jack accepts the left
channel audio.
Perform the following to access au-
dio/ video inputs to the to unit’s AVIN
input jack: Turn on the video /audio
source component. Refer to the owner’s
manual for instructions.
1. Connect the device’s output signal
to the unit using the three RCA jacks
(Yellow= Video, Red=Right Audio,
White=Left Audio).
2. Press the unit’s front panel or front
remote control MENU button and
select AV1.
3. Use the controls located on the
device to start playback and other
control functions.
AV2 Auxiliary Audio/Video Input:
The unit contains an auxiliary audio/
video input which can accept signals
from various audio/video devices. The
AV2 Interface Module (see below) will
accept a USB device, a 3.5mm jack, or an
iPod. The iPod
is connected
using the iPod
adapter cable.
The iPod adap-
tor cable plugs
into the USB and
AV2 on the AV2
Interface Module connectors. When the
input signal does not contain a video
signal the following screen will appear:
When a video signal is present, it will be
displayed on the unit’s front panel.
However for the video to be displayed,
the vehicle’s parking brake must be
engaged. If the parking brake is not en-
gaged the following screen will appear:
