40

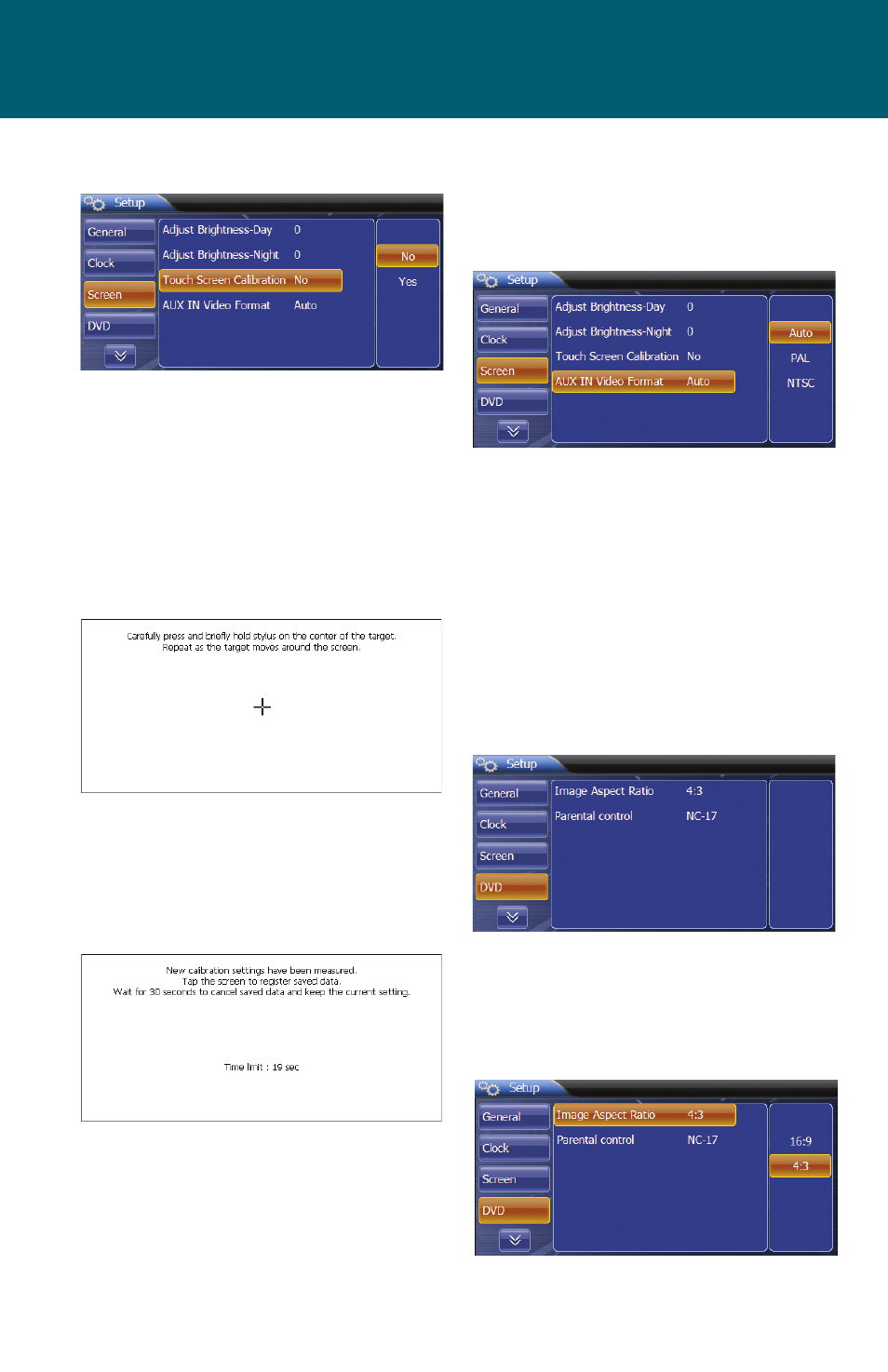

Touch Screen Calibration:
This Touch Screen Calibration adjust-
ment is used to set the parameters of
the touch screen to ensure that when
the screen is pressed that it corresponds
to feature the user is selecting. To cali-
brate the screen, first select the Touch
Screen Calibration. Press the Yes icon
and it will be selected. The following
screen will appear:
Follow the instructions on the screen
to press and briefly hold the stylus. The
stylus will move to each corner of the
screen and finally to the center. The fol-
lowing screen will appear:
If the screen is pressed the new calibra-
tion parameters will be accepted. If the
screen is not pressed within the thirty
seconds, the new parameters will be
disregarded.
AUX IN:
The Aux In allows the use to configure
the unit to accept an auxiliary signal.
Refer to the following screen.
The unit provides three settings for the
auxiliary input signal. The video input
circuitry detects the video signal from
the auxiliary source. If set to Auto, the
color signal output is switched automat-
ically based on the video input signal
(NTSC or PAL).
DVD:
The DVD screen allows the user to
choose the screen aspect ratio and to
set the Parental Control.
Image Aspect Ratio:
Image Aspect Ratio allows the user to
select and set the desired aspect ratio
for the screen. Refer to the following
screen.
