Team Associated RC10B5 User Manual

Page 8

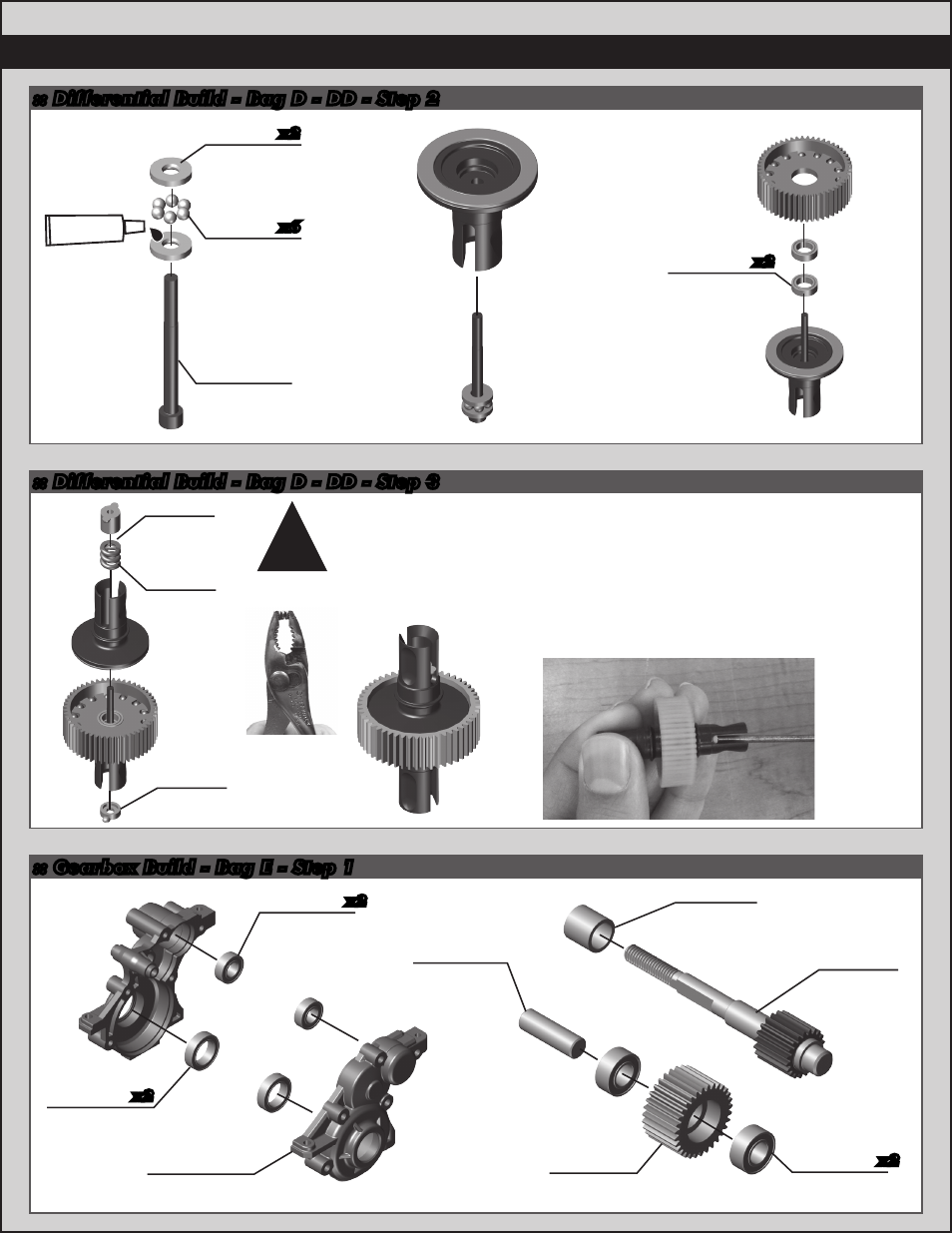

:: Gearbox Build - Bag E - Step 1

25238

6 x 12 x 4,

Bearing

25237

5 x 10 x 4,

Bearing

91425

Top Shaft

91426

Top Shaft

Spacer

25616

10 x 15 x 4,

Bearing

91424

Gearbox

(right & left)

91429

Idler Gear

91011

4x4 Idler

Gear Shaft

:: Differential Build - Bag D - DD - Step 3

As you tighten the diff bolt, you will notice the T-nut ears moving

closer to the bottom of the outdrive slot. This compresses the

spring behind the T-nut. The spring should be completely

compressed at the same time the T-nut reaches the end of the

slot. Caution! Pay close attention to the feeling when the spring

is completely compressed. Do not overtighten the bolt. When

you feel the spring completely compressed, loosen the diff bolt

1/8” of a turn. Your diff should now operate smoothly with

resistance as the outdrives move in opposite directions.

After you have driven the car once, re-check the diff setting.

6575

Diff

cover

6575

Locking

t-nut

6582

Diff

thrust

spring

Compress

spring first.

:: Differential Build - Bag D - DD - Step 2

#6588

black grease

6573

Diff thrust

washer

6574

5/64 diff

thrust

balls

6573

Diff thrust

bolt

31400

5 x 8mm,

Bearing
