Team Associated RC10B5 User Manual
Page 11
11

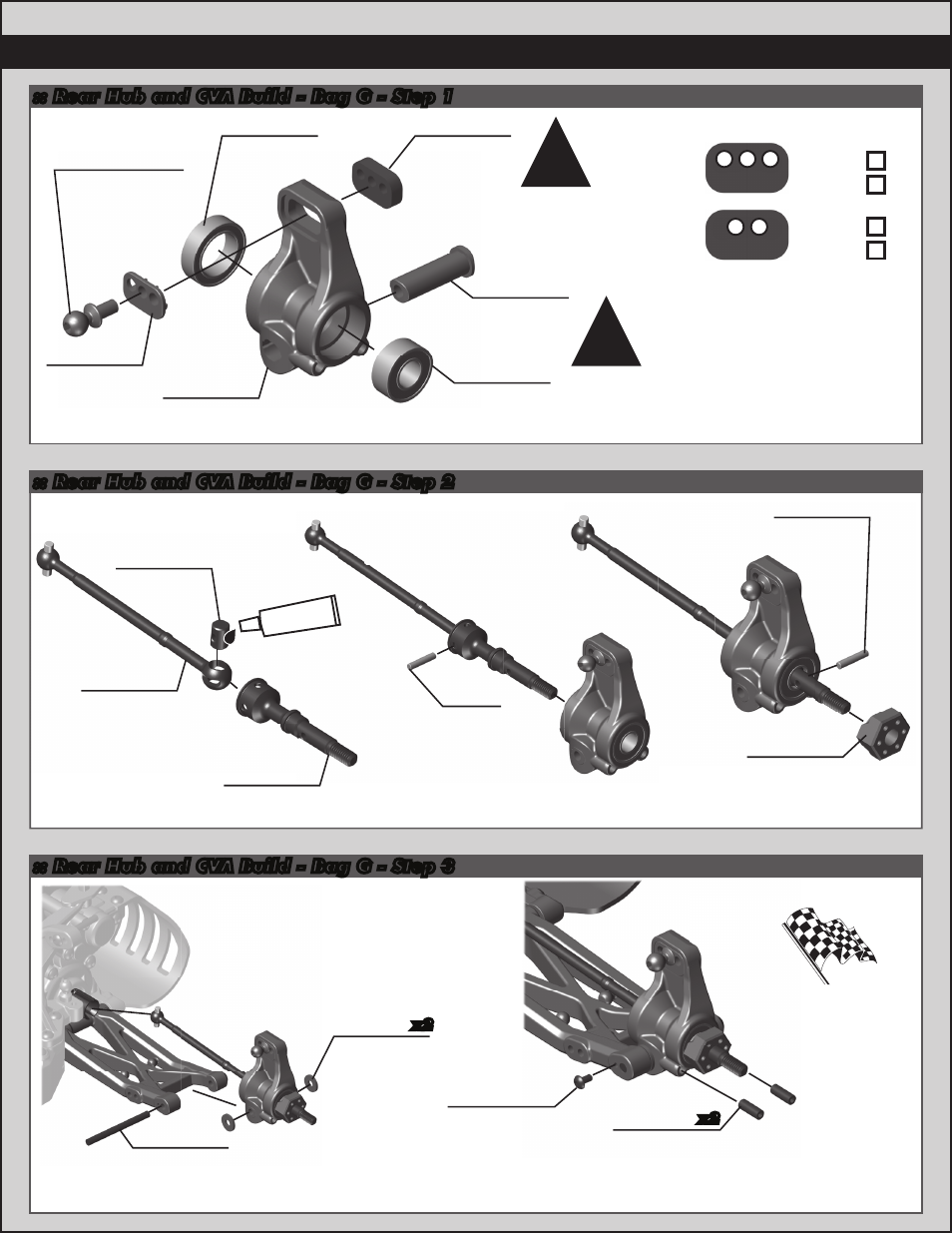

:: Rear Hub and CVA Build - Bag G - Step 3
91414
Rear Hub
Spacer
91394
Hinge Pin
(rear, outer)
4670
M3 x 8mm
Set Screw
(not included in kit)
31510
M2 x 4mm
BHCS
x2
x2
Build x2 (right and left side)
Build x2 (right and left side)
:: Rear Hub and CVA Build - Bag G - Step 2
91436
CVA Wheel
Hex Pin
91441
Wheel
Hex (rear)
91438
CVA
Pin
Build x2 (right and left side)
Build x2 (right and left side)
:: Rear Hub and CVA Build - Bag G - Step 1
Build x2 (right and left side)
#6588
black grease
91476
6 x 13 x 5
Bearing
25616
10 x 15 x 4
Bearing
91047
Heavy-duty
Ballstud, 6mm
91414
Rear Hub
Insert
(0°)
91414
Rear Hub
Link Insert
(A)
91414
Rear Hub
91438
CVA
Coupler
91439
CVA Bone
91437
CVA Axle
91416
Rear Hub
Link Nut
(A)
There are multiple
optional inserts
for the Rear Hub
Insert (0°, 0.5 °, 1 °).
0° is the standard
insert used.
!
!
You can install optional
#4670 set screws to
better hold the rear
hub inserts and
hinge pin.
Rear Hub Link Setting:
Up
Up
Down
Down
A
B
C
B
B
A
A
