18

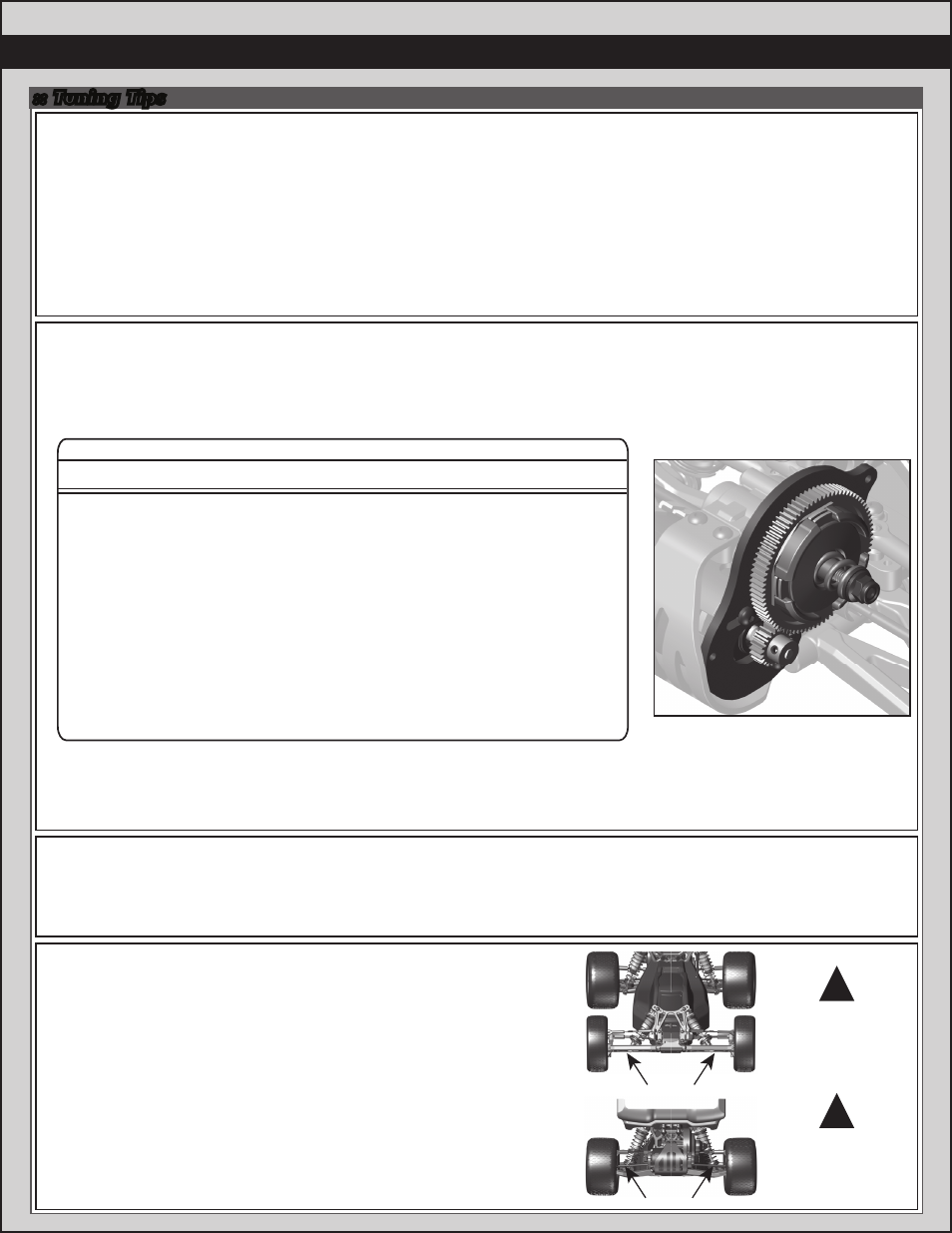

:: Tuning Tips
Tips for Beginners:
Before making any changes to the standard setup, make sure you can get around the track without crashing.
Changes to your vehicle will not be beneficial if you can’t stay on the track. Your goal is consistent laps.
Once you can get around the track consistently, start tuning your vehicle. Make only ONE adjustment at a time, testing
it before making another change. If the result of your adjustment is a faster lap, mark the change on the included setup
sheet (make adddtional copies of the sheet before writing on it). If your adjustment results in a slower lap, revert back
to the previous setup and try another change.
When you are satisfied with your vehicle, fill in the setup sheet thoroughly and file it away. Use this as a guide for future
track days or conditions. Peridicaly check all moving suspension parts. Suspension components must be kept clean
and move freely without binding to prevent poor and/or inconsistent handling.
Slipper Clutch:
The assembly instructions give you a base setting for your clutch. Turn the nut on the shaft so that the end of the top
shaft is even with the outside of the nut. At the track, tighten or loosen the nut in 1/8 turn increments until you hear
a faint slipping sound for 1-2 feet on takeoffs. Another popular way to set the clutch is to hold both rear tires firmly in
place and apply short bursts of throttle. If the clutch is properly set, the front tires should lift slightly up off the surface.
Ride Height:
Ride height is the distance from the ground to the bottom of the chassis.
The standard front ride height setting is with the front arms level
(reffered to as “arms level”) or 24mm (Ride Height Gauge #1449).
Check the ride height by lifting up the entire car about 8-12 inches off the
bench and drop it. After the suspension “settles” into place, measure
ride height (Ride Height Gauge #1449). Raise or lower the shock collars
as necessary so that the left & right arms appear to be level.
The rear ride height setting you should use most often is with the
outdrive, driveshaft, and axles all on the same imaginary horizontal line
(reffered to as “bones level”) or 24mm (Ride Height Gauge#1449).
Check the ride height by lifting up the entire car about 8-12 inches off the
bench and drop it. After the suspension “settles” into place, measure
ride height (Ride Height Gauge #1449). Raise or lower the shock collars
as necessary so that the left & right driveshafts appear to be level.
*Front arms should
be in a straight line
when ride height is
set at “arms level”
!
*CVA bones should
be in a straight line
when ride height is
set at “CVA bones
level”
!
Motor Gearing:
Proper motor gearing will result in maximum performance and run time while reducing the chance of overheating and
premature motor failure. The gear ratio chart lists recommended starting gear ratios for the most widely used
motor types. Gear ratios will vary depending upon motor brand, wind, and electronic speed control. Consult your
motor and electronic speed control manufacturers for more information.
Team Associated is not responsible for motor damage due to improper gearing.
Set The Gear Mesh:
You should be able to rock the spur gear back and forth in the teeth of the pinion gear without making the pinion gear
move. If the spur gear mesh is tight, then loosen the #31532 screws and move the motor away, then try again.
A gear mesh that is too tight or too loose will reduce power and damage the gear teeth.
* These gearings are for use with advanced timing speed control settings!
23
31
22
30
24
23
22
21
21
21
21
19
18
Pinion
78
69
81
75
81
81
81
81
81
81
81
81
81
Spur
8.82:1
5.79:1
9.57:1
6.50:1
8.78:1
9.15:1
9.57:1
10.03:1
10.03:1
10.03:1
10.03:1
11.08:1
11.70:1
Final Drive Ratio
17.5 Reedy Sonic Brushless *
17.5 Reedy Sonic Brushless
13.5 Reedy Sonic Brushless *
13.5 Reedy Sonic Brushless
10.5 Reedy Sonic Brushless
9.5 Reedy Sonic Brushless
8.5 Reedy Sonic Brushless
7.5 Reedy Sonic Brushless
6.5 Reedy Sonic Brushless
3300kV Brushless
3900kV Brushless
4900kV Brushless
6100kV Brushless
Motor
B5 Gear Ratio Chart (Internal Gear Ratio 2.60:1)
