Team Associated RC10B5 - Manual (Page 4)

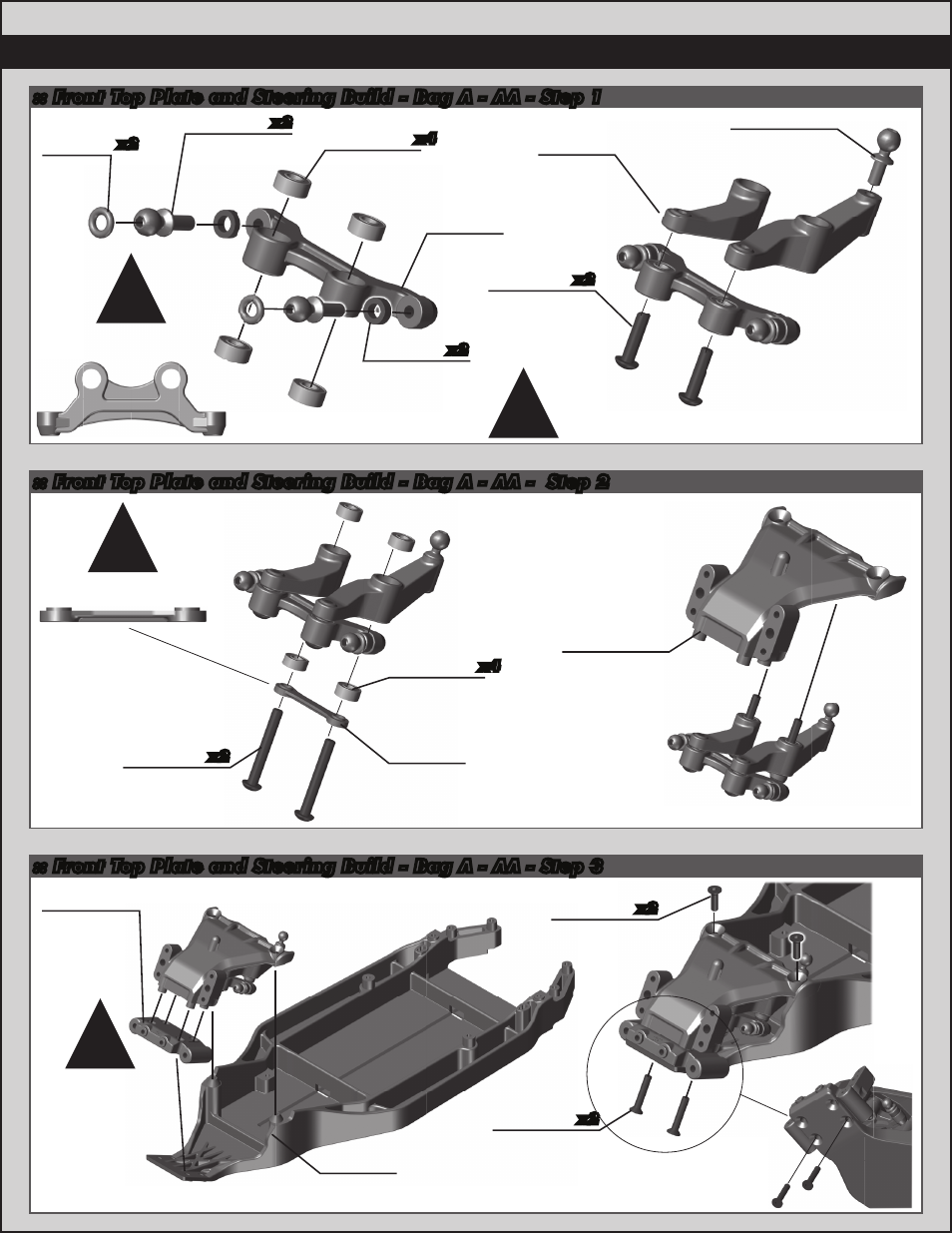

:: Front Top Plate and Steering Build - Bag A - AA - Step 2
:: Front Top Plate and Steering Build - Bag A - AA - Step 3
4
:: Front Top Plate and Steering Build - Bag A - AA - Step 1
Do not overtighten steering bolts. Make sure
there is free movement in the steering rack.
91475
3 x 7 x 3
Ball Bearing
91391
Steering
Rack
x4
x2
x2
x2
x2
x2
91048
Heavy-duty
Ballstud,
8mm
25204
M3 x 16mm
FHCS
91364
Bulkhead
(25 °)
25202
M3 x 10mm
FHCS
5407
Red
O-Ring
31286
FT Ballstud
Washer,
aluminum
(2mm, blue)
There are two
bulkheads included
(25 °, 30 °). 25 ° is
the standard one
used.
!
!
91391
Steering
Bellcrank
Brace
91360
RC10B5
Chassis
91391
Steering
Bellcrank
Brace
91475
3 x 7 x 3
Ball Bearing
x4
x2
x2
25189
M3 x 22mm
BHCS
91362
B5 Top
Plate
89202
M3 x 12mm
BHCS
91047
Heavy-duty
Ballstud,
6mm
Note orientation
of steering rack.
!
Note orientation
of the brace.
!
