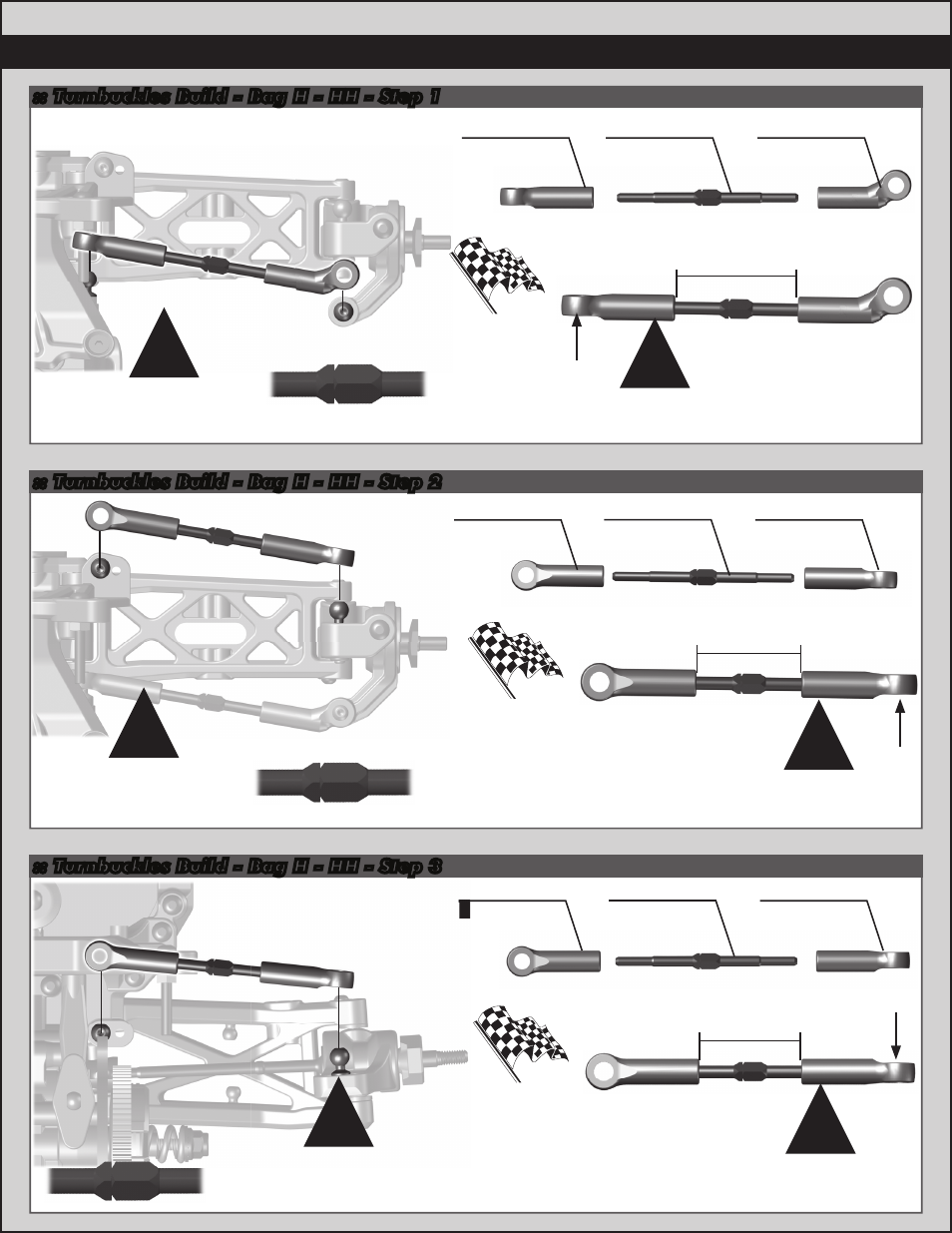

:: Turnbuckles Build - Bag H - HH - Step 3
Build x2 (right and left side)
Rear Camber Turnbuckle
23.30mm
91453
HD Ball Cup
(small)
91453
HD Ball Cup
(small)
6263
Turnbuckle,
2.06”
:: Turnbuckles Build - Bag H - HH - Step 2
Build x2 (right and left side)
Front Camber Turnbuckle
23.85mm
91453
HD Ball Cup
(small)
91453
HD Ball Cup
(small)
6263
Turnbuckle,
2.06”
:: Turnbuckles Build - Bag H - HH - Step 1
91453
HD Ball Cup
(small)
91453
HD Ball Cup
(right)
6263
Turnbuckle,
2.06”
27.50mm
Steering Turnbuckle
Build x2 (right and left side)
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
Install the ballstuds on
curved side of the ballcup!
!
Install the ballstuds on
curved side of the ballcup!
!
Install the ballstuds on
curved side of the ballcup!
!
