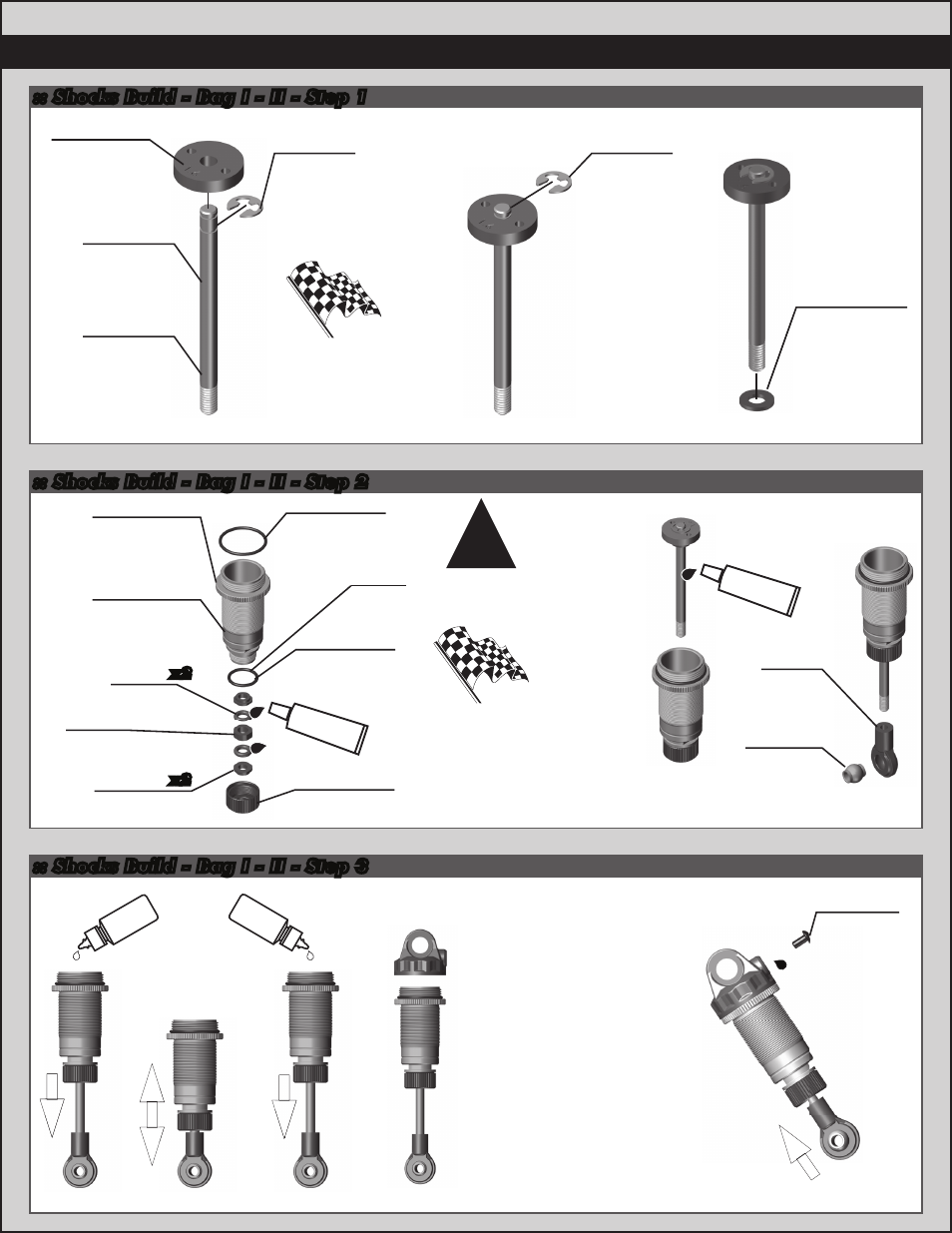

:: Shocks Build - Bag I - II - Step 3
Step 9-10 Step 8 Step 6-7 Step 4-5
Front Shock: 30 wt
Rear Shock: 30 wt
Step 2-3
Shock Bleeding Steps:
1. Before assembly, get each bleed
screw and thread it 1-2 turns into
the shock cap. This will make it easier
when you are bleeding your shocks.
2. Pull shock shaft down.
3. Fill shock body 3/4 full with silicone
shock fluid.
4. Slowly move the shock shaft up and
down to remove air from under the
piston.
5. Wait for bubbles to come to surface.
6. Fill shock body to top with silicone
shock fluid.
7. Place a drop of oil in the cap and on
cap threads.
8. Install cap (without bleed screw) and
tighten completely.
9. Slowly compress shaft all the way to
bleed excess silicone shock fluid out
the hole in the cap (use rag around-
shock to catch excess fluid).
10. Install M2x4mm button head screw
until snug while shaft is fully com-
pressed.
Shock oil
#5422
Shock oil
#5422
31510
M2 x 4mm
BHCS
:: Shocks Build - Bag I - II - Step 2
#1105
green slime
91448
Shock
eyelet
91448
Shock
Pivot Ball
91480
12x23mm V2
Shock Bodies
(front)
91482
12x31mm V2
Shock Bodies
(rear)
91491
V2 Shock
Hat Bushing
91491
V2 Shock
Spacer
5407
O-Ring
31327
VCS3 Shock
Bottom Cap
31327
VCS3 Shock
Bottom Cap
O-Ring
91491
12mm
Shock Cap
O-Ring
x2
x2
#1105
green slime
Lightly rub shock oil
on the o-ring before
installation!
Racers Tip:
Coating the o-rings
with green slime
(#1105) helps seal
& reduce o-ring
swell! Green slime
not included in kit!
:: Shocks Build - Bag I - II - Step 1
91308
12mm
Shock Piston
(1.6 front)
(1.7 rear)
91488
3 x 21
Shock Shaft
(front)
91489
3 x 27.5
Shock Shaft
(rear)
6299
1/8 E-Clip
6299
1/8 E-Clip
4187
Nylon Spacer,
(.030)
Racers Tip:
Use a marker over the
numbers on the pistons to
make them easily visible!
Front:
3 spacers
Rear:
2 spacers
!
