Team Associated RC12R5.2 User Manual
Page 6
6

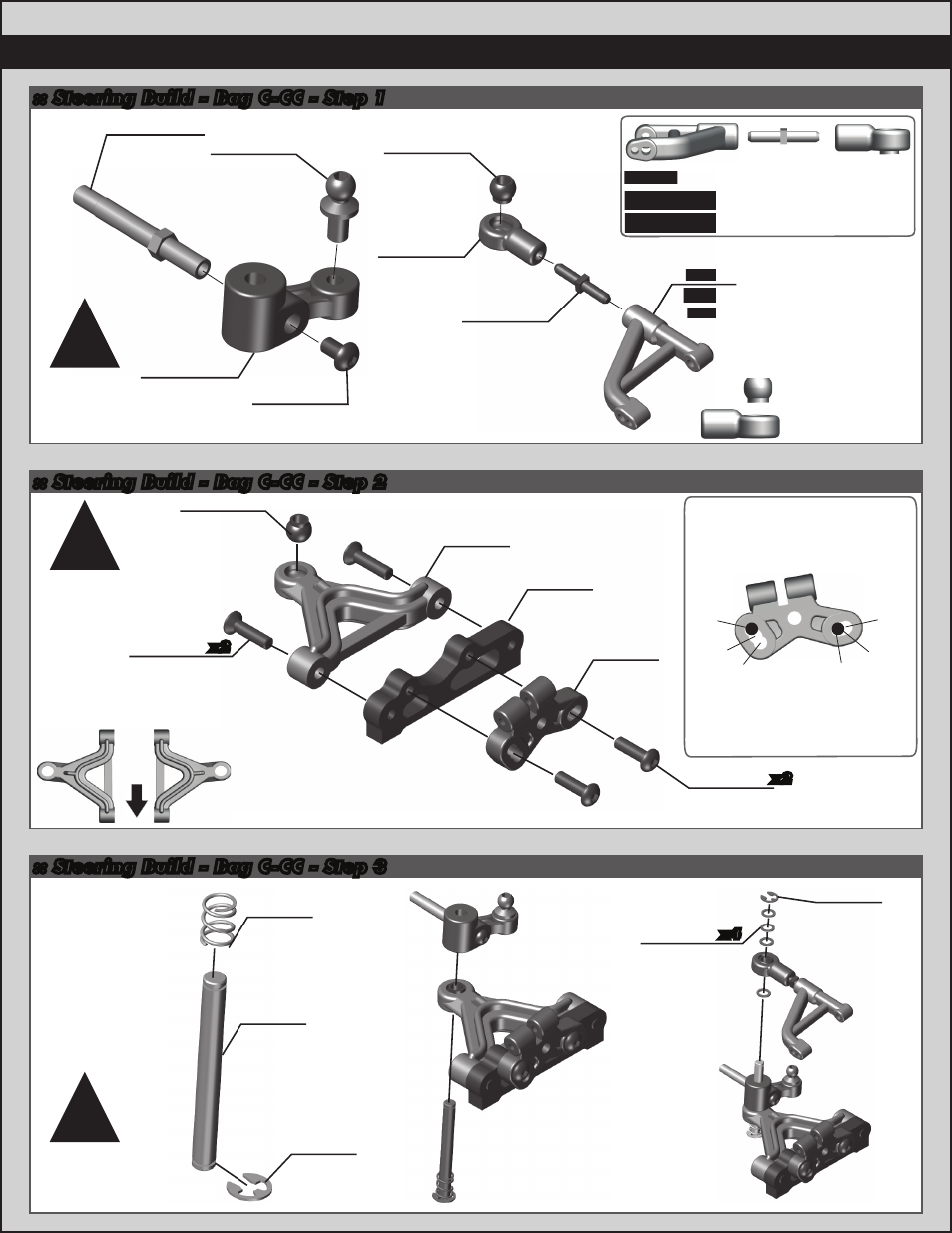

:: Steering Build - Bag C-CC - Step 1
:: Steering Build - Bag C-CC - Step 2
:: Steering Build - Bag C-CC - Step 3
25203
M3x12mm
fhcs
8425
Shim
4621
Upper
arms
4706
Lower
arms
4705
Front
bulkhead
4626
Upper
arm
mount
4113
Spring
(0.020”)
4403
Grooved
hinge
pin
6299
E-clip
6299
E-clip
25211
M3x10mm
bhcs
4673
M2.5x4mm
bhcs
4627
Front axle
4626
Steering
block
(left, right)
x2
x4
x2
Note:
eyelet offset position relative
to the upper suspension arm
Build left
and right
sides
Build left
and right
sides
Build left
and right
sides
!
!
!
Note:
eyelet offset
position to
the pivot ball
Note:
lower suspension
arm orientation
Front
of
car
RF
LF
31280
Ballstud
short, 5mm
8417
Pivot ball
8417
Pivot ball
4622
Upper arm
eyelet
1410
FT blue
titanium
turnbuckle
(.630”)
Note:
10° is the
standard position
Upper Suspension
Mount Active
Caster Settings
10°
10°
5°
5°
0°
0°
