Team Associated RC12R5.2 - Manual (Page 10)

10

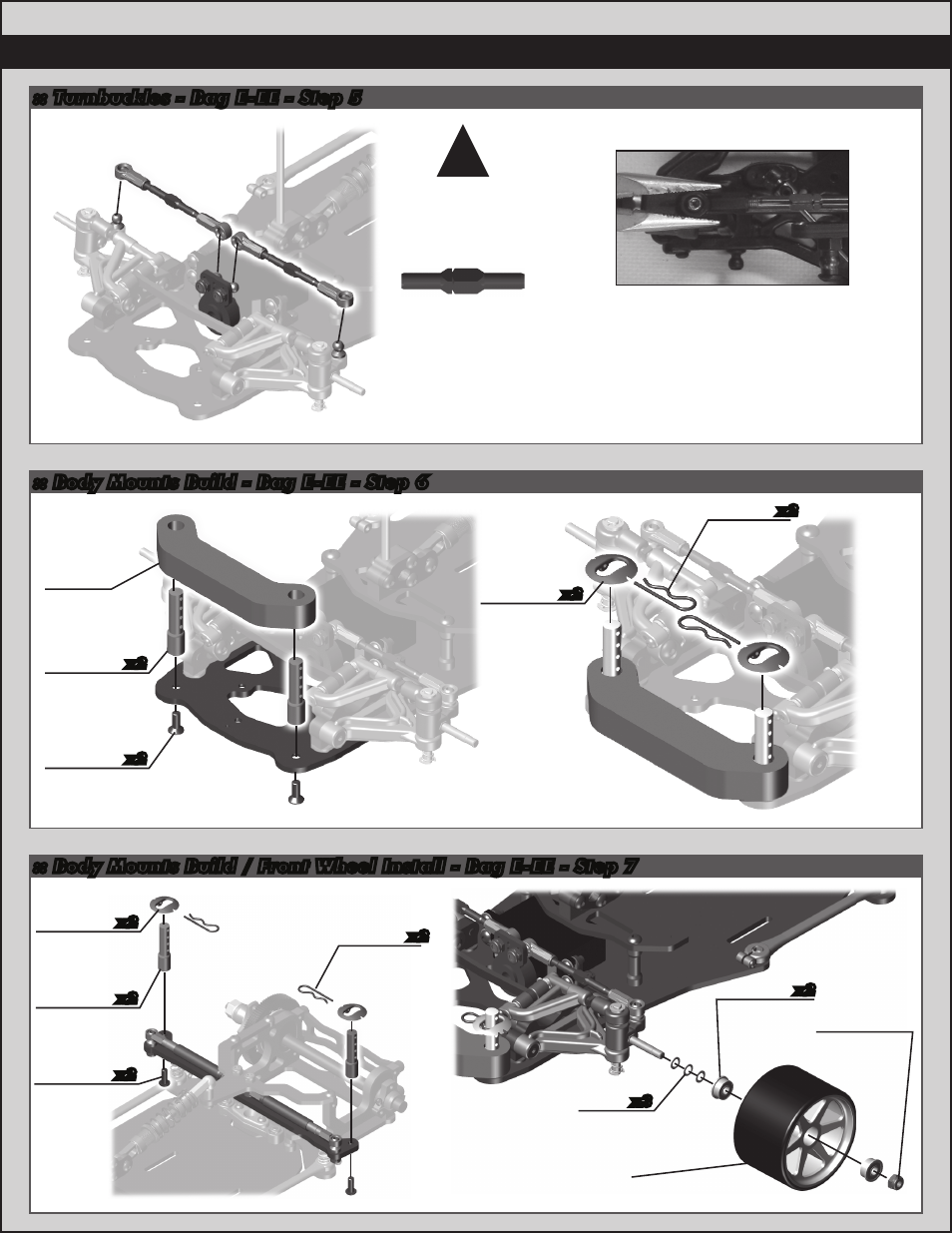

:: Turnbuckles - Bag E-EE - Step 5
:: Body Mounts Build - Bag E-EE - Step 6
:: Body Mounts Build / Front Wheel Install - Bag E-EE - Step 7
It is important that the turnbuckle eyelets move freely
once snapped on to the ballstud. If the fit is too tight,
the car handling will be inconsistent. To check, grab
turnbuckle eyelet with fingers and rotate the cup. If
there is resistance, lightly squeeze ball cup with needle
nose pliers as shown and test again. It is important
that the ball cup be snapped onto the ballstud before
squeezing with needle nose pliers. Be sure to check
and adjust the fit for each ball cup that is installed.
!
Orient the notch
to the left
throughout the car.
The notch indicates
which end has the left
hand threads!
25201
M3x8mm
fhcs
31532
M3x8mm
bhcs
4535
Body posts
4535
Body posts
3897
Pivoting
body mount
3897
Pivoting
body mount
8425
Shim
31550
M3x0.5mm
lock nut
(blue)
4653
Foam
bumper
x2
x2
x2
x2
x2
x2
x3
1736
Body clip
1736
Body clip
3655
1/8 x 5/16
flanged
bearing
x2
x2
x2
Wheels/
Tires not
included
