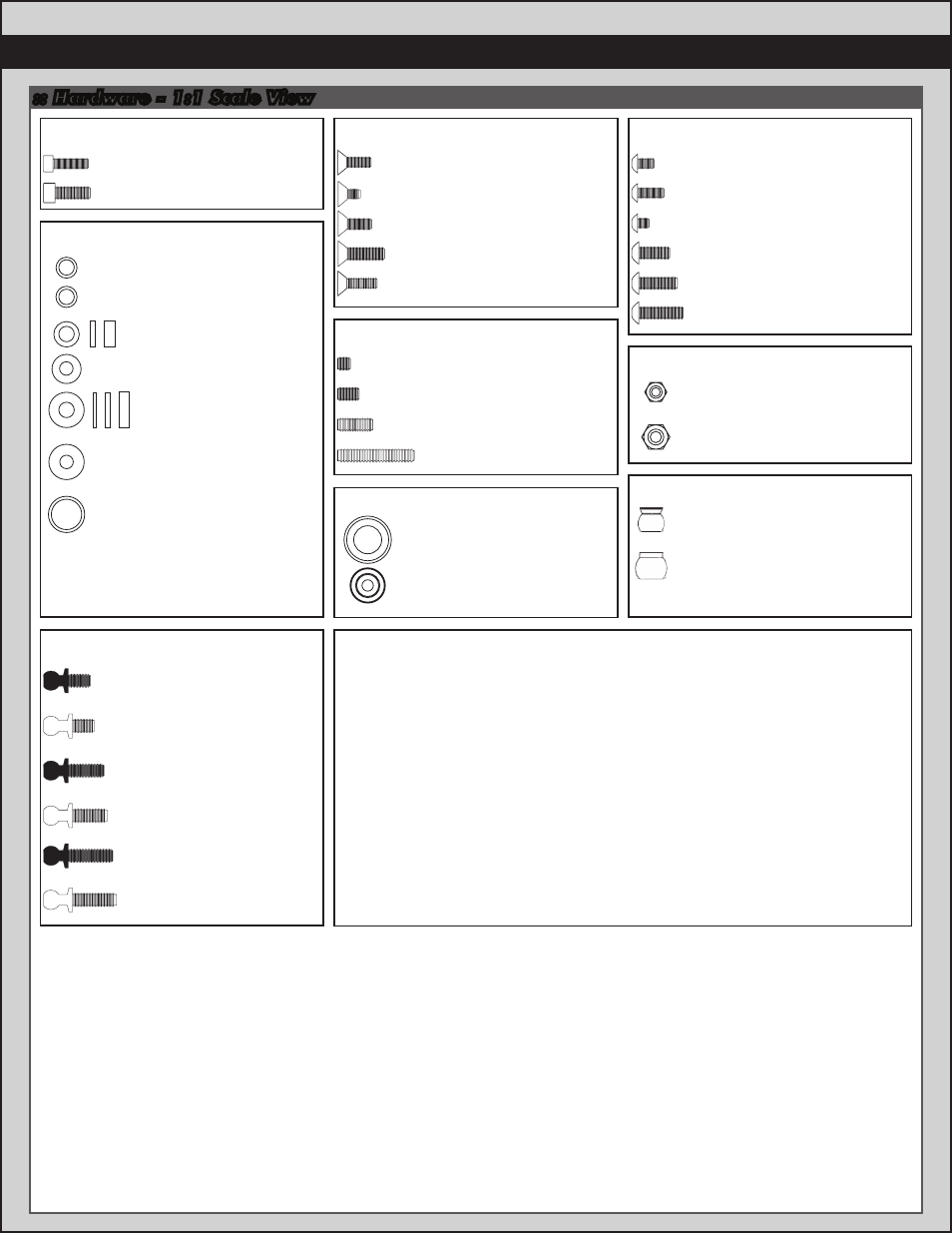

:: Hardware - 1:1 Scale View
Notes:
Ball Bearings
Rear Axle Bearing (897)
.250 x .375 x .125
Front Wheel Bearing (3655)
.125 x .313
.030 Washer (9630)
Kingpin SHim (8425)
Blue Aluminum Shims
1mm, 2mm (31286)
Gold Washer (7337)
Bulkhead Shim (4617)
0.5mm, 1mm, 2mm
T-Plate Spacers (4650)
Rear Axle Shim
.005” (4554)
Shims and Washers
M2.5 Locknut (4676)
M3 Locknut (31550)
Nuts (lock/plain)
Socket Head (shcs)
2-56x5/16” (4568)
4-40x1/4” (6284)
Setscrew
3x2.5mm (31500)
3x5mm (89219)
3x8mm (4670)
3x16mm (4689)
Hard Anodized Pivot Ball (4637)
Plastic Pivot Ball (8417)
Pivot Balls
2.5x6mm (4675)
3x5mm (31540)
3x8mm (25201)
3x10mm (25202)
2-56x3/8 (31125)
Flat Head (fhcs)
2x4mm (31510)
2x6mm (4672)
2.5x4mm (4673)
3x6mm (31531)
3x8mm (31532)
3x10mm (25211)
Button Head (bhcs)
Ballstuds
Black 5mm short (31280)
(Ti Nitride 5mm short, 31288)
Silver 8mm short (31283)
(Ti Nitride 5mm long, 31291)
Black 8mm short (31281)
(Ti Nitride 8mm short, 31289)
Silver 8mm long (31284)
(Ti Nitride 8mm long, 31292)
Black 10mm short (31285)
(Ti Nitride 10mm short, 31290)
Silver 10mm long (31285)
(Ti Nitride 10mm long, 31293)
