Team Associated RC12R5.2 - Manual (Page 11)

11

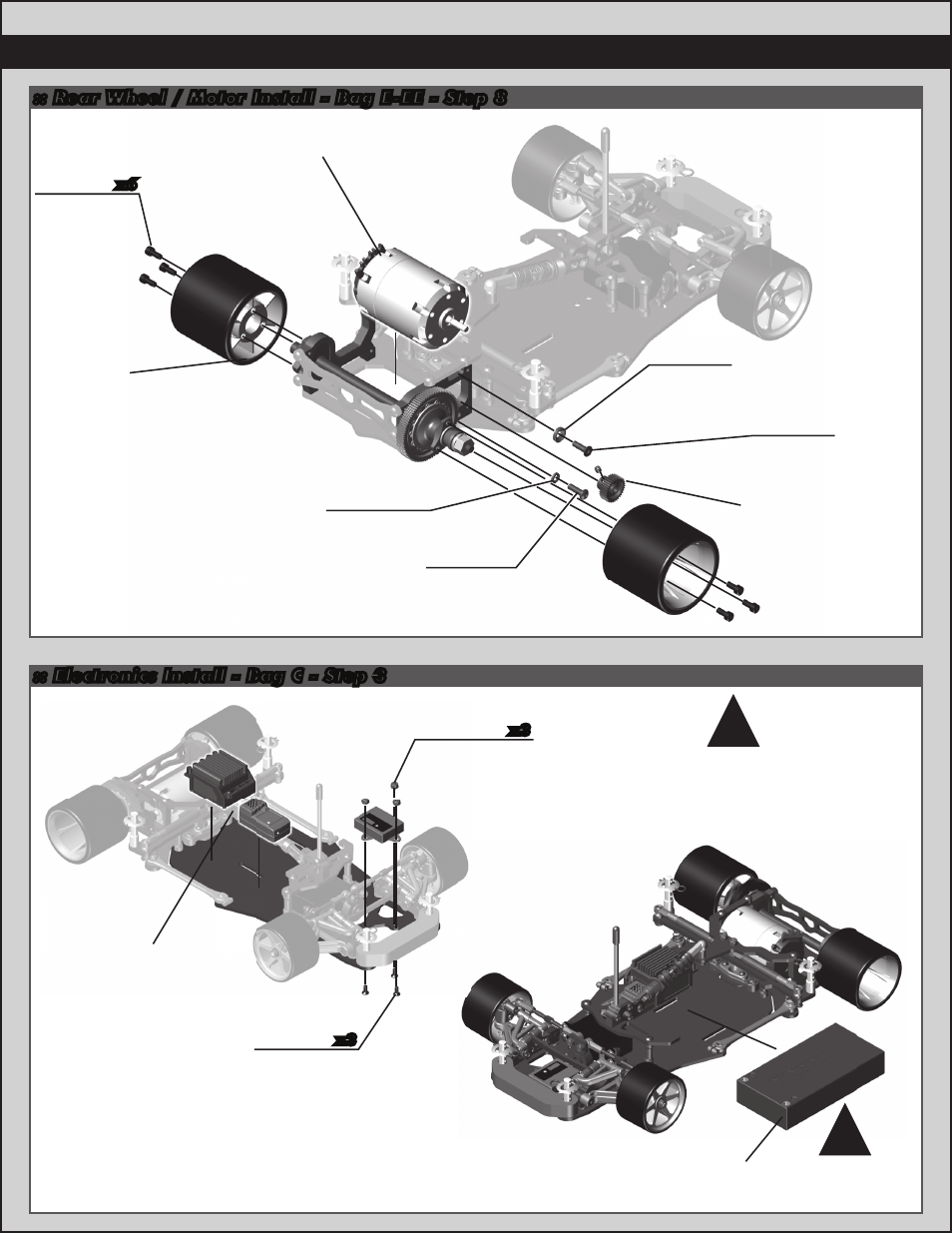

:: Rear Wheel / Motor Install - Bag E-EE - Step 8
:: Electronics Install - Bag C - Step 3
6284
4-40 x 1/4
shcs
31286
FT ballstud
washer
(1mm) 25211
M3x10mm
bhcs
x6
89229
FT blue
countersunk
washer
25202
M3x10mm
fhcs
Pinion/setscrew
not included
Wheels/
Tires not
included
Motor not
included
Battery not
included
ESC/Receiver/
Transponder
not included
4675
M2.5x6mm
fhcs
x3
4676
M2.5x0.45mm
lock nut
x3
Remove three BHCS (#31530, see page 10) from top
plate standoffs and move top plate to install battery.
Key top plate around battery and replace three BHCS to
secure battery after taping to chassis with battery tape.
!
!
