FPM-8192V/8232V User Manual 20
3.7.1 Position Item Menu

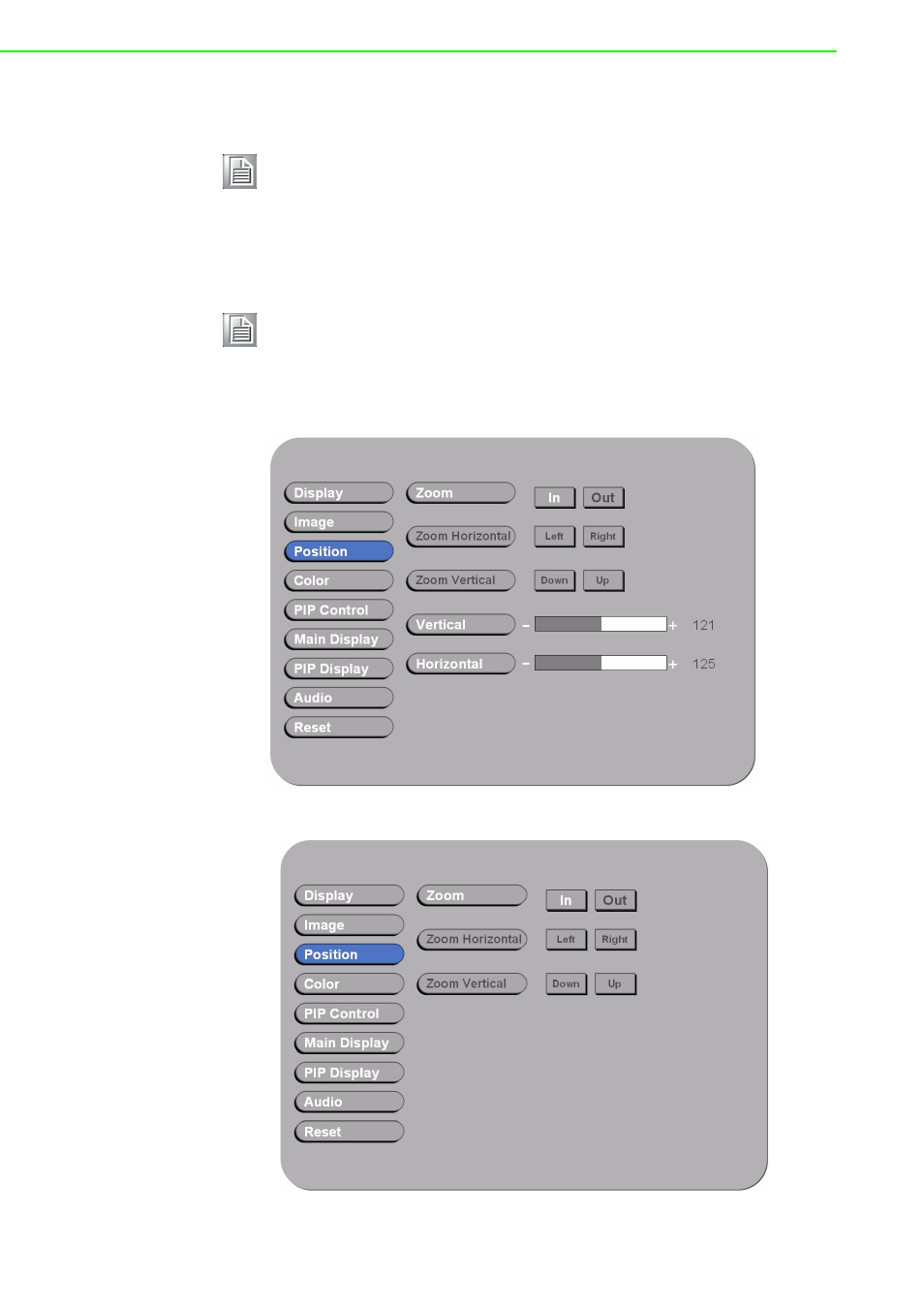

Figure 3.7 Position Item Menu (VGA)
Figure 3.8 Position Item Menu (DVI, Composite, S-Video)
Note! For Scaling:
1. In 1:1 mode, the input image is centered on the screen. In Fill mode,
the input image is stretched / compressed to fill the available display
area.
2. In Aspect mode, the input image is stretched / compressed by the
same horizontal and vertical factor.
Note! For Auto-Adjust:
The only button available is “SELECT”. Note this may change the values
of Phase and Clock, and there is no ‘undo’ feature.
