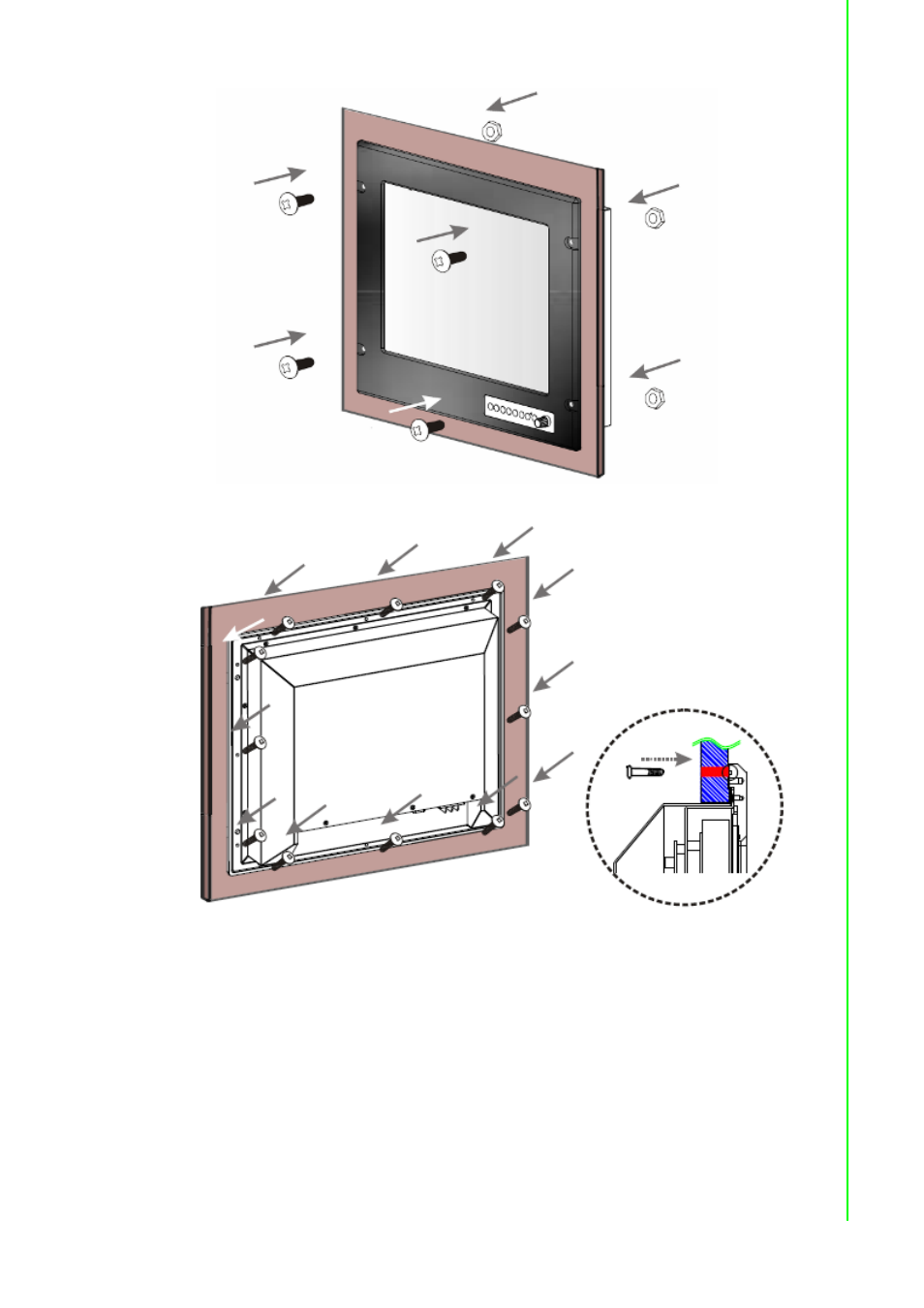

Use M4x 15mm bolts to drill through the fixture into the mounting holes on the rear side of IP65 front bezel.(The quantity of mounting screws based on draw- ing)
3.
Check the finished mounting concept.
