FPM-8192V/8232V User Manual 8
2.1 General Installation
The Marine Bridge System Display can be applied for several different installation
methods. Including panel (flush) mounting, bracket mounting, ceiling / wall mount-
ing…etc. For panel (flush) mounting is normally for a ship’s wheelhouse use, it’s easy
to follow few steps to fix the display product in customer’s fixture.

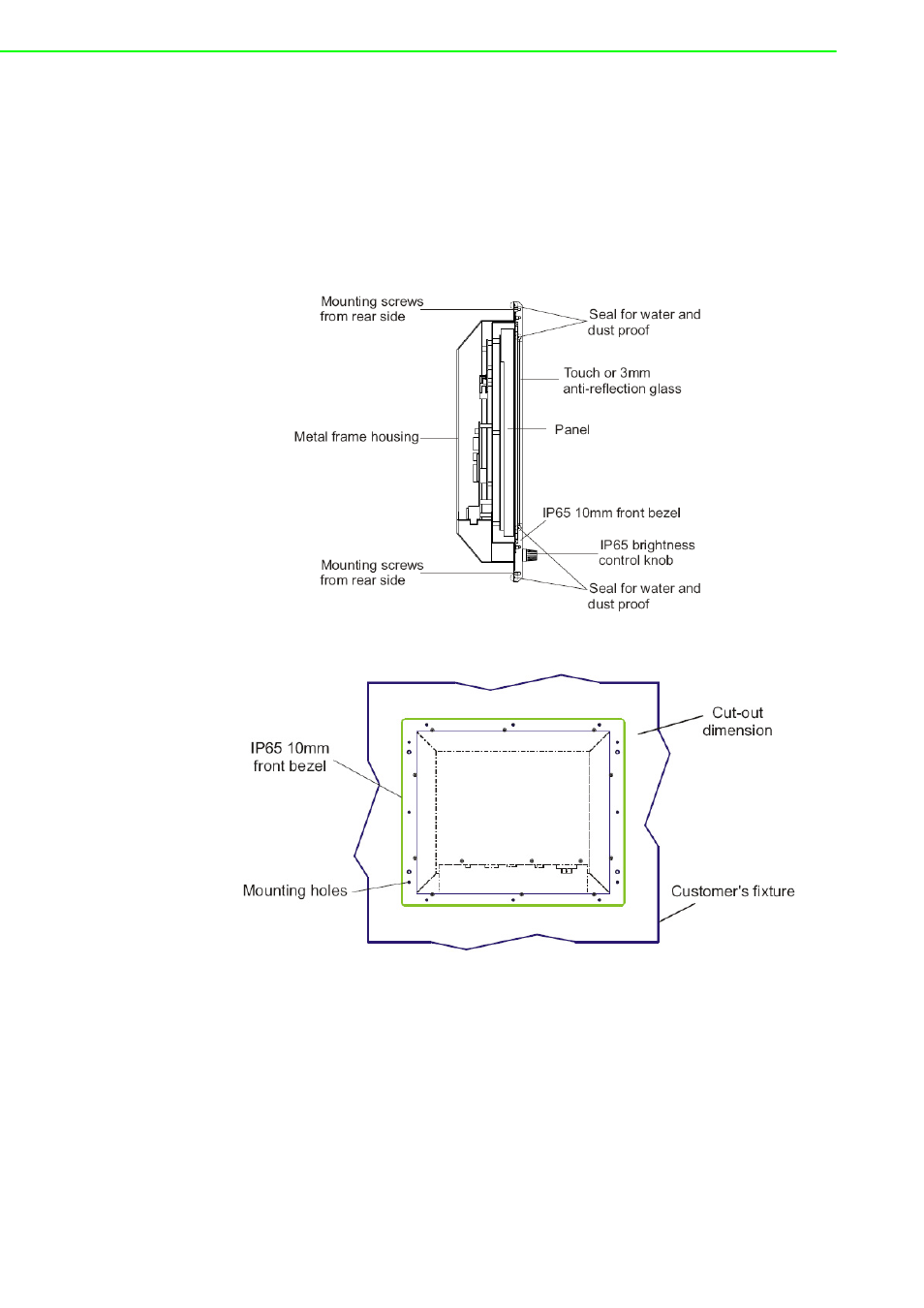

Check the mechanical and mounting concept as below first. The fixture cut-out
dimension and mounting holes based on drawing.
1. Put the marine product on the fixture (console) from the front, and screw by four
M6 x 30 mm black bolts with nuts.
