19 FPM-8192V/8232V User Manual
Chapter 3
O
perating
the
LCD
Display

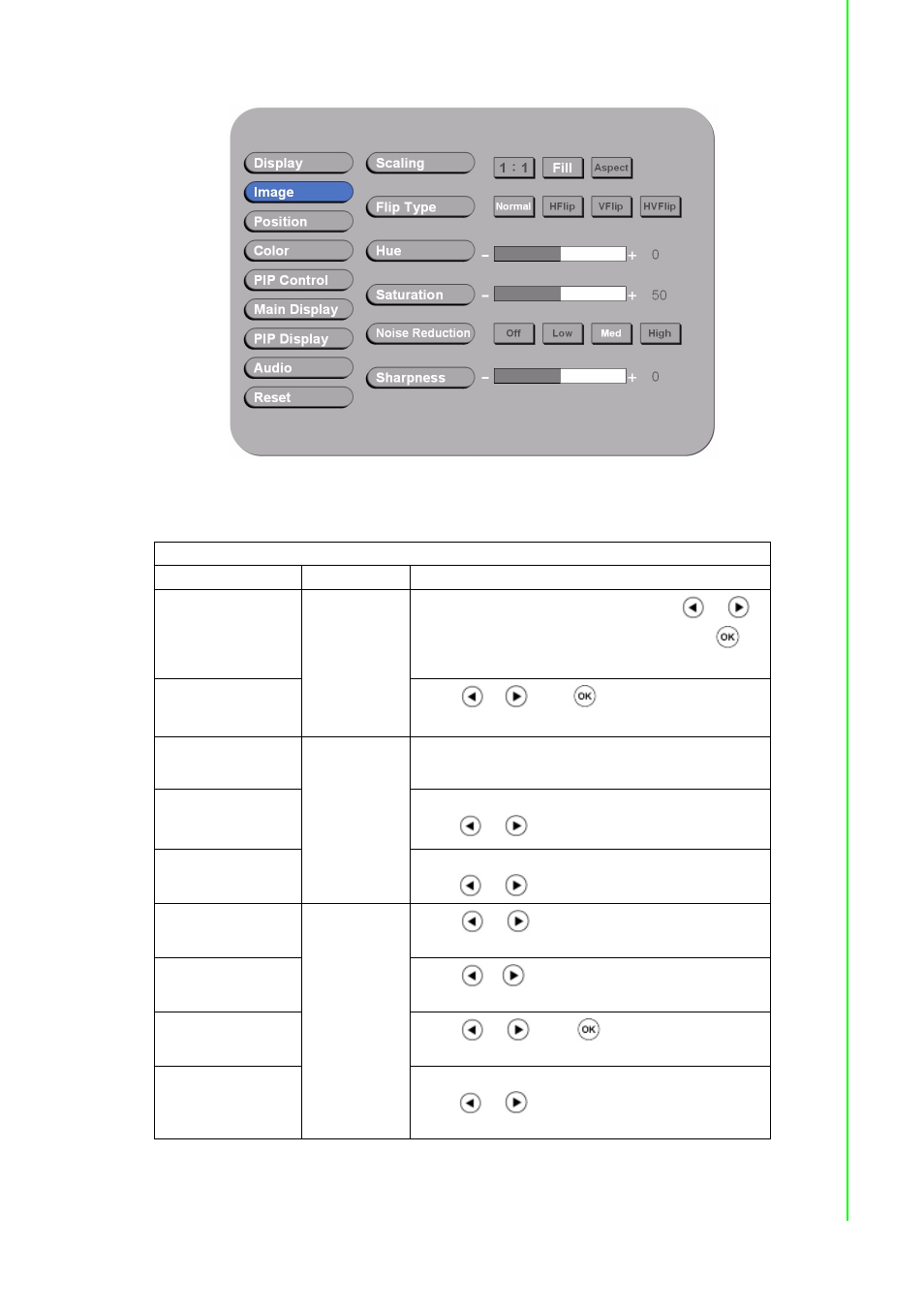

Figure 3.6 Image Item Menu (Composite, S-Video)
Image Item Menu
Menu
Input Source Description and Usage
Scaling** VGA
DVI
Composite S-
Video
Change the scaling mode by using the“ ” / “ ”
buttons to select 1:1, Fill or aspect. Press “ “ to
activate the selected Scaling mode.
Flip Type
Using “ ” / “ ” and “ “ to select the display flip
for Normal, HFlip, VFlip, or HVFlip mode.
Auto-Adjust** VGA Only Initiate this to have the monitor logic to choose the
best settings for the current input signal.
Phase Adjust Phase to optimize the display quality by
using “ ” / “ ” to change the value.
Clock Select Clock to adjust the horizontal screen size by
using “ ” / “ ” to change the value.
Hue Composite
and S-Video
Only
Press “ ” / “ ” to select Hue to obtain the
desired color settings.
Saturation
Press “ ” / “” to select Saturation to adjust
the optimal color degree level.
Noise Reduction
Using “ ” / “ ” and “ “ to select the Noise
Reduction for Off, Low, Mid, and High mode.
Sharpness The Sharpness of the image may be optimized by
using “ ” / “ ” to change the value of the slider
bar.
