11 FPM-8192V/8232V User Manual
Chapter 2
Installation
2.2 Installation Notice

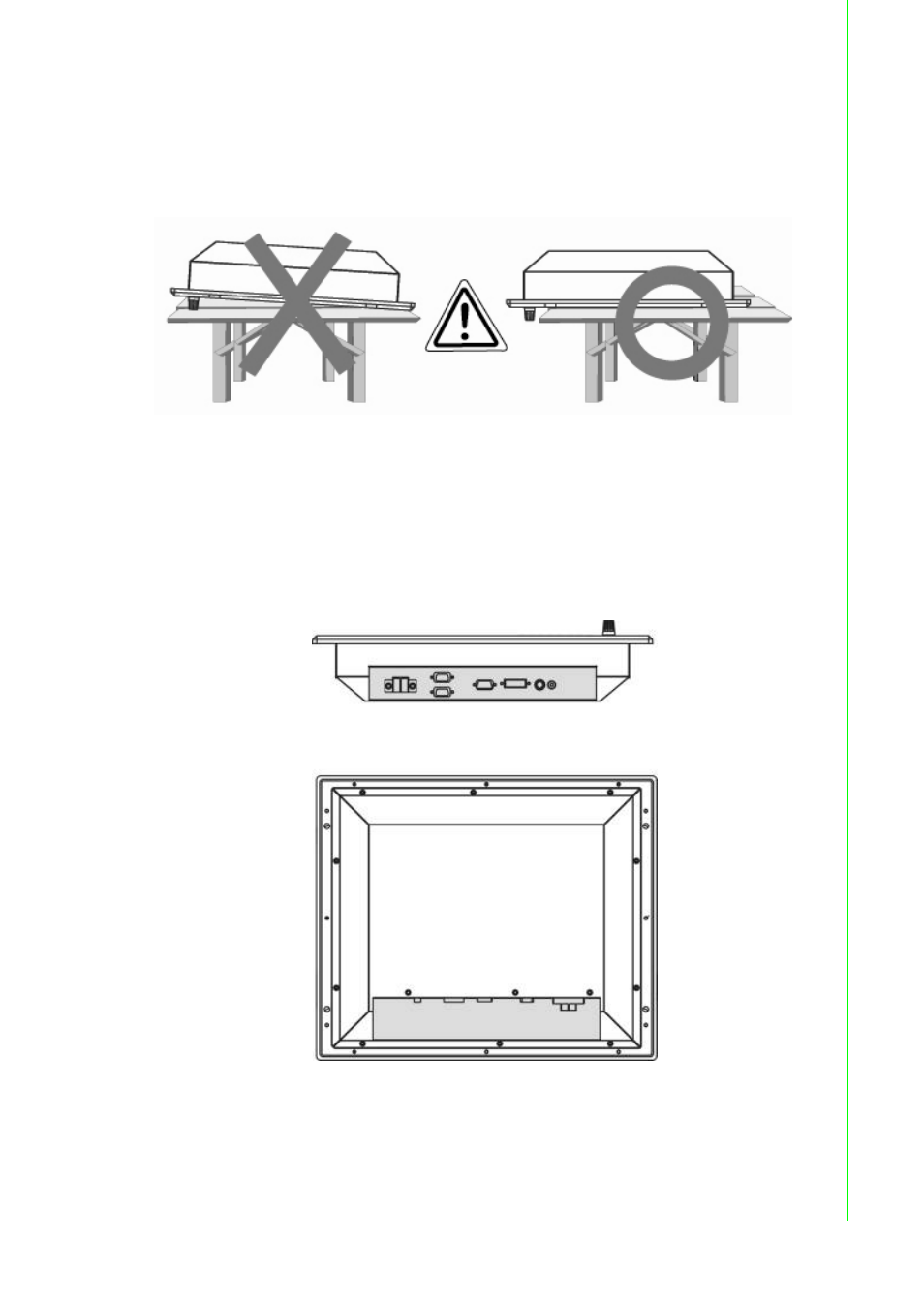

2.2.1 Brightness Control Knob Precaution
The dimming brightness control knob may be damaged by wrong placement. Please
make sure the right way to protect the knob.
2.2.2 Cable Connection Precaution
Make sure to use qualified shielded signal cable to connect to Marine products.
These cables including RGB, DVI, RS232, LAN, and USB cable should be connected
inside the area as marked below. For DC power connection, please make sure the
power cable is tightly connected by two screws of the terminal block.
