LoadMaster for UCS Installation
Guide for LoadMaster for UCS
Installation

Installation Guide

4. Select LAN Connectivity Policies.

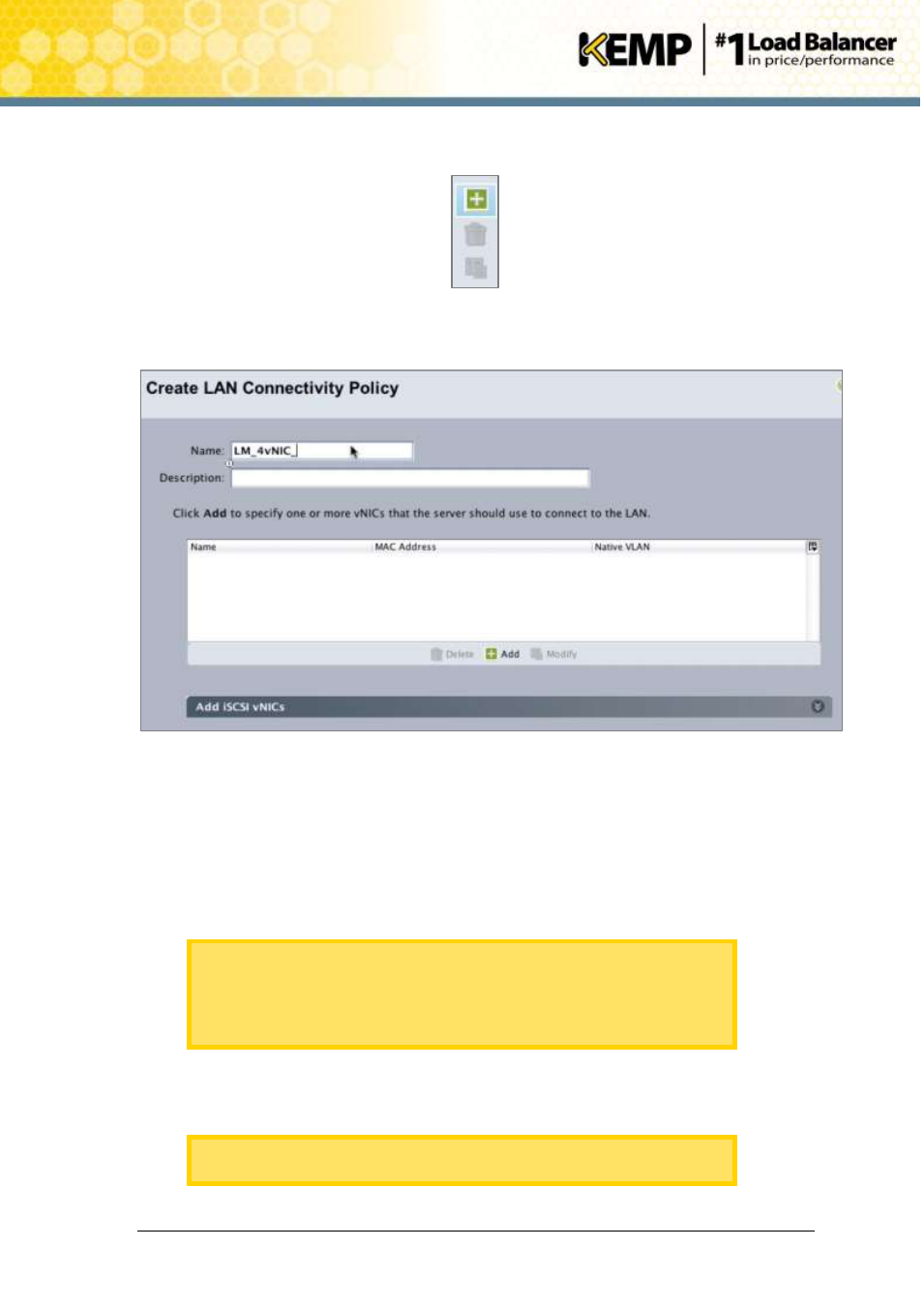

Figure 2-9: Create

5. Click the plus button on the right to create a new policy.

Figure 2-10: Create LAN Connectivity Policy

6. Enter a recognizable Name, for example LM_4vNIC.
7. Enter a Description.
8. Click Add to specify a vNIC.
9. Enter a Name for the vNIC, for example eth 0.
10. Select the relevant option in the MAC Address Assignment drop-down list.
11. Select the relevant clients to be on Fabric A.

To maximize input and output it is best to divide the number of client

VLANs and server VLANs between Fabric A and Fabric B. For example,

if there are 2 clients VLANs – one should be on Fabric A and the other

should be on Fabric B. Similarly, if there are 2 server VLANs – one should

be on A and the other on B.

12. Select a Native VLAN.
13. Set the MTU to 9000.

The MTU must have the same value as it does in the Priority of the selected

QoS Policy.
