Parts list

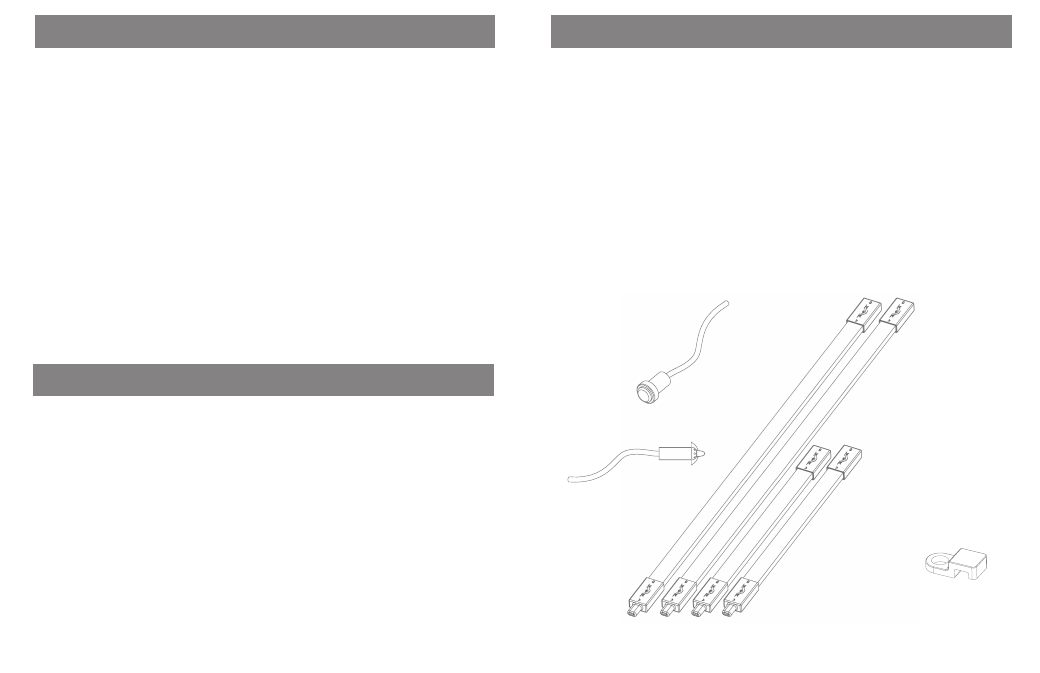

Two 48.5” LED lightbars.
Two 25” LED lightbars.
Power harness with LED indicator, switch and fuse.
Self tapping screws, 12pcs.
Tie straps, 12pcs.
Mounting clamps, 12pcs.
Installation manual.
LED Lightbars
1.
2.
3.
4.
5.
6.
7.
Items not show to scale
2
Mounting clamp
Push button switch
LED indicator
Operation of ULX210 Continued
There are three modes of operation:
Mode 1 - Color Wash
Mode 2 - Strobe / Breath
Mode 3 - Preset Colors
Refer to “Mode Features” on page 11 for details on features for
each mode.
9
Turning system “OFF”
To turn the system “off” quickly, push and hold button until the
LED indicator light turn “off”. This will take a few seconds only.
When connected to an alarm system or interior light source:
System will activate blue leds each time a +12v trigger is applied to the orange
auxiliary input wire. This function only operates when the ignition is “off ”.
Auxiliary lighting
