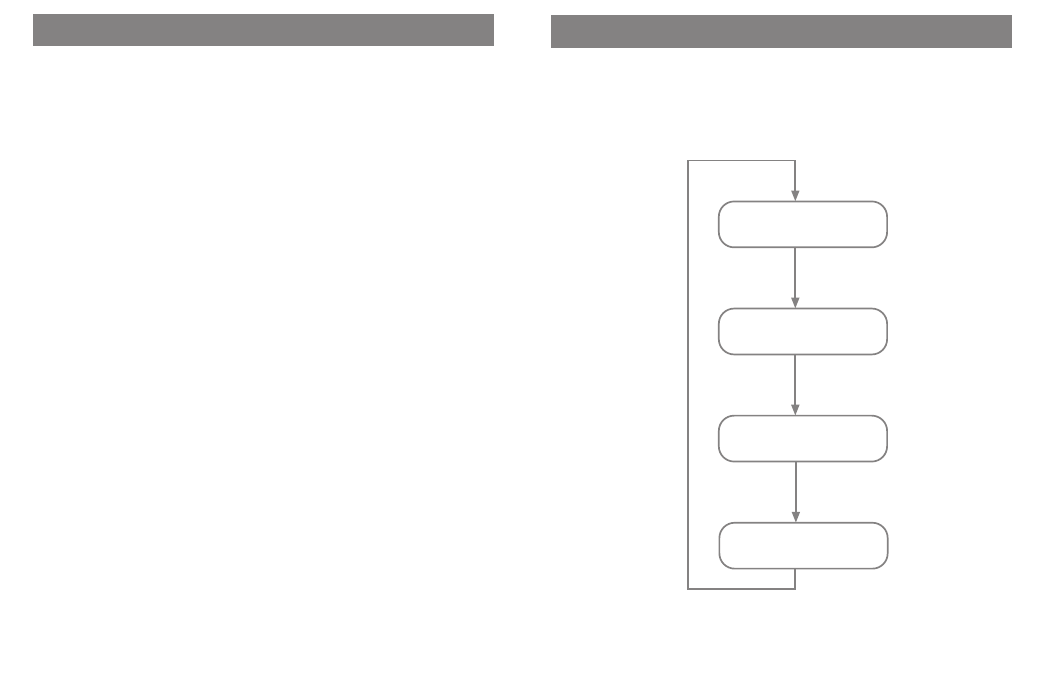

Mode Operation flow chart
“Push and Hold”
to change modes
OFF
MODE 1
COLOR WASH
MODE 2
STROBE / BREATHING
10
Technical Specifications
Colors: 1000
Patterns: 1 Strobe, 1 breathing
Auto Color Change, 9 preset colors
Auxiliary input for trigger with +12v
Current draw - 40 ma to 2.7 amps depending on mode, color or
pattern
LED LightBar:
Long LED LightBar length is 48.5” +/- 0.5”
Short LED LightBar length is 25” +/- 0.5”
Wires:
Master Long Light bars have 12’ of cable to indicator and 6‘ of cable
to connect to slave light bars
Slave Light bars have 6’ of cable on either end
Electrical specifications:
LED’s:
Red - TS ALINGAP, 70ma, 180 degree
Blue - INGAN, 50ma, 180 degree
Green - INGAN, 50ma, 180 degree
1
MODE 3
PRESET COLORS
