Unpacking
Open the box and carefully remove the product and all of the included parts from the packaging. Identify the
following parts for each AudioBRIDGE:
EasyUSB AudioBRIDGE:
999-8536-000: EasyUSB AudioBRIDGE - North America
999-8536-001: EasyUSB AudioBRIDGE - International*
Pack-out includes:
 One (1) EasyUSB AudioBRIDGE
 One (1) 18 VDC, 1.0 Amp Switching Power Supply with AC Clips*
 One (1) 6’ (1.83m) USB Type-A to Type-B Cable (Black)
 One (1) 998-1001-232 Control Adapter (DE-9-F to RJ-45-F) for serial updating or external control systems
 Four (4) Rubber Feet (used if AudioBRIDGE is not rack mounted
* International AudioBRIDGE Kits get Euro, UK and AUS AC Clips.
Equipment Descriptions and Call-outs

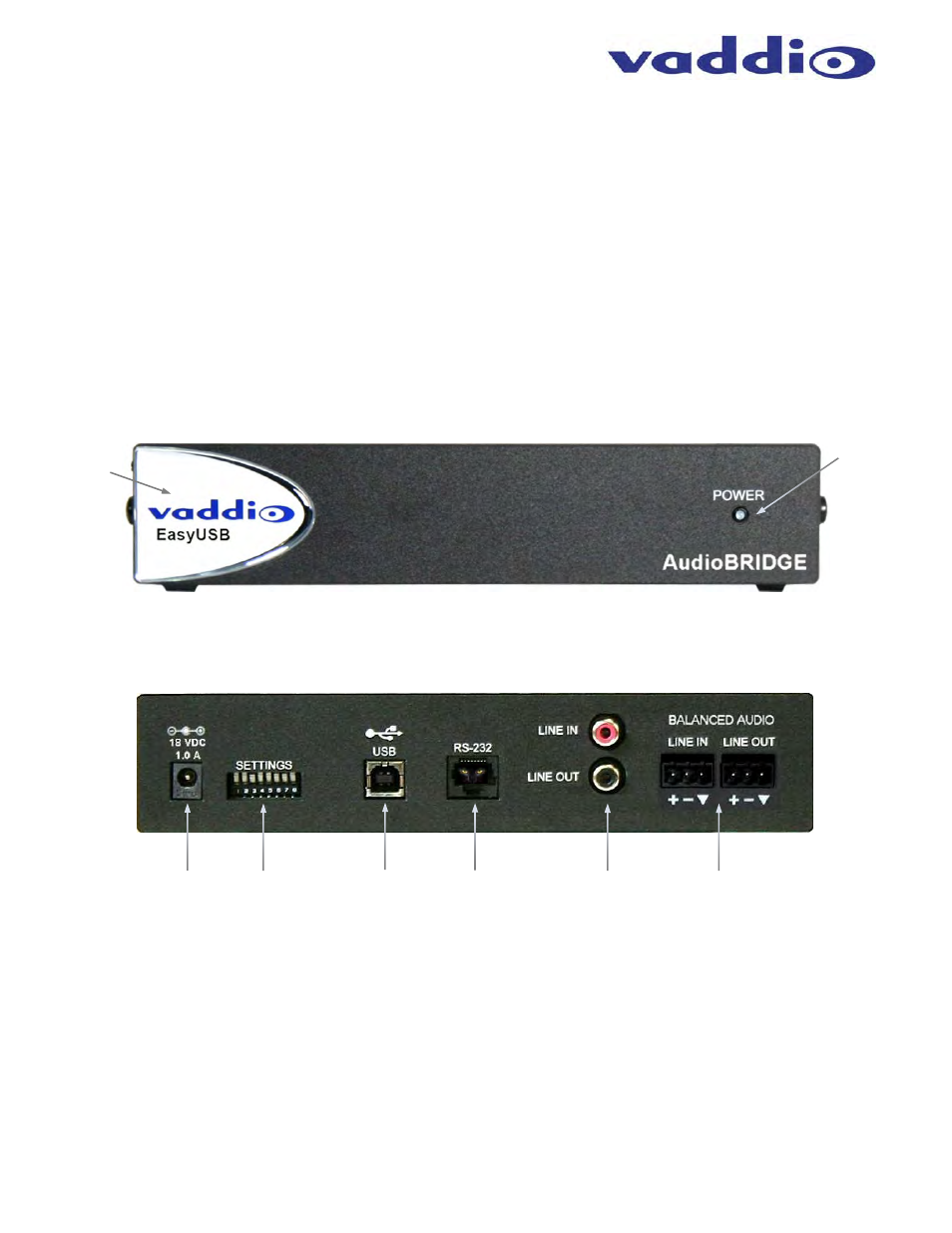

Image: EasyUSB AudioBRIDGE Front Panel
1) Power LED: Blue LED indicates system is powered and operational. Flashing blue indicates a system error.
2) RCLB: Really cool logo badge
Image: EasyUSB AudioBRIDGE Rear Panel Connections
1) Power Connector: 5.5mm OD x 2.5mm ID, positive center coaxial connector for 18 VDC, 1.0 Amp
Switching Power Supply.
2) Settings: 8-position dip switches for configuration of advanced operational modes.
3) USB: USB Type B-Female connector for interface with Host PC. This connector allows for Streaming audio
to and from the EasyUSB AudioBRIDGE. It emulates a standard USB Audio Class (UAC) device and
eliminates need for customer drivers.
4) RS-232: RJ-45 connector with RS-232 functionality (see appendix for pin-out) .Control port for use with third
party control systems (AMX and Crestron). This port supports Vaddio ASCII command protocol.
5) Unbalanced Line Input & Line Output: Unbalanced RCA line level input and output port for connection to
external A/V devices such as video conferencing codec, external amplifier, or recorder. It supports a nominal
level of -10dBV.
6) Balanced Line Input & Line Output: Balanced line level input and output port on 3-pin Euro terminal
connectors for interface with external A/V equipment. It supports a nominal level of +4dBu.
