CeilingVIEW HD HideAway Manual, Document Number 342-0289 Rev. B Page 4 of 24
Quick-Connect
DVI/HDMI-SR
Contact Pair for
lift up/down
YPbPr
Note: A Vaddio
ClearVIEW HD-18AW
PTZ Camera is
hidden inside the
CeilingVIEW HD
HideAway
Unpacking
Carefully remove all parts from the packaging and identify the following parts:
CeilingVIEW HD HideAway, Part Number 999-2520-000 North America includes:
 One (1) CeilingVIEW HD HideAway Motorized Back Box Assembly
 One (1) White Trim Ring Assembly with five (5) white screws (6/32” x 1/2” Phillips flat head screws)
 One (1) Ceiling Tile Brace
 One (1) Lower Décor Plate
 One (1) CeilingVIEW HD HideAway Power Interface (998-2520-002)
 One (1) PowerRite 24VDC, 2A Power Supply
 One (1) Power Cord Set for North America
 One (1) RJ-45 to DB9 EZ Camera Control Adapter (998-1001-232)
 Installation and User Guide (342-0289)
CeilingVIEW HD HideAway, Part Number 999-2520-001 International includes:
 One (1) CeilingVIEW HD HideAway Motorized Back Box Assembly
 One (1) White Trim Ring Assembly with five (5) white screws (6/32” x 1/2” Phillips flat head screws)
 One (1) Ceiling Tile Brace
 One (1) Lower Décor Plate
 One (1) CeilingVIEW HD HideAway Power Interface (998-2520-002)
 One (1) PowerRite 24VDC, 2A Power Supply
 One (1) Euro Power Cord
 One (1) UK Power Cord
 One (1) RJ-45 to DB9 EZ Camera Control Adapter (998-1001-232)
 Installation and User Guide (342-0289)

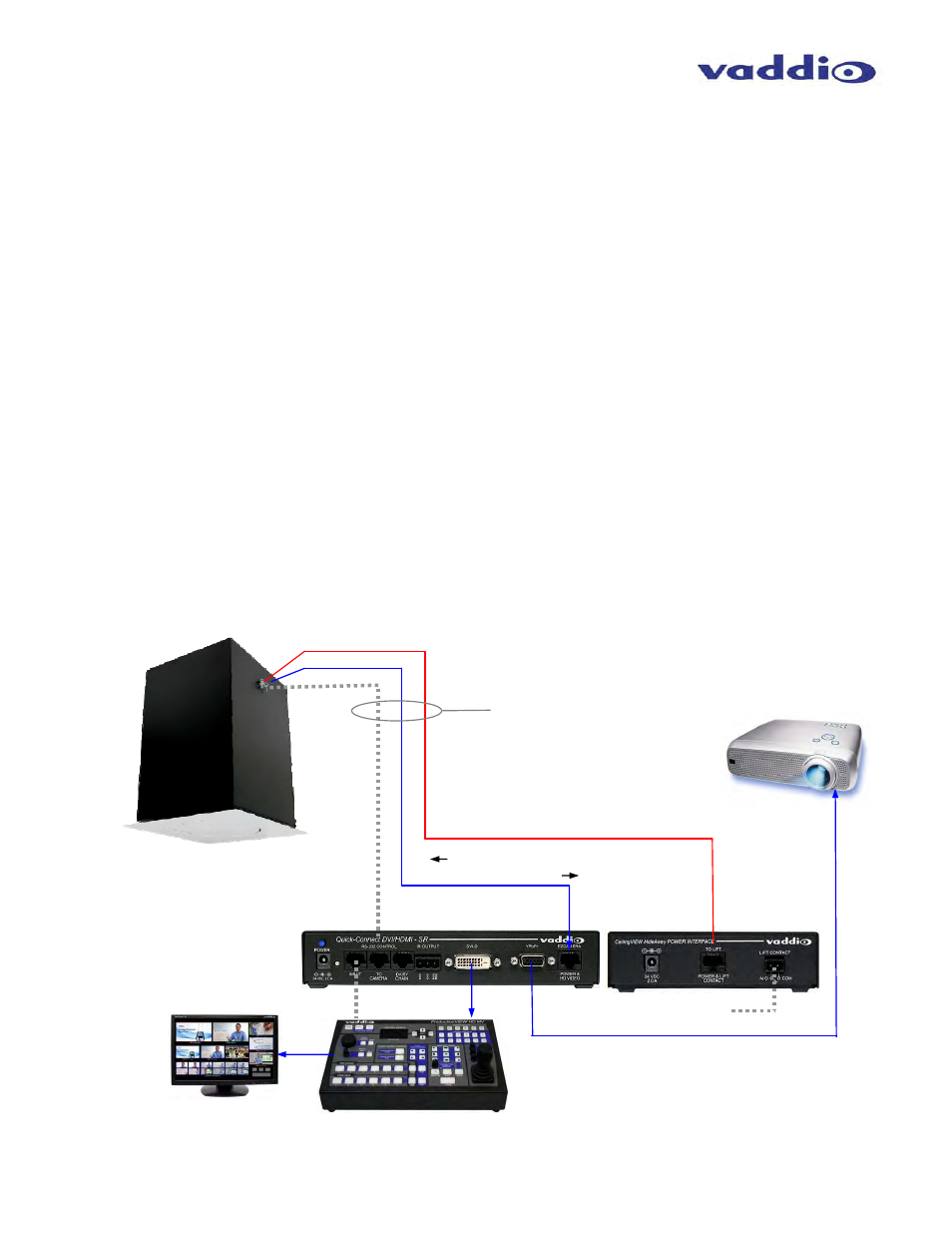

Figure 2: System Configuration with CeilingVIEW HD HideAway motorized camera lift, CeilingVIEW HD HideAway Power Interface, HD-
18AW PTZ Camera, Quick-Connect DVI/HDMI SR, ProductionVIEW HD MV with TeleTouch Touch Screen 22” Monitor and Projector.
Power to Camera,
HD Video Returned
Lift Power and Contact Closure
CeilingVIEW HD
HideAway
Power Interface
Camera
Control
RS-232
3-LCD Projector
Three (3) Cat-5e Cables
Up to 100’ (30.4m)
¾” Conduit
Connector
RS-232
ProductionVIEW HD MV
TeleTouch 22”
Touch Screen
Monitor DVI-D YPbPr
CeilingVIEW HD
HideAway
Motorized Lift
System
