1.3.3.3 Gas Line Connection
Connect the cooker to the gas supply line with a connector
that complies with the Standard for Connectors for
Movable Gas Appliances, ANSI Z21.69/CAN-CGA-
6.16.
If you are installing a cooker with casters, you must use
a quick disconnect device that complies with Standard
for Quick Disconnect Devices for Use with Gas Fuels,
ANSI Z21.41-1989. In Canada refer to CAN 1 6.9 M 79.

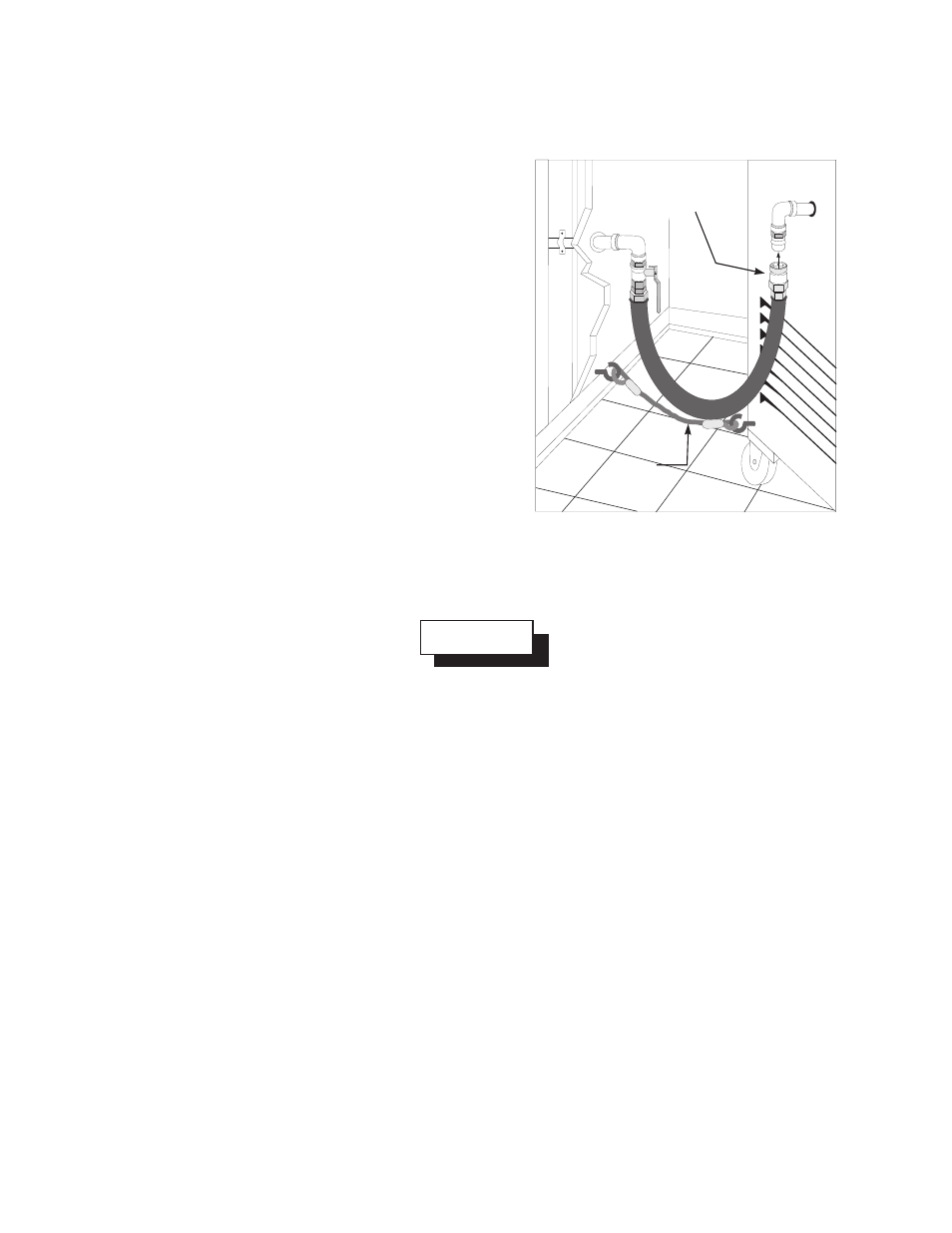

The gas line connection should be similar to the gas line
connection shown in the adjoining illustration.
A means of limiting the movement of a cooker with
casters must be installed. The restraining device should
be attached to the cooker on the back panel as shown in
the illustration, thus preventing the gas line connector or
the quick disconnect from being strained. The quick
disconnect, hose, and restraining device can be obtained from your dealer.
1.3.4 Electrical Connection
WARNING
The cooker must be electrically grounded in accordance with local
codes. If local codes do not apply, follow the requirements of National
Code ANSI/NFPA 70-1990.
The electrical service used by the cooker must comply with local codes. If there are no local codes
that apply, refer to the National Electrical Code (NEC) to install the service. In Canada, refer to CSA
Standard C22.1, Canadian Electrical Code, Parts 1 and 2, and/or local codes. Wiring diagrams are
provided inside the cooker on the door. The power requirements for the cooker are shown on the next
page.
The cooker is shipped with internal wiring configured to support the voltage and phase requirements
ordered. The wiring configuration can be verified by comparing the schematic supplied with the
cooker to the wiring arrangement in the cooker. Check the cooker data plate to ensure the cooker to
be installed matches the power to be supplied to it.
The gas cooker is provided with one power cord which supplies power to the cooker controls and the
basket lift. The cooker must be grounded in accordance with local code; if there is not a local code,
comply with NEC ANSI/NFPA No. 70-1990. Be sure the cooker is correctly grounded. A non-
insulated conductor may be used for the chassis to earth ground.
Strain Relief
Quick
Disconnect
