E2 SERVICE MANUAL REV D 09/12
8
14.75” 28.44”
17.17”
30.98”
27.02”
11.75”
6.85”
1.5”

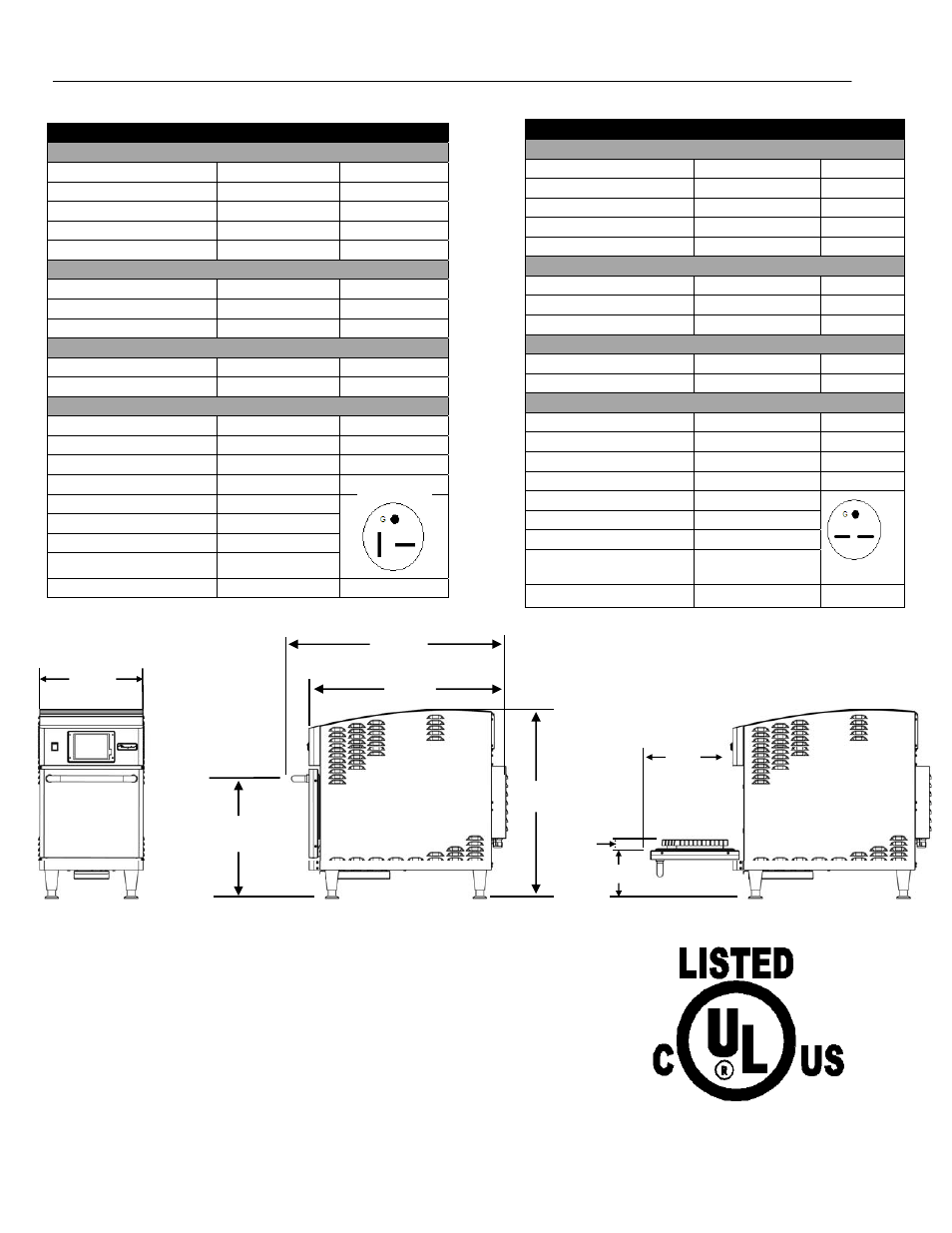

TECHNICAL SPECIFICATIONS
Specifications
EXTERIOR DIMENSIONS (per oven)
Serial Number (Rating Plate):
Serial number: YY MM SITE SERIAL
i.e. 10 06 2350 12345 (1006235012345)
Oven manufactured in June 2010 at Fort Wayne IN, production number 12345.
Model Number: MODEL CONVECTION MICROWAVE VOLTAGE HERTZ LEAD
PLUG COMMUNICATION VERSION CUSTOMER/ACCESSORY COUNTRY
i.e. e2A D X MV 6 S N U 2 GM US (e2ADXMV6SNU2GMUS) model e2A,
2200W, 1000W, 208/240V, 60Hz, 2P+GND (30A), molded Hubbell plug, USB, 2,
General Market, USA.
Eikon e2T (Twin)
Overall Size
Height (on 4” legs) 27" 686 mm
Width 31.5” 800mm
Depth (overall without handle) 28.5” 724 mm
Depth (door open 90 degrees) 40.25” 1022 mm
Weight 150 lbs. (each) 68 kg (each)
Oven Cavity Dimensions (per oven)
Height 9.6” 244 mm
Width 9.6” 244 mm
Depth 12” 305 mm
Wall Clearance (per oven)
Top 2” 50.8 mm
Sides 2” 50.8 mm
Electrical Specifications (per oven)
Phase 1 ph
Voltage 208 / 240
Frequency 60Hz
Amperage Requirement 30 amp
Plug NEMA 6-30P
Cord Length 6’
Max Power Rate 3100W
Power Output (Microwave) 1000W
Power Output (Heater) 2200W
Eikon e2
Overall Size
Height (on 4” legs) 27" 686 mm
Width 14.75” 375 mm
Depth (overall without handle) 28.5” 724 mm
Depth (door open 90 degrees) 40.25” 1022 mm
Weight 150 lbs. 68 kg
Oven Cavity Dimensions
Height 9.6” 244 mm
Width 9.6” 244 mm
Depth 12” 305 mm
Wall Clearance
Top 2” 50.8 mm
Sides 2” 50.8 mm
Electrical Specifications
Phase 1 ph
Voltage 208 / 240
Frequency 60Hz
Amperage Requirement 20 amp
Plug NEMA 6-20P
Cord Length 6’
Max Power Rate 4015W
Power Output (Microwave) 1000W
Power Output (Heater) 2200W
