WARNING:
ALLOW OVEN TO COOL AND OBSERVE AND
FOLLOW ALL SAFETY PRECAUTIONS INCLUDING
THOSE DESCRIBED UNDER THE SAFETY
REGULATIONS SECTION OF THIS MANUAL BEFORE
ATTEMPTING A SERVICE OR REPAIR .
SERVICING THE OVEN
Servicing Procedure:
1. Disconnect/isolate the oven from the power
supply.
2. Check the oven is correctly installed as described
in the Installation Instructions (Product Details
section).
3. Visually check the cleanliness/condition of the
power supply/cable/gland, oven casing, cavity
and door for signs of wear, damage, distortion
etc., if required, refer to the ‘Spares &
Replacement’ section.
4. Complete an ‘Earth/Insulation test’ (Testing
Components section) on the oven before
switching on.
5. Check the display for Error messages, if an Error
is shown, refer to ‘Errors & Diagnostics’
(Servicing section).
6. Note: If a Firmware update is required, follow the
instructions under ‘Firmware Updates’ (Servicing
section) before continuing with the service
procedure.

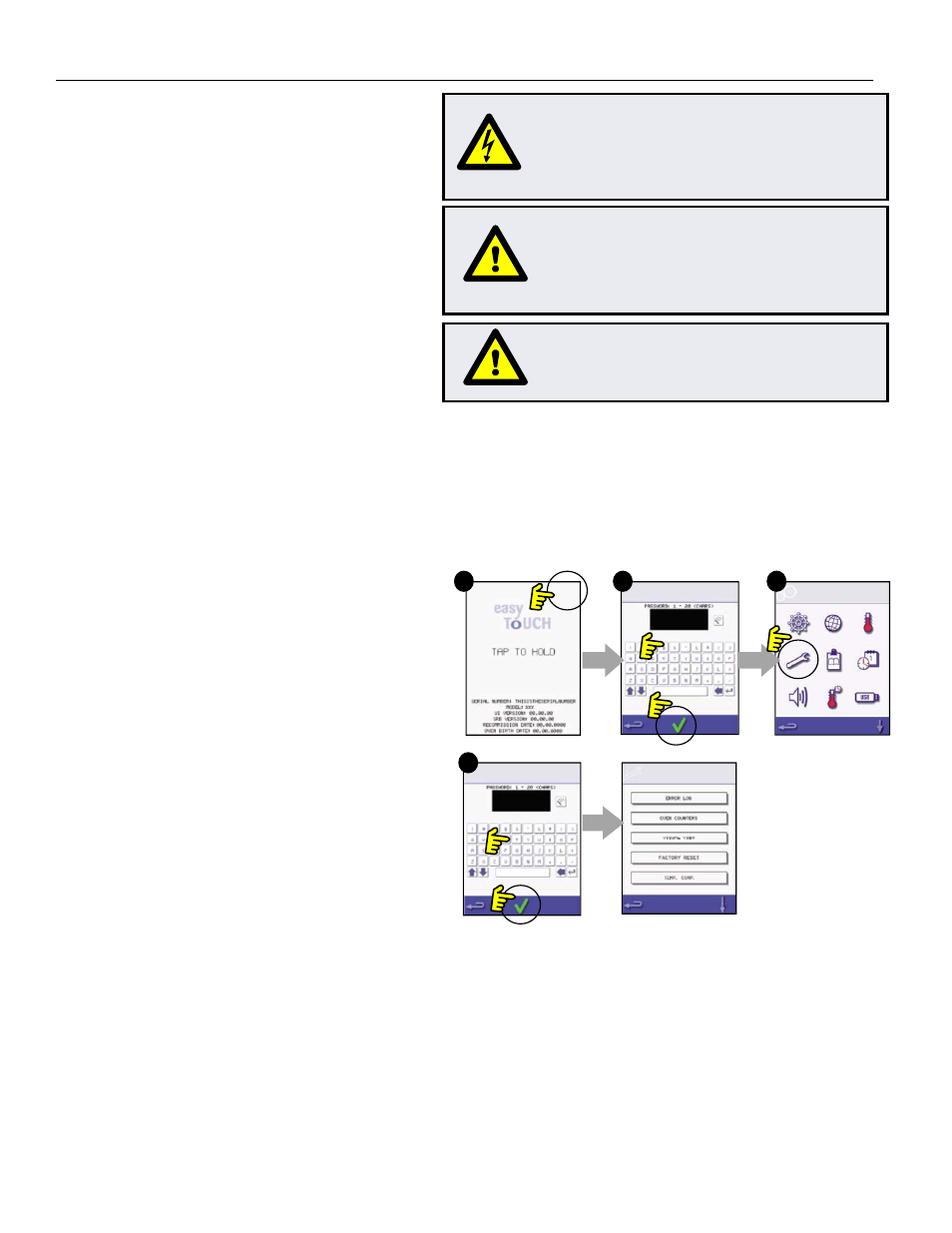

Enter Service mode:
1 On start up, tap the top right of the main menu
screen to bypass oven preheat.
2 Enter the authorized user password, for example,
MANAGER and select OK to display the Settings
menu.
3 Select the spanner symbol.
4 Enter the service password, for example SERVICE
on the keyboard and select OK to display the error
log, service information and test options.
1. Check the Error Log for details of any logged
oven errors. See ‘Errors & Diagnostics’
(Servicing section) for more details.
2. Check the ‘Oven Counters’ to find the usage of
components and the Controls area temperature
within the cabinet. (‘Errors & Diagnostics’,
Servicing section).
3. Check the operational performance of the main
components using the Visual or Data View
(‘Errors & Diagnostics’, Servicing section).
4. Perform the Oven tests, (Testing Components
section). If required refer to the ‘Spares and
Replacement’ section for any repairs needed
before continuing with the Oven Tests.
5. Follow the procedures under the
‘Commissioning’ section before commissioning
the oven for use.
4
DANGER:
BEFORE REMOVING THE OVEN CASING, ISOLATE THE
OVEN FROM THE MAINS ELECTRICITY POWER SUPPLY;
SWITCH OFF, DISCONNECT OVEN PLUG FROM WALL
SOCKET, TURN OFF ISOLATOR SWITCH TO
DISCONNECT FIXED WIRED OVENS AND LOCK-OFF.
CAUTION MICROWAVE EMISSIONS:
DO NOT BECOME EXPOSED TO EMISSIONS FROM
THE MICROWAVE GENERATOR OR PARTS
CONDUCTING MICROWAVE ENERGY.
1 2 3
