E2 SERVICE MANUAL REV D 09/12
26

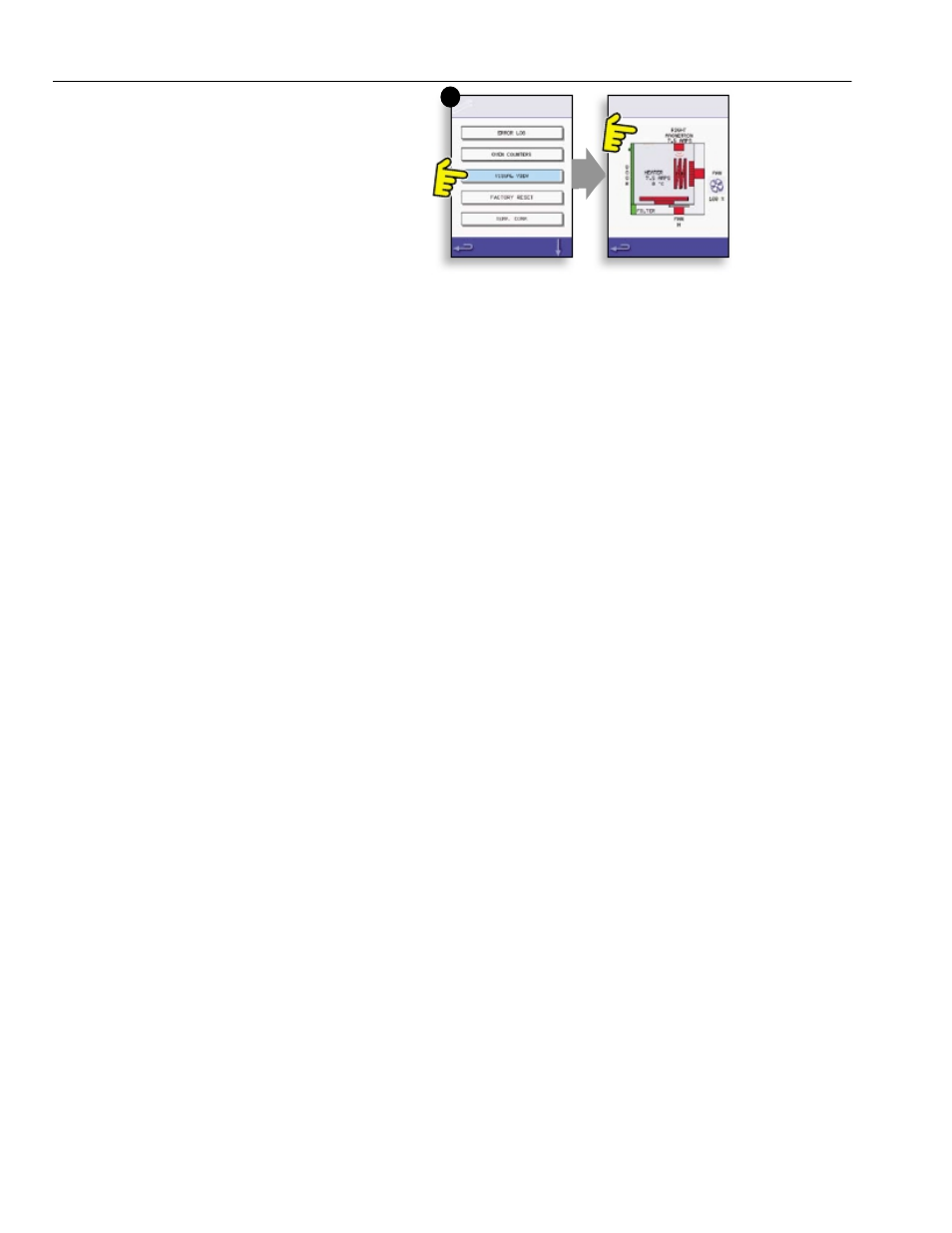

VISUAL VIEW
Select VISUAL VIEW (E) to check the main oven
components. Select a component symbol to
switch on (red), select again to increase the
level or turn off (green). (Screen shots are for
illustration purposes only and may not
represent true image found on the oven)
1. Open the oven door and check the color
changes from green to red on the display to
check the door microswitch/interlock circuit is
operating. Place door spacers onto the oven
door (refer to Door Interlock Adjustment
(Testing Components Section) for details), close
the door and check the color on the display.
Green indicates the door adjustment is ok, red
indicates that the Door Interlock Adjustment
procedure must be completed.
2. Select the cooling fan and check it’s operating
correctly.
3. Place a microwave safe container of water into
the oven, close the oven door and select a
magnetron to test the current draw at maximum
output, this will time-out after 30 seconds. For
dual magnetron models, test the magnetrons
individually and together. Using heat proof
gloves remove the container and close the oven
door.
4. Select the Convection Fan and check it is
operating correctly.
5. Select the Heating Element; it increases to
maximum temperature then cycles (the
Convection Fan is on by default). Check the
cavity temperature and heater element current
draw at maximum are correct.
E
