8 e-Train Data™
PREPARING INTERFACE UNIT

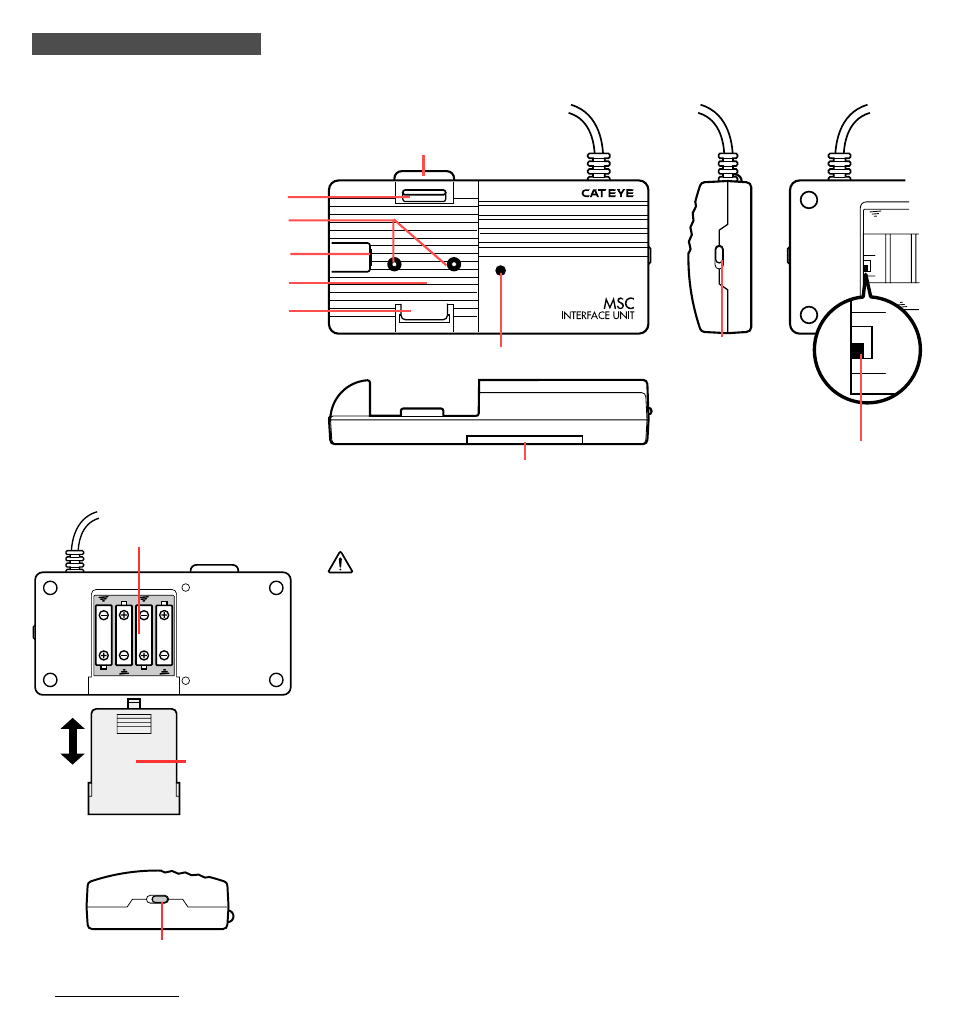

Names
Battery installation
Caution
Do not mix new and old batteries together.
Safely dispose of old batteries. Do not place them within children’s reach.
1. Open the battery cover and select the port switch inside. For models that transmit
data through contact (MSC-2Dx and MSC-3Dx), select “C” port. For (future) models
that transmit data by infrared ray, select “IR” port.
2. Install four AAA (LR03) dry batteries.
3. Turn the switch on, and see if the battery indicator turns on.
If not, re-install the batteries again, checking the correct polarity.
The interface unit continues to consume battery when the switch is on.
When not using, turn off the switch to save the battery life.
Reference:
The battery life is approximately 50 hours (alkaline battery). If the battery indicator does
not turn on, replace the batteries with new ones.
OFF ON
Battery Cover
AAA (LR03) dry batteries
Power Switch
®
OFF
ON POWER
DOWNLOAD
STAGE
IR
C
Port Switch
Stage
Release-button
Battery indicator
Battery Cover
Hook
Contacts
Infrared-ray receiver
Hook
Power Switch
