Aiphone IS-SOFT 514426 A 0611YZ - Manual (Page 4)

4

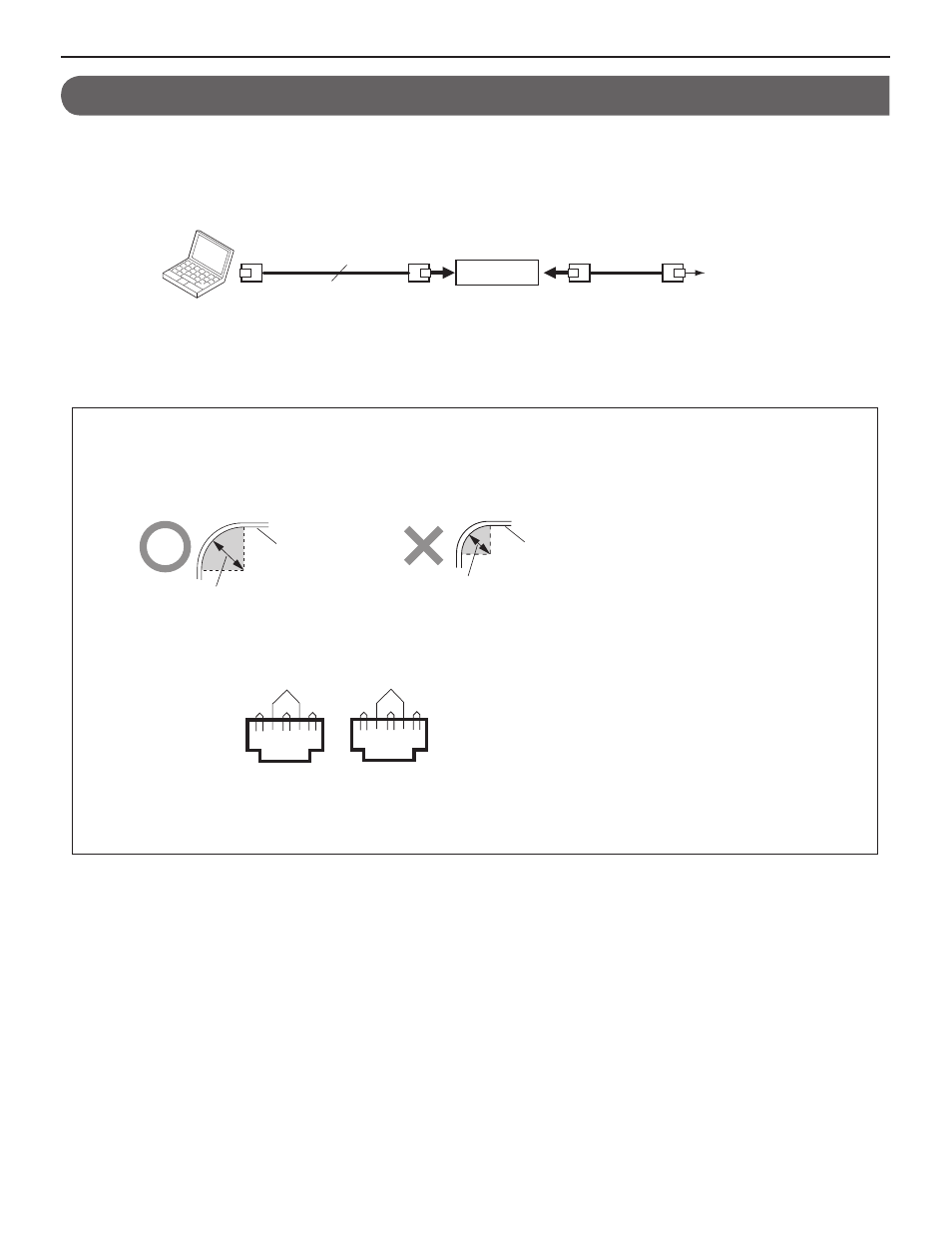

CONNECTIONS
Connect a PC on which you will install the IS-SOFT application to an IP network via a switch or hub.
CAT5e/6
100m (330')
RJ45 RJ45 RJ45 RJ45
Pair4 Pair3
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
Pair2
Pair1
T568A
Pair4 Pair2
Pair3
Pair1
T568B
Notes on CAT5e/6 cables
Do not bend the cables to an extent where the radius is less than 25 mm (1”). •
Communication failure could result.
Do not remove the CAT5e/6 cable jacket more than necessary. •
Arrange the color code of the RJ45 connections in accordance with EIA/TIA-568A and 568B. •
CAT5e/6 cable
25mm (1") or more
Less than 25mm (1")
CAT5e/6 cable
Be sure to check the condition of cable connections with a LAN checker before connecting with a LAN cable. •
Do not pull or put excess strain on CAT5e/6 cables. •
A CAT5e/6 cable is not included in this product. *
PC
To IP network Switch (Hub)
10BASE-T/
100BASE-TX
