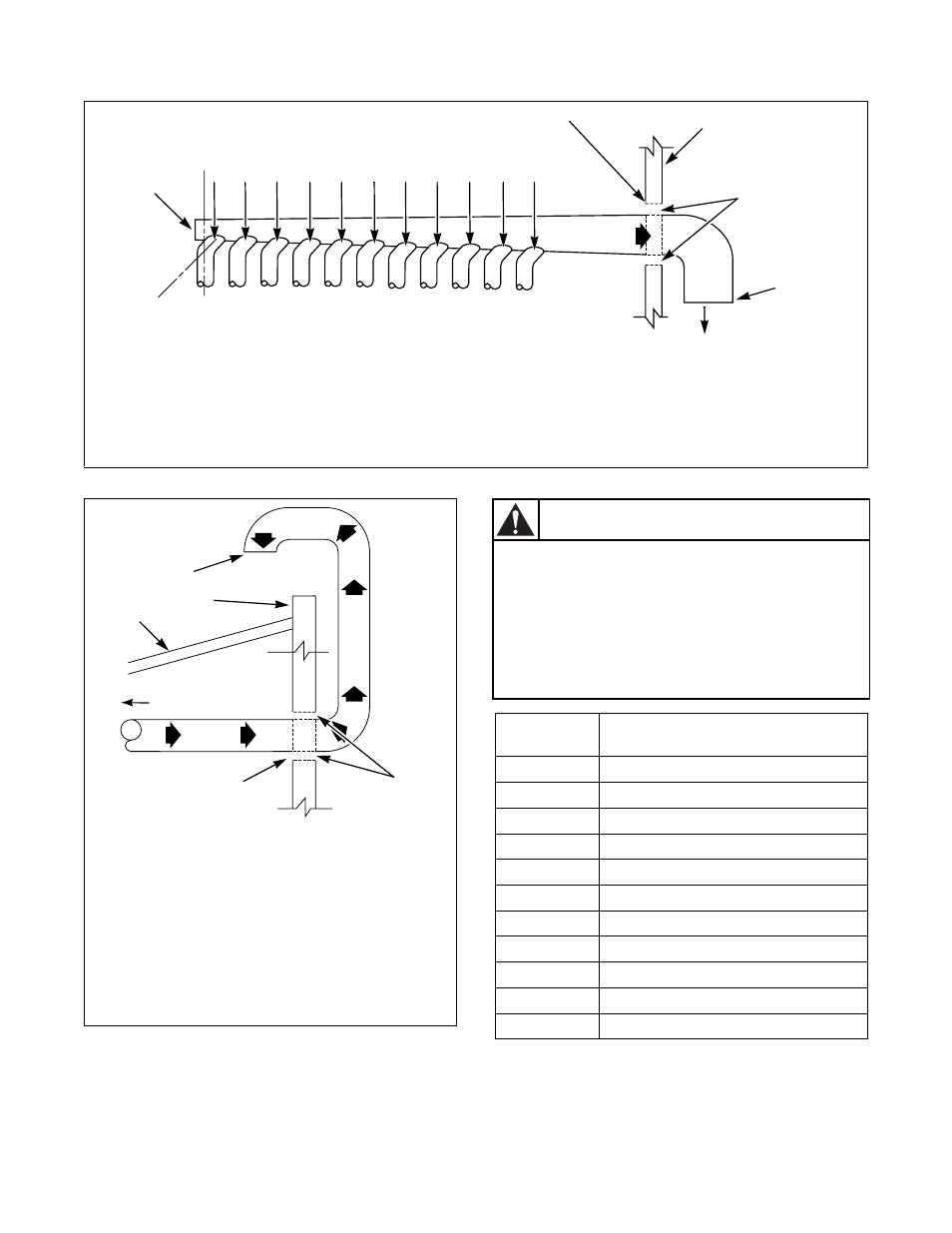

Figure 31
Figure 32
H318I
1
NOTE: Where the exhaust duct pierces a
combustible wall or ceiling, the opening must be
sized per local codes.
3
51 mm (2 in.) Minimum or Clearance per Local
Codes
4
No Screen or Cap
2
Wall
5
Clean Out Cover – Inspect Monthly
2
3
4
EXHAUST
OUTLET
K
J
I
H
G
F
E
D
C
B
A
5
30°
1
AIR
FLOW
HORIZONTAL EXHAUST INSTALLATION
EXHAUST AIR FLOW
MAXIMUM LENGTH OF DUCT
9.1 m (30 feet)
H319I
1
No Screen or Cap
2
Roof
3
Wall
4
51 mm (2 in.) Minimum or Clearance Per
Local Codes
5
NOTE: Where the exhaust duct pierces a
combustible wall or ceiling, an opening must
be sized as shown or per local codes.
1
3
2
4
5
CONNECT TO DRYER
VERTICAL EXHAUST INSTALLATION
Duct
Station
Minimum Diameter of
Collector Duct
A
102 mm (4 inches)
B
203 mm (8 inches)
C
229 mm (9 inches)
D
254 mm (10 inches)
E
279 mm (11 inches)
F
305 mm (12 inches)
G
326 mm (13 inches)
H
356 mm (14 inches)
I
381 mm (15 inches)
J
381 mm (15 inches)
K
406 mm (16 inches)
To reduce the risk of fire and the
accumulation of combustion gases, DO NOT
exhaust dryer air into a window well, gas
vent, chimney or enclosed, unventilated
area, such as an attic, wall, ceiling, crawl
space under a building or concealed space
of a building.
