Installation
802031 20 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Heat Source Check
Electric Dryers
Close the loading door and start the dryer in a heat
setting (refer to Operation section). After the dryer has
operated for three minutes, the exhaust air or exhaust
pipe should be warm.
Electrical Requirements
Washer
(230 Volt, 60 Hertz)
NOTE: The wiring diagram is located in the
control cabinet.
IMPORTANT: Do not operate other appliances on
the same circuit when this appliance is operating.
Do not overload circuits.
The washer is designed to be operated on a separate
polarized three-wire, earthed 230 Volt, 60 Hertz,
30 Amp, single-phase electrical circuit and must abide
by local electrical codes.
To install power cord (obtain locally):
1. Remove electrical access panel on rear of
machine.
2. Remove plastic plug from hole in rear of
machine.
3. Install strain relief, supplied with machine, in
hole.
4. Put power cord through hole.
5. Attach power cord wires as shown in Figure 18.
6. Replace access panel.

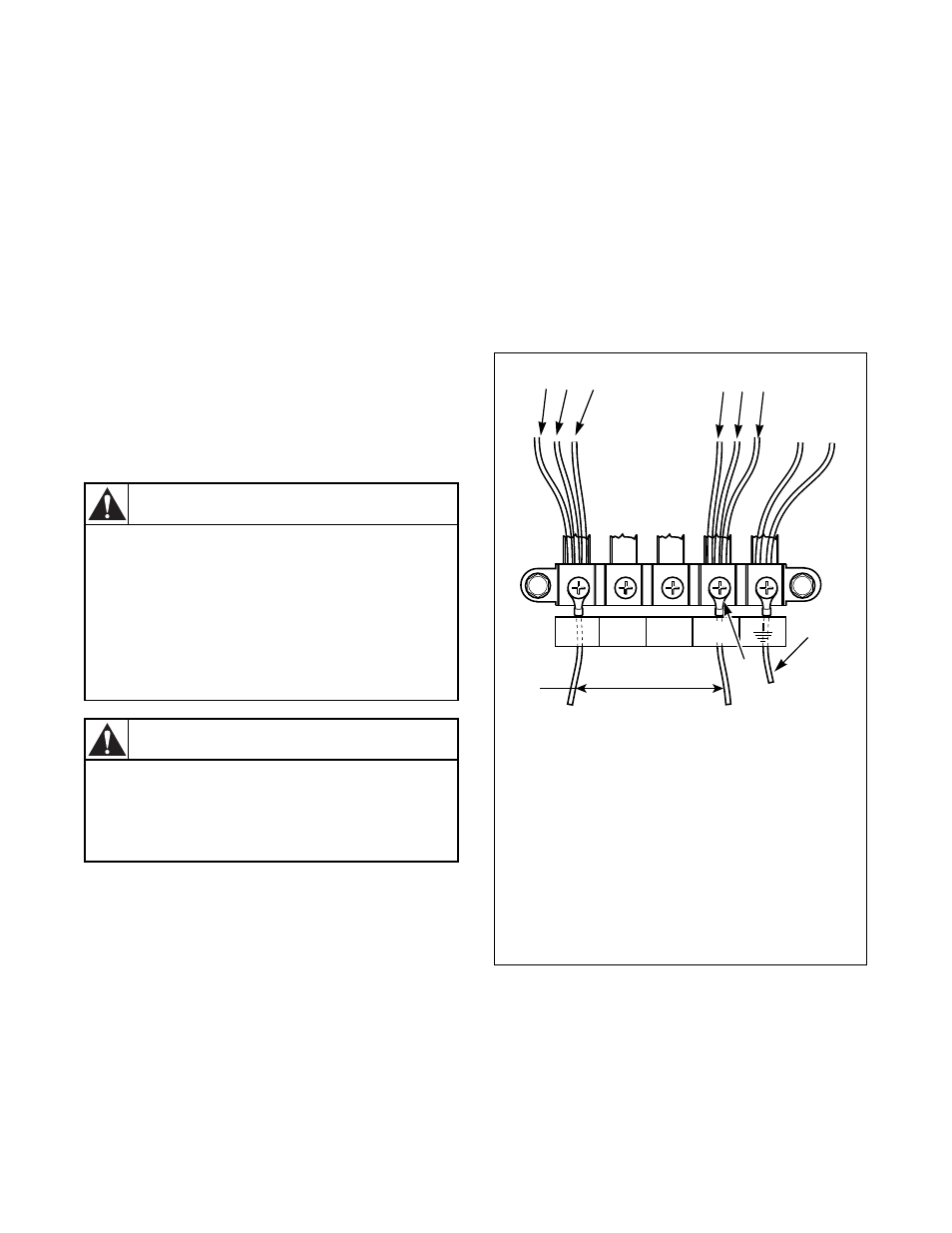

Figure 18
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
earthing MUST abide with local electrical
codes. It is the customer’s responsibility
to have the wiring and fuses installed by a
qualified electrician to make sure
adequate electrical power is available to
the washer.
W509
WARNING
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the washer to the
electric power source.
W082
WARNING
FLW2030N
1 Black Wire
2 Black/White Wire
3 Black/Red Wire
4 White/Black Wire
5 White/Red Wire
6 White Wire
7 Earth – Power Cord
8 Neutral
FLW2030N
L 1 N 7
230
Volt
8
3 1 4 2 5 6
TERMINAL BLOCK WIRED FOR 230 VOLT
SINGLE-PHASE AS VIEWED THROUGH REAR
ACCESS PANEL
