Step 7: (Dryer Only) Connect Electrical
Cord

230 Volt/60 Hertz

Refer to section on Electrical Requirements.

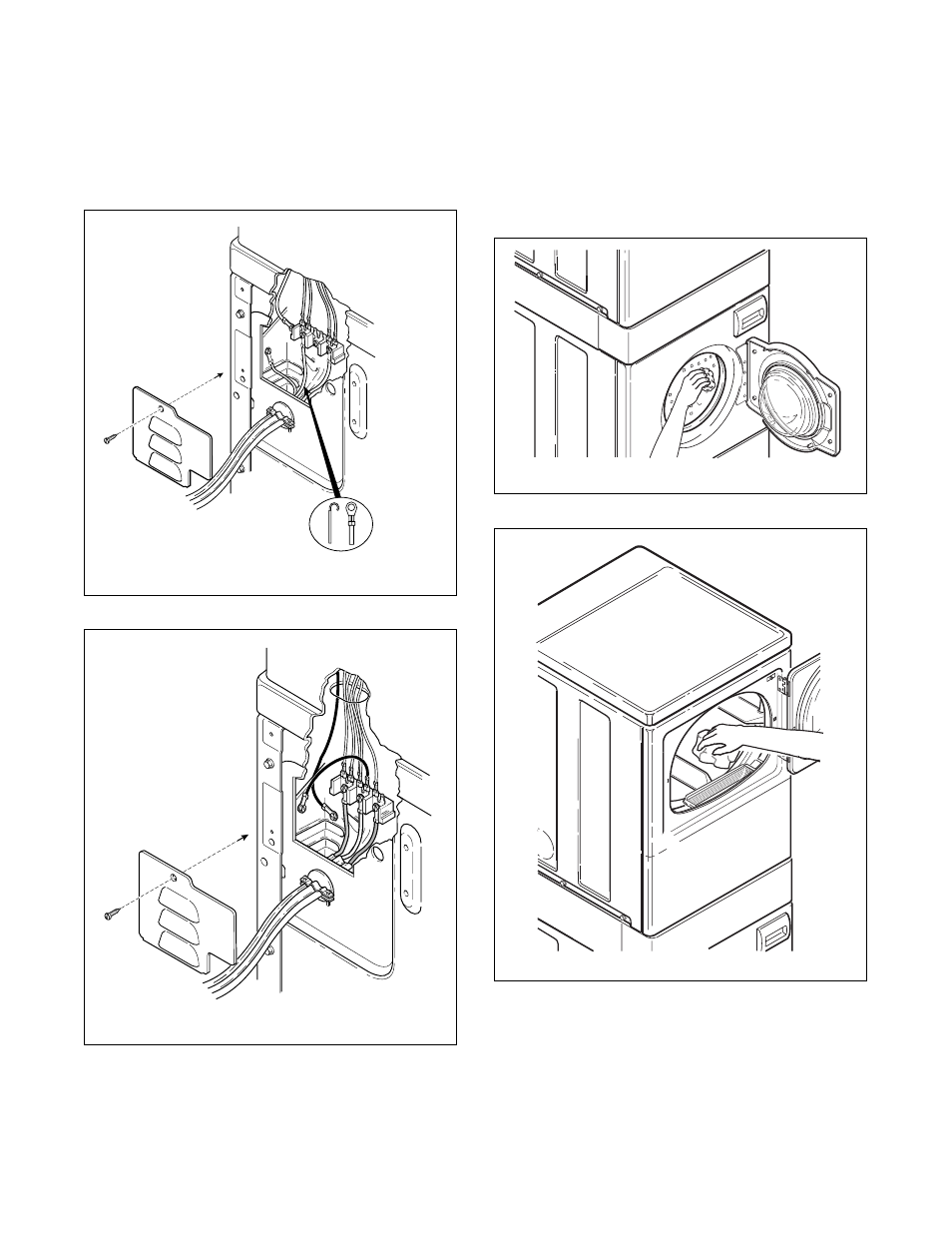

Figure 11

Figure 12

NOTE: Unit is shown with access cover removed
for illustration purposes only. NEVER operate unit
with access cover removed.

Step 8: Wipe Out Inside of Washer Drum
and Dryer Drum

Before using the washer and dryer for the first time,
use an all-purpose cleaner, or a detergent and water
solution, and a damp cloth to remove shipping dust
from inside the drums.

Figure 13

Figure 14

D703I

D679I

D703I

TWO-WIRE CONNECTION

D679I

THREE-WIRE CONNECTION

SWD695N

SWD675N
