Installation
802031 22 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
IMPORTANT: Use only a U.L. listed No. 10
(copper wire only) two conductor power supply
cord kit rated 230 Volts (minimum) 30 Amperes for
electric dryers, and labeled as suitable for use in a
clothes dryer.
4. Tighten these wire-binding screws firmly.
IMPORTANT: Failure to tighten these screws
firmly may result in wire failure at the terminal
block.
5. Secure the strain relief to the power cord, or
wires, where they enter the dryer cabinet.
6. Reinstall access cover and screw.

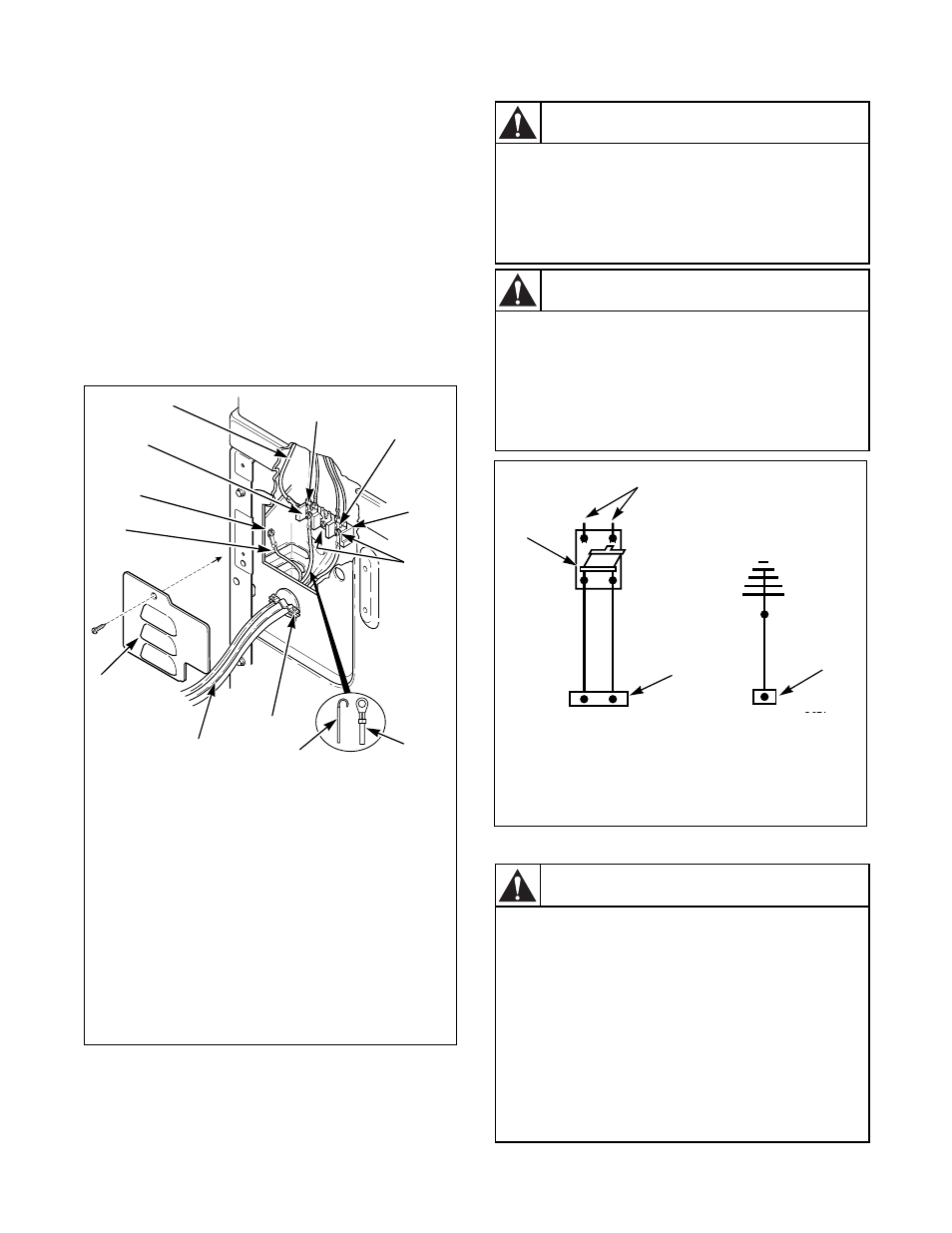

Figure 19
Figure 20
D703I
1 Earth (Ground) Wire (Green/Yellow)
2 “L” Terminal
3 Terminal Block
4 Hex Head Screws (Slotted)
5 Power Cord Wiring
6 Direct Wiring
7 Strain Relief (Not supplied with dryer)
8 Power Cord or Direct Wire
(Not supplied with dryer)
9 Access Cover
10 Earth (Ground) Wire
11 Earth (Ground) Screw
12 “N” Terminal
D703I
1
3
2
5
4
6
8
7
9
11
WIRE
CONNECTION
DETAIL
10
12
4
D821I
1 30 Amp Fuse
2 230 Volt Supply
3 Terminal Block in Dryer
4 Rear Bulkhead
Dryer is shown with the access cover
removed for illustration purposes only. To
reduce the risk of an electric shock,
serious injury or death, NEVER operate the
dryer with the access cover removed.
W157
WARNING
To reduce the risk of electric shock,
serious injury or death, earth (ground) the
dryer frame externally by connecting one
end of a grounding wire under ground
screw on cabinet rear (see above) and the
other end to a known effective ground.
W156
WARNING
1
4
2
3
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local
regulations as might apply. It is the
customer’s responsibility to have the wiring
and fuses installed by a qualified electrician
to make sure adequate electrical power is
available to the dryer.
W512
WARNING
