Basic Installation/Operation

9001014

Mounting Bolt Installation
(If Required)

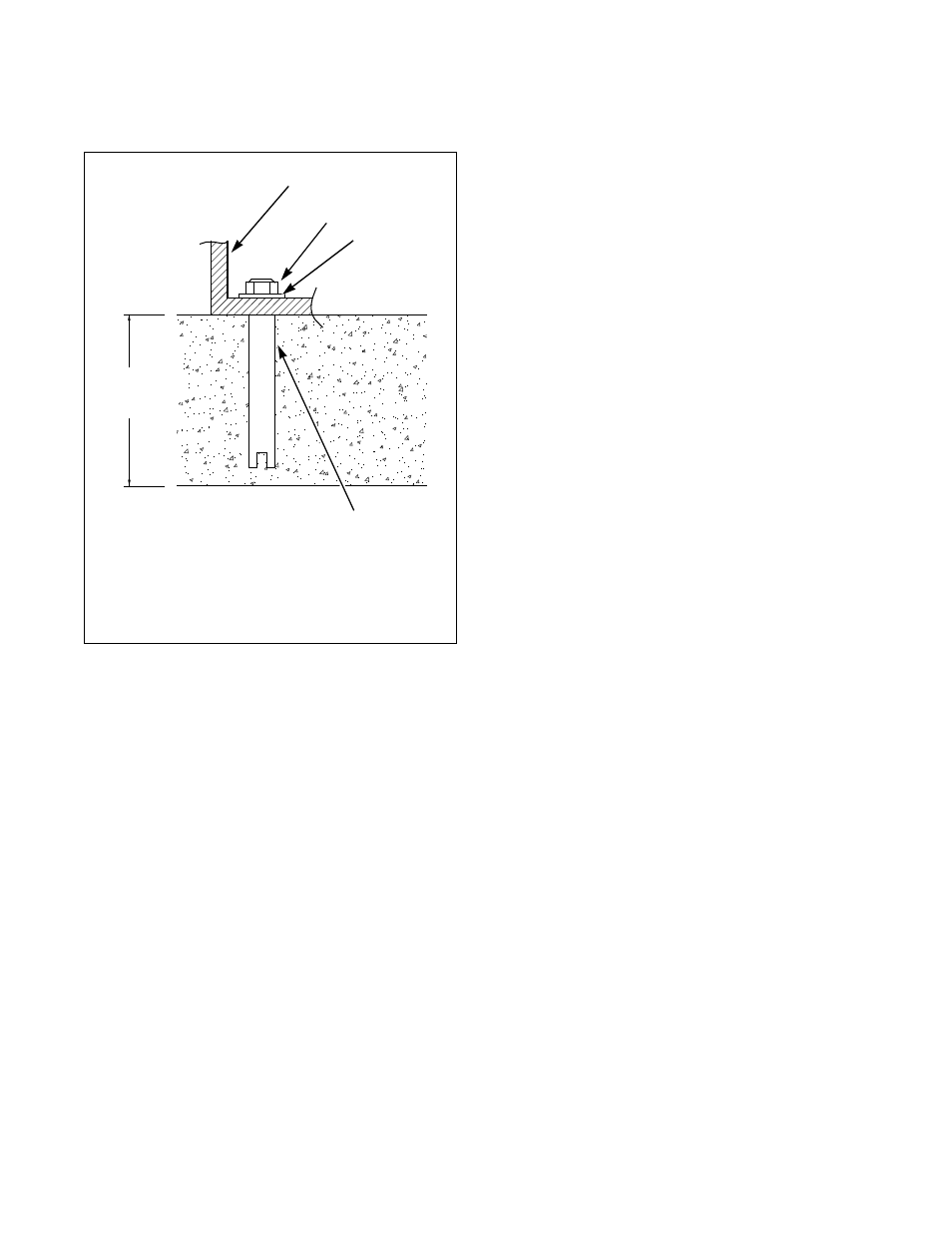

Figure 23

After the concrete has cured and the anchors are

installed, proceed as follows:

1. Place the washer-extractor adjacent to the

foundation. Do not attempt to move it by pushing

on the sides. Always insert a pry bar or other

device under the bottom of the frame of the

washer-extractor to move it.

2. Place the washer-extractor carefully over the

anchors.

3. Put bolts through the machine in the anchors and

fasten them. (For the 18-25 and 35 models, the

diameter of the bolt must be minimum 1/2-13 or

12 mm; for the 33-40-55-75-100-135-165 and

200 models, the diameter of the bolt must be

minimum 5/8-11 or 16 mm.)

4. To level machine, fill the spaces between the

machine base and floor with machinery grout.

Grout completely under all frame members.

Remove front and rear panels to gain access to all

frame members. Force grout under the machine

base until all voids are filled.

5. Remove the spacers carefully, allowing the

machine to settle into the wet grout.

6. Position washers and locknuts on machinery

anchor bolts and finger-tighten to machine base.

7. After the grout is completely dry, tighten the

locknuts by even increments – one after the

other – until all are tightened evenly and the

machine is fastened securely to the floor.

8. Remove the four red transport brackets which

secure the moving components of the machine

during shipping. Refer to Installation manual for

typical transport bracket locations.

CFS485N

Base Frame

Bolt

Washer

Anchor Bolt/Plug

&)61

152 mm

(6 in.)
