Basic Installation/Operation
21 9001014
1 Fill and Supply Ventilation 8 Electrical Power Input
2 Cold Water Inlet (Required) 9 External Supply Signal Input
3 Hot Water Inlet (Required) 10 Drain Outlet (Standard)
4 Cold Water Inlet (Required) 11 Dual Drain Outlet (Optional)
5 Cold Water Inlet (Required) 12 Steam Connection Input (Optional)
6 Flushing Supply Dispenser 13 Service Power Disconnect
7 External Liquid Supply Inlets

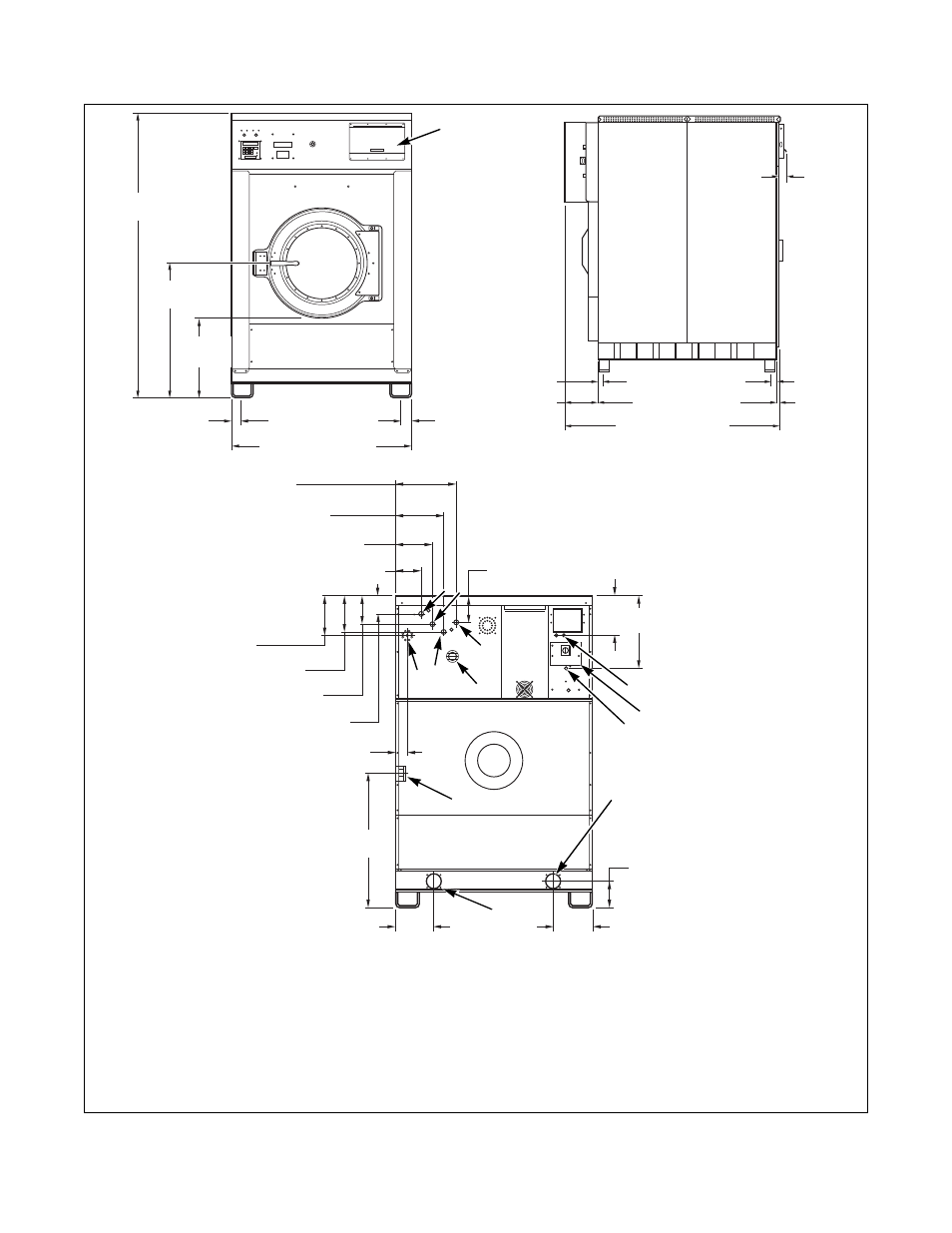

Figure 11
CFD533N CFD533N
2100 mm
(82.7 in.)
993 mm
(39 in.)
1138 mm (44.8 in.)
CFD535N
81 mm
(3.19 in.)
1300 mm (51.18 in.)
323 mm
(12.72 in.)
248 mm
(9.76 in.)
257 mm
(10.12 in.)
486 mm
(19.13 in.)
899.5 mm
(35.37 in.)
6
603 mm
(23.75 in.)
408 mm
(16.06 in.)
12
2 3
5
4
1 9
13
8
10
11
7
CFD534N
CFD534N
44 mm
(1.73 in.)
175.2 mm (68.96 in.)
260 mm
(10.24 in.)
260 mm
(10.24 in.)
81 mm
(3.19 in.)
169.5 mm
(6.67 in.)
173 mm
(6.81 in.)
237 mm
(9.33 in.)
117 mm
(4.61 in.)
262 mm
(10.31 in.)
117 mm
(6.97 in.)
81 mm
(3.19 in.)
1453 mm (57.2 in.)
1365 mm (53.74 in.)
26.5 mm
(1.04 in.)
44 mm
(1.73 in.)
272 mm
(10.71 in.)
56.5 mm
(2.23 in.)
174 mm
(6.85 in.)
200 MODEL
