Preparations

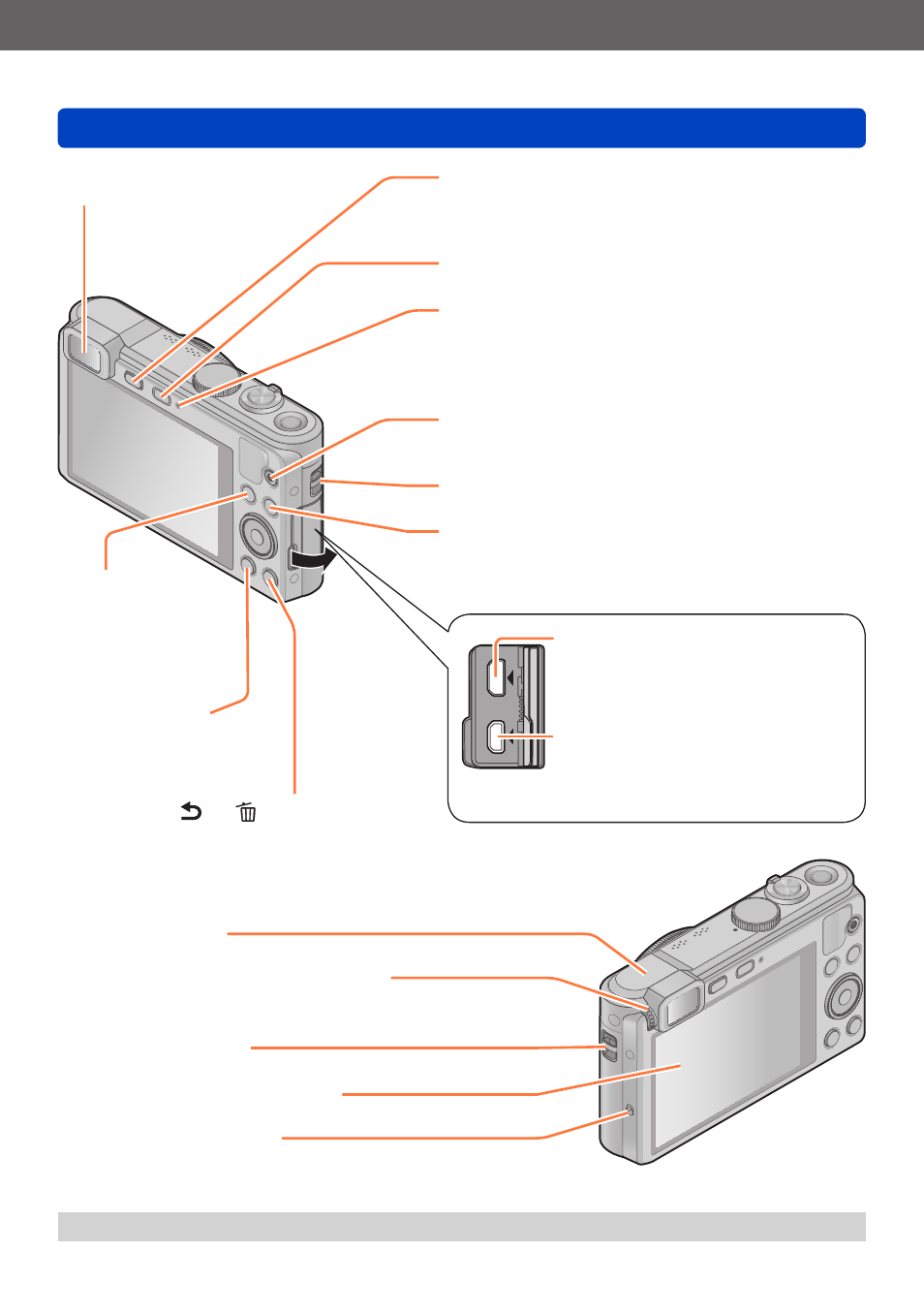

Names and Functions of Main Parts
VQT5A33
- 11 -
[HDMI] socket
Do not connect any other cables
except the HDMI micro cable.
Doing so may cause malfunction.
[AV OUT/DIGITAL] socket
This socket is also used when
charging the battery.
[LVF] button
Use this to switch display between viewfinder and
LCD monitor.
[Wi-Fi] button
Charging lamp
/
Wi-Fi
®
connection lamp
•Charging in progress: Red
•When the Wi-Fi function is ON: Blue
Motion picture button
Record motion pictures.
Strap eyelet
Playback button
Use this to select the recording mode or playback
mode.
●
The illustrations and screens in this manual may differ from the actual product.
Viewfinder
[Fn] button
Use this to
use registered
functions.
[Q.MENU/ ] / [ ] button
You can display the Quick Menu
(→28)
and
erase pictures
.
[DISP.] button
Use this to change
display.
[Wi-Fi] antenna
Diopter adjustment dial
Turn the dial to adjust the focus in the viewfinder.
Strap eyelet
LCD monitor
NFC antenna
