Preparations

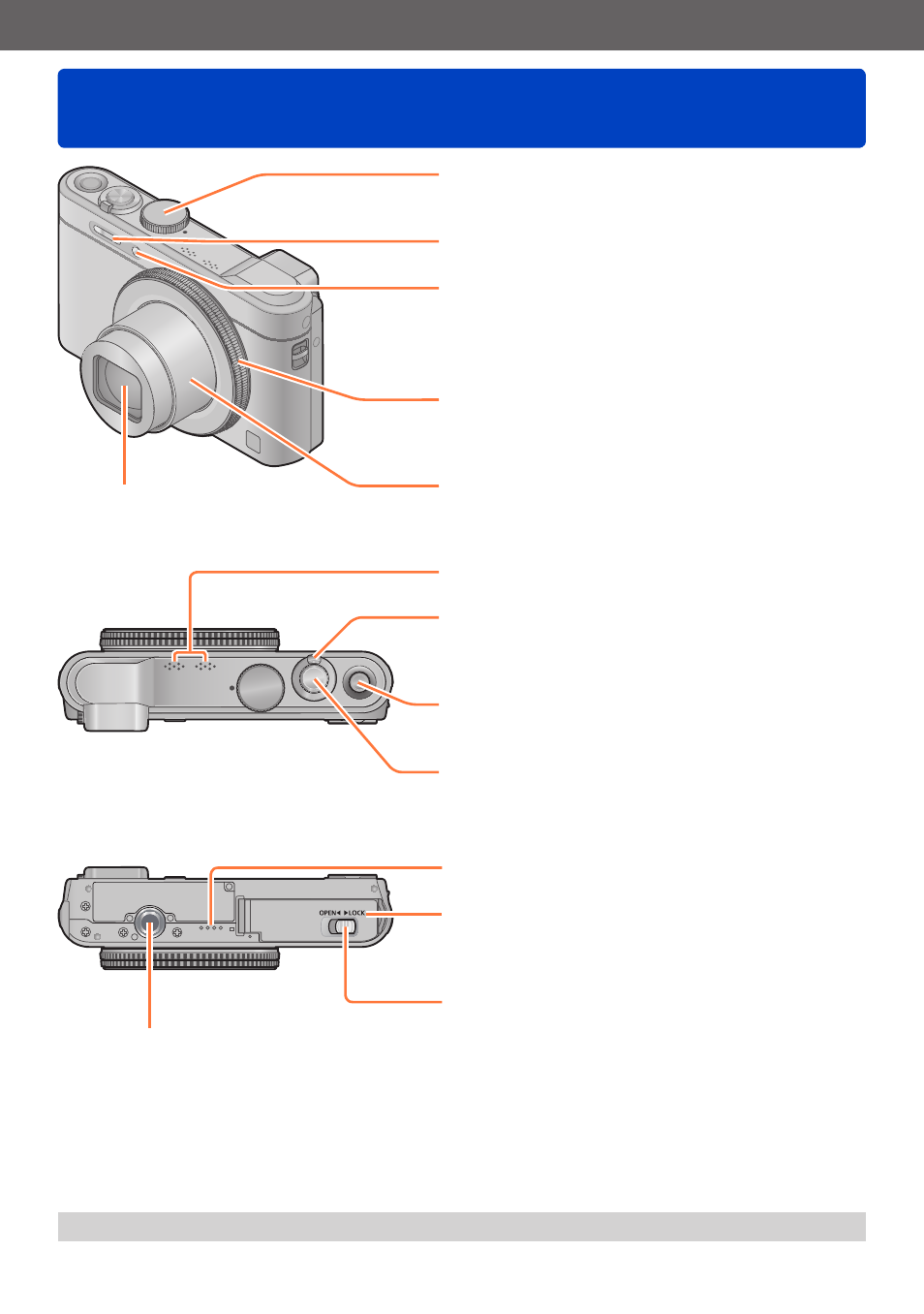

Names and Functions of Main Parts
VQT5A33
- 10 -
Mode dial
Use this to select the recording mode.
Flash
Self-timer indicator
/
AF Assist Lamp
Illuminates when the self-timer is set or when the
Auto Focus is operated in dark locations.
Control ring
Allows you to zoom and adjust settings when
recording.
Lens barrel
Speaker
Card/Battery door
Open this door to insert and remove a card or
battery.
Release lever
Microphones
Zoom lever
Use the lever to zoom in and enlarge a distant
subject.
Camera [ON/OFF] button
Use this to turn the camera on and off.
Shutter button
Lens
Tripod mount
Do not attach to a tripod with a 5.5 mm (0.22 inch) or longer screw.
Doing so may damage this unit.
(Top)
(Bottom)
●
The illustrations and screens in this manual may differ from the actual product.
