ADSP-21020
REV. C –27–
All GND pins should have a low impedance path to ground. A
ground plane is required in ADSP-21020 systems to reduce this
impedance, minimizing noise.
The EVDD and IVDD pins should be bypassed to the ground
plane using approximately 14 high-frequency capacitors (0.1
µ
F
ceramic). Keep each capacitor’s lead and trace length to the
pins as short as possible. This low inductive path provides the
ADSP-21020 with the peak currents required when its output
drivers switch. The capacitors’ ground leads should also be
short and connect directly to the ground plane. This provides a
low impedance return path for the load capacitance of the
ADSP-21020’s output drivers.
If a V
DD
plane is not used, the following recommendations
apply. Traces from the +5 V supply to the 10 EVDD pins
should be designed to satisfy the minimum V
DD
specification
while carrying average dc currents of [I
DDEX
/10
؋ (number of
EVDD pins per trace)]. I
DDEX
is the calculated external supply
current. A similar calculation should be made for the four
IVDD pins using the I
DDIN
specification. The traces connecting
+5 V to the IVDD pins should be separate from those con-
necting to the EVDD pins.
A low frequency bypass capacitor (20
µ
F tantalum) located near
the junction of the IVDD and EVDD traces is also recommended.

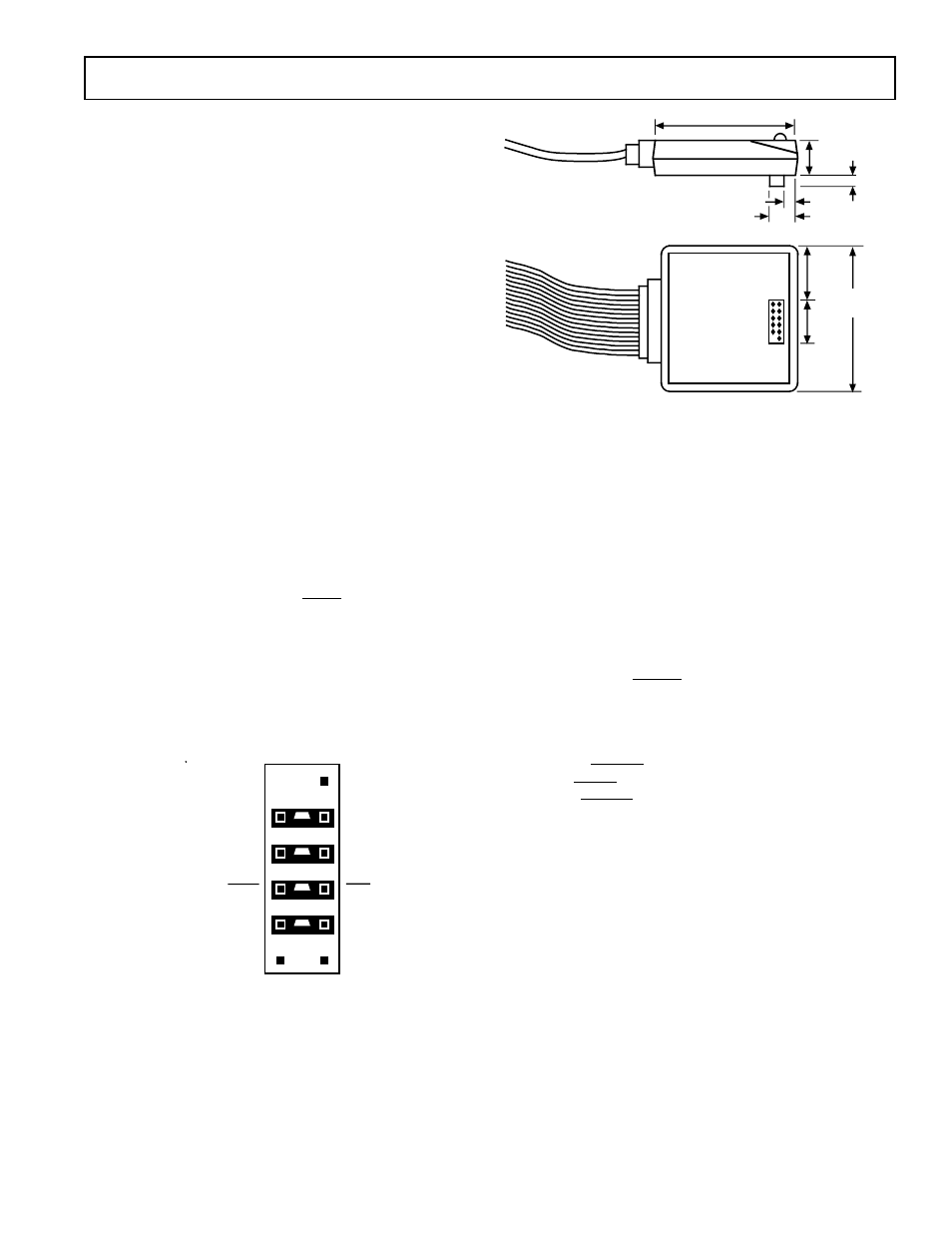

Target System Requirements For Use Of EZ-ICE Emulator
The ADSP-21020 EZ-ICE uses the IEEE 1149.1 JTAG test
access port of the ADSP-21020 to monitor and control the
target board processor during emulation. The EZ-ICE probe
requires that CLKIN, TMS, TCK, TRST, TDI, TDO, and
GND be made accessible on the target system via a 12-pin
connector (pin strip header) such as that shown in Figure 20.
The EZ-ICE probe plugs directly onto this connector for
chip-on-board emulation; you must add this connector to your
target board design if you intend to use the ADSP-21020
EZ-ICE. Figure 21 shows the dimensions of the EZ-ICE probe;
be sure to allow enough space in your system to fit the probe
onto the 12-pin connector.
CLKIN
TCK
TDI
TDO
TMS
TRST
BTCK
BTDI
GND
BTMS
BTRST
KEY (NO PIN 1)
TOP VIEW
X
Figure 20. Target Board Connector for EZ-ICE Emulator
(Jumpers In Place)
BOTTOM
VIEW
2.435
(61.9)
0.6
(15.2)
0.92
(23.4)
RIBBON
CABLE
ALL DIMENSIONS IN INCHES AND (mm)
0.590
(15.0)
2.435 (61.9)
0.2 (5.1)
0.128 (3.25)
0.408 (10.4)
RIBBON CABLE LENGTH = 60.0 INCHES
Figure 21. EZ-ICE Probe
The 12-pin, 2-row pin strip header is keyed at the Pin 1 location
–you must clip Pin 1 off of the header. The pins must be 0.025
inch square and at least 0.20 inch in length. Pin spacing is
0.1
؋ 0.1 inches.
The tip of the pins must be at least 0.10 inch higher than the
tallest component under the probe to allow clearance for the
bottom of the probe. Pin strip headers are available from
vendors such as 3M, McKenzie, and Samtec.
The length of the traces between the EZ-ICE probe connector
and the ADSP-21020 test access port pins should be less than 1
inch. Note that the EZ-ICE probe adds two TTL loads to the
CKIN pin of the ADSP-21020.
The BMTS, BTCK, BTRST, and BTDI signals are provided so
that the test access port can also be used for board-level testing.
When the connector is not being used for emulation, place
jumpers between the BXXX pins and the XXX pins as shown in
Figure 20. If you are not going to use the test access port for
board test, tie BTRST to GND and tie or pull up BTCK to
VDD. The TRST pin must be asserted (pulsed low) after power
up (through BTRST on the connector) or held low for proper
operation of the ADSP-21020.
