ASUS TUSL2 User’s Manual

3. HARDWARE SETUP

24

Motherboard Settings

3. H/W SETUP

8) Voltage I/O Setting (VIO)

This jumper allows you to select the voltage supplied to the DRAM, chipset,
AGP, and PCI. The default setting of 3.40V should be used unless processor
overclocking requires a higher voltage.
Setting

VIO

3.30 V

[1-2]

3.40 V

[2-3] (default)

3.60 V

[3-4]

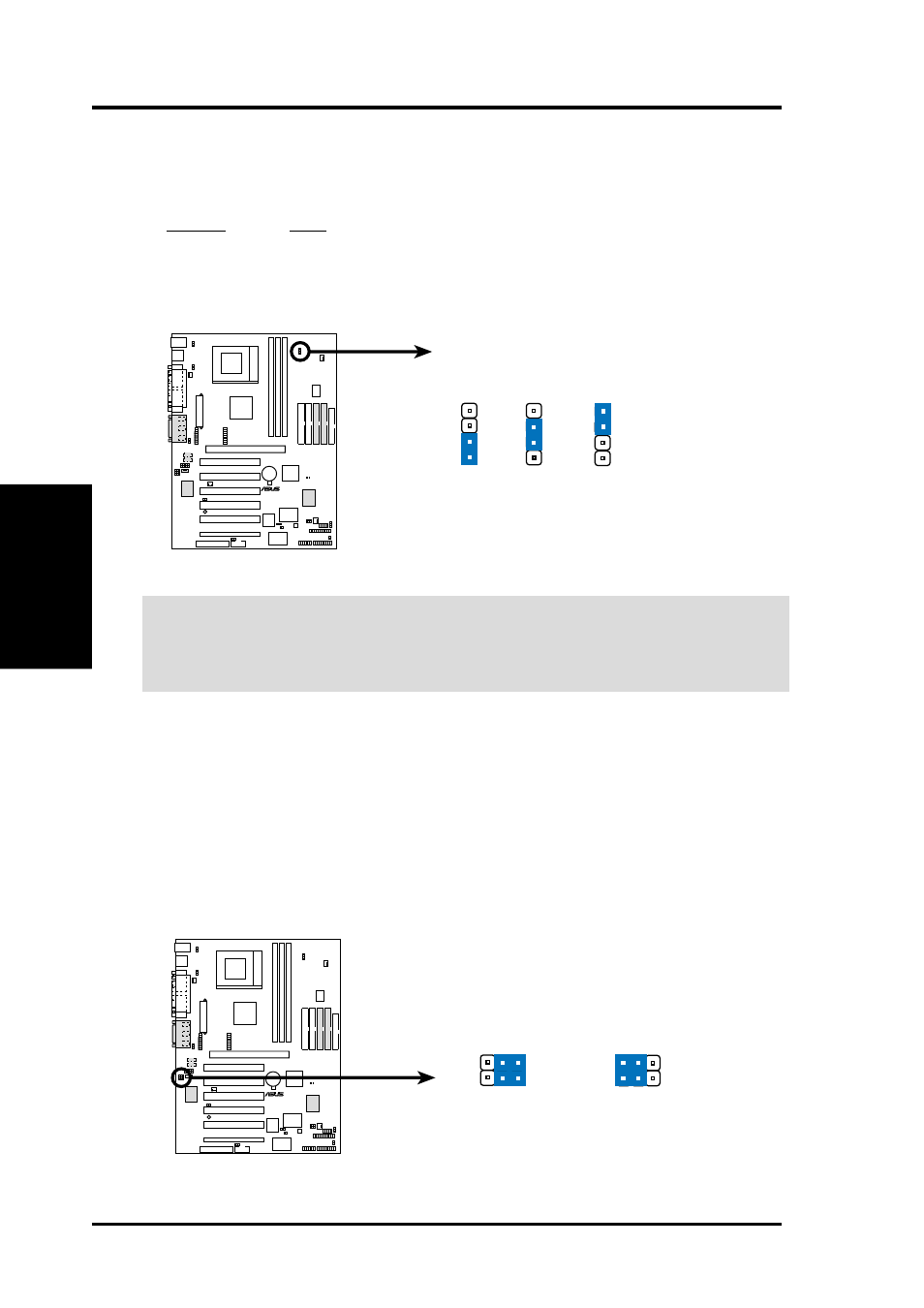

TUSL2

®

COM1

TUSL2 VIO Setting

VIO

3.30 V

3.40 V

1

2

2

3

3.60 V

4
3

WARNING!

Using a higher voltage may help when overclocking but may result

in the shortening of your computer component’s life. It is highly recommended
that you leave this setting on its default.

9) Bass Center Setting (CENTER/BASS, BASS/CENTER)

Use these jumpers in conjunction with the C-Media PCI Audio Driver and to
adjust output for 6 speaker audio. No audio standard exists for the three pick-up
surfaces on male audio jacks, therefore it may be necessary to switch jumpers
from the default position, type 1, to type 2, in order to help reroute signals
among the internal leads in the Line-In, Line-Out, Mic female sockets. Make
sure a test is made using the C-Media Audio Driver software setup available on
the Support CD.

(Default)

TUSL2

®

COM1

TUSL2 Bass Center Setting

BCS

type 1 Bass

1

2

type 2 Bass

2

3

(CENTER/BASS)

(BASS/CENTER)

(Default)
