Motherboard Settings
3. H/W SETUP
Motherboard Feature Settings
The motherboard’s onboard functions are either adjusted through jumpers or DIP
switches. When using DIP switches, the white block represents the switch’s posi-
tion. The example below shows all the switches in the OFF position.
TUSL2
®
COM1

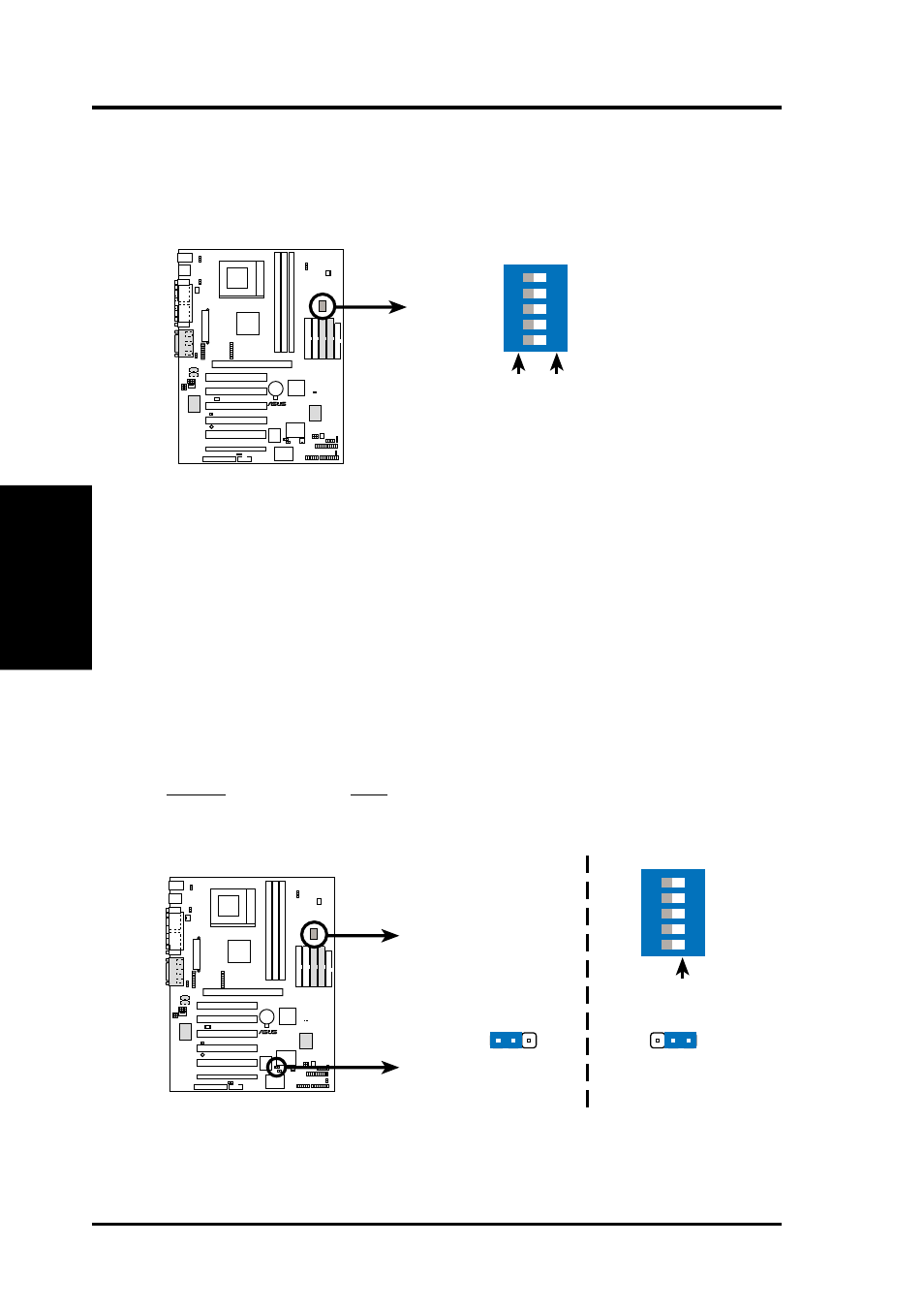

TUSL2 JumperFree™ Mode Setting
JEN
DSW
ON 12345
OFF
Disable
1 2
Enable
2 3
JumperFree Mode
(Default) Jumper Mode
JEN
1) JumperFree™ Mode (JEN)
This jumper allows you to enable or disable the JumperFree™ mode. The
JumperFree™ mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu).
NOTE: In JumperFree™ mode, all dip switches must be set to OFF.
Setting
JEN
Disable (Jumper) [1-2]
Enable (JumperFree) [2-3] (default)
TUSL2
®
COM1
1. Frequency Selection
2. Frequency Selection
3. Frequency Selection
4. Frequency Selection
5. Frequency Selection.
TUSL2 DIP Switches
DSW
ON OFF
ON 12345
