Apple Macintosh LC 550 User Manual

Page 33

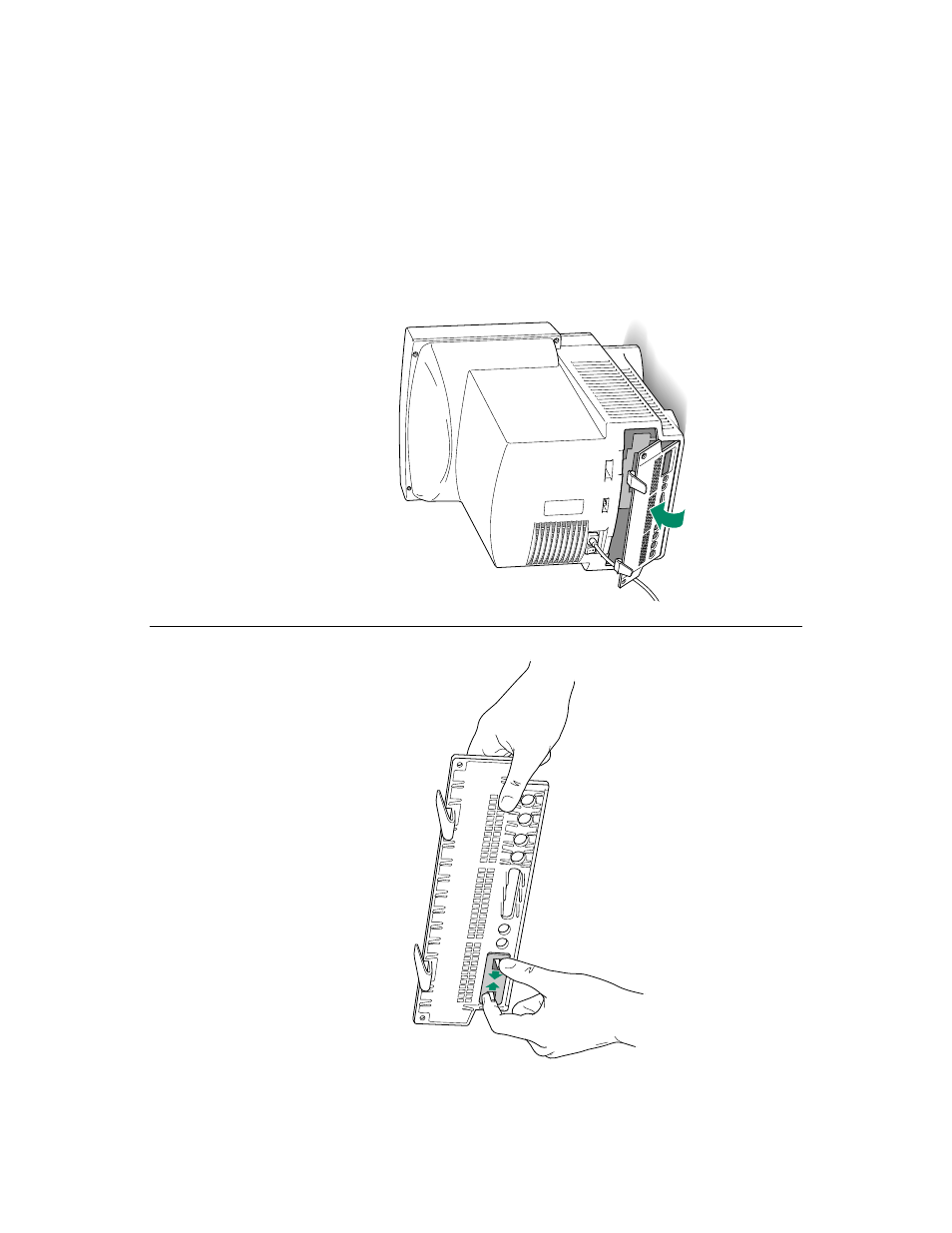

12.

Slide the logic boar

d back in

Push on the edge of the logic board until it is finally in place.

13.

If ther

e is a connector on the car

d that you just

installed

(for example, if you ar

e installing an Apple IIe

Car

d), r

emove the access cover on the back panel you

removed earlier

Pinch together the plastic tabs on the access cover to remove

it and pop it out. With the access cover off

, you can use the

port on the card you just installed.

14.

eplace the back panel of the computer

Slip the back cover over the prongs at the bottom edge of the

back of the computer

. If your back panel was held on by

screws, replace them.

rning:

Never tur

n on your computer unless all of its

inter

nal and exter

nal parts are in place. Operating the

computer when it is open or missing parts can be dangerous,

and can damage your computer
