11
INSTALLATION
Telephone Installation

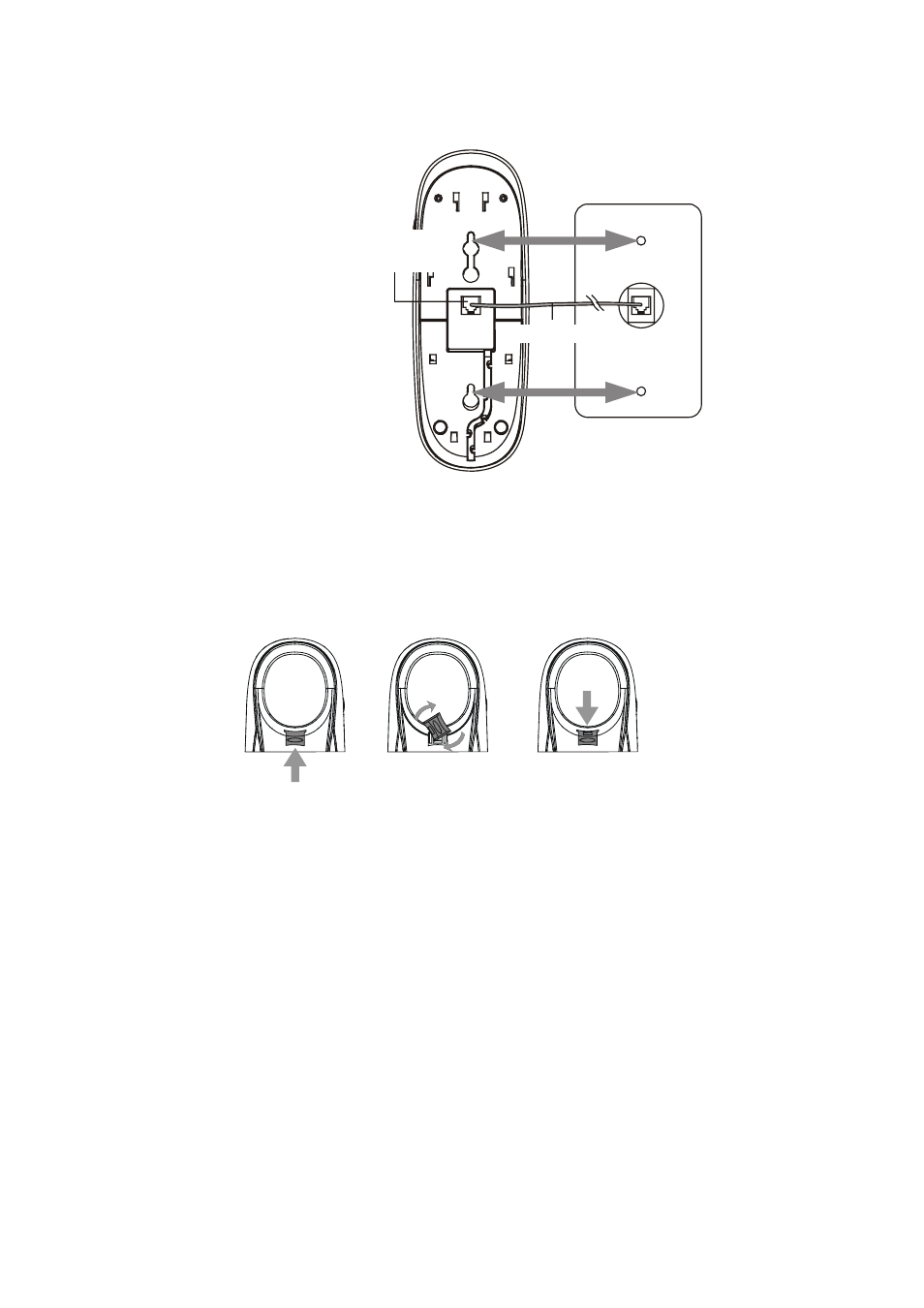

Wall-Mount Installation
1. Make sure
mounting adapter is
attached to the
bottom portion of
the set, so that the
front of the
telephone base will
be about parallel to
the wall, once it is
mounted.
2. Plug one end of the
telephone line cord
into the telephone
line jack at the
bottom of the
telephone base.
3. Thread the cord
through the
channel and out of
the mounting area as shown.
4. Connect the other end to a modular telephone wall jack.
5. Mount the telephone on the wall as shown, then continue with the steps
on page 12 for Handset Installation.
6. Remove handset cradle tab, rotate and replace to hold handset securely in
place for wall mounting (as shown in the diagrams below).
Line cord
Modular telephone
wall jack
Telephone
line jack
