WebShare 144WN
A02-RA144-W300N Pag. 29
static IP and active NAT (SUA) (for the managing of the public class turn to the
CD handbook). Let’s see how to configure correctly this kind of ADSL
configuration.

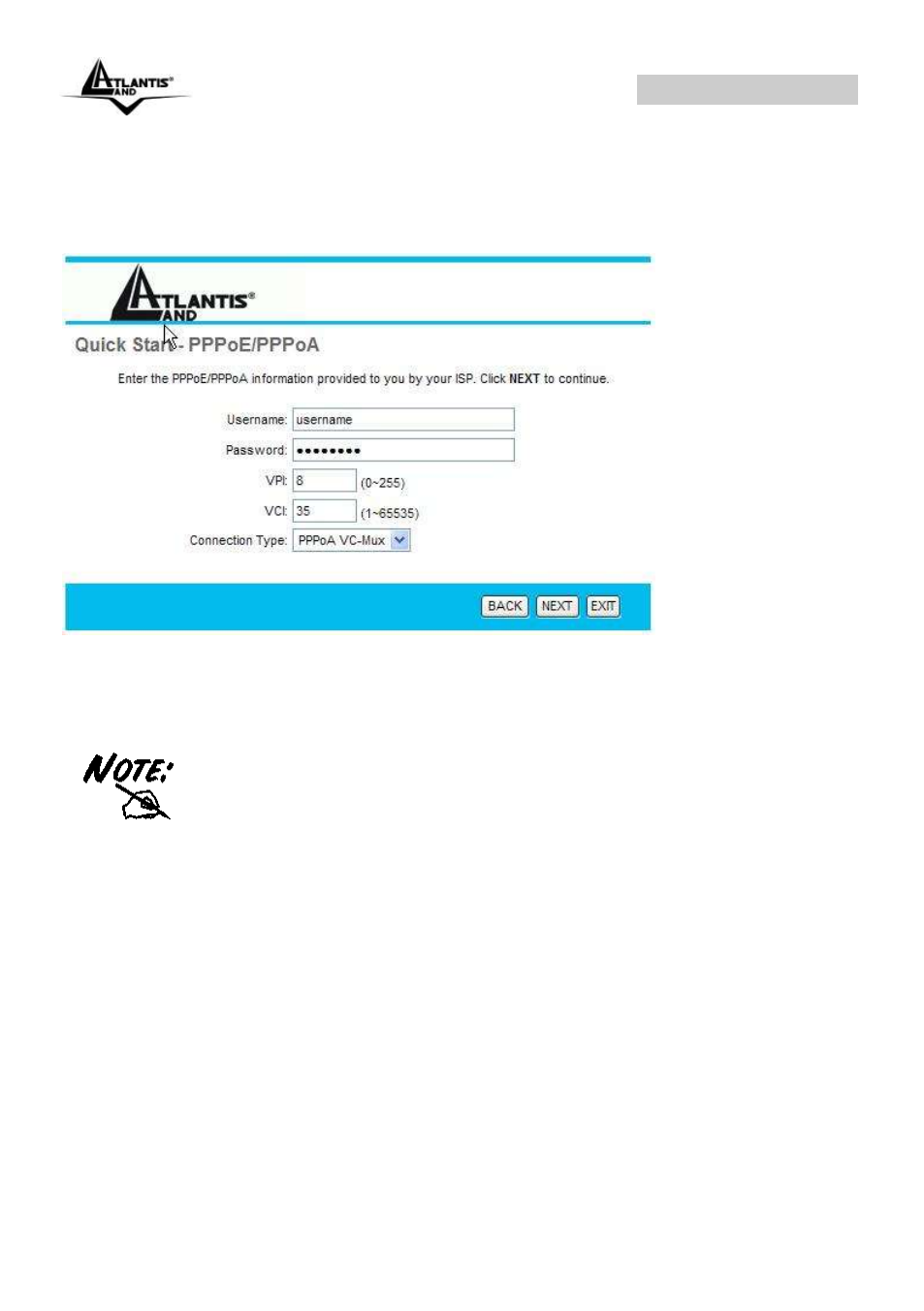

Insert
Username and Password and make sure that the parameters are, in case
of PPPoA , the ones in the picture, if not specifically shown by the ISP.
In case of PPPoE choose Connection Type=PPPoE LLC .
Click on Next .
You have to pay particular attention to the WAN-ADSL
connection. If you have any doubt turn to qualified personnel or
contact Atlantis-Land technical assistance. Atlantis Land will not
be considered responsible in case of wrong or bad
configuration.
STATIC IP ADDRESS
This configuration is valid in case of a subscription with a static IP and active NAT
SUA (for the managing of the public class turn to the CD Manual). Make sure that
the parameters are, in case of
RFC1483 , the ones in the picture, if not
specifically shown by the ISP.
Insert then the public static IP address given by the ISP and choose
Connection
Type=1483 Routed IP LLC(IPoA) . Make sure that the parameters are, the ones
in the picture, if not specifically shown by the ISP.
