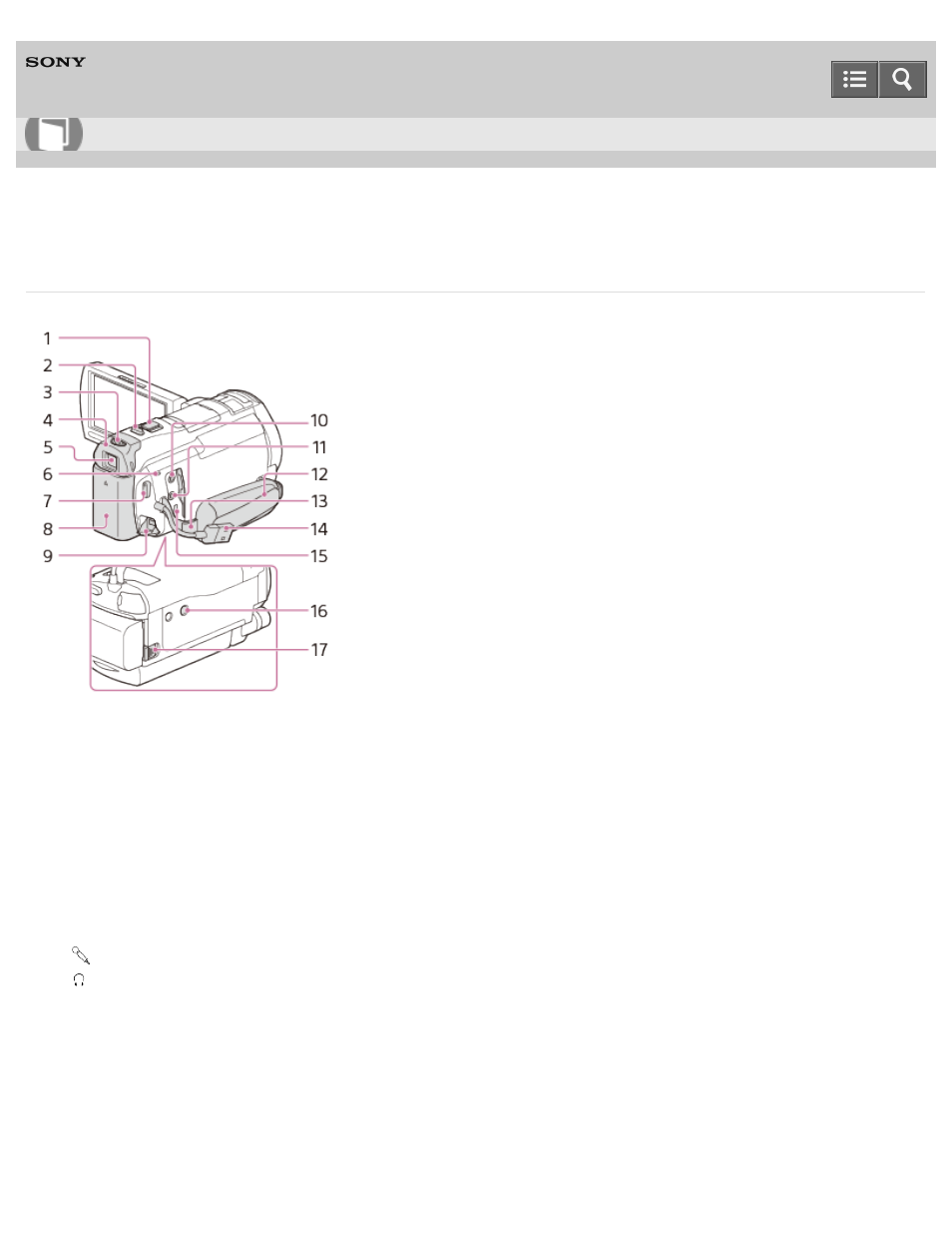

Parts and controls (back/bottom)

1. Power zoom lever

2. PHOTO button

3. Viewfinder lens adjustment lever

4. Eyecup

5. Viewfinder

6. POWER/CHG (charge) lamp

7. START/STOP button

8. Battery pack

9. DC IN jack

10.

(microphone) jack (PLUG IN POWER)

11.

(headphones) jack

12. Grip belt

13. Loop for a shoulder belt

14. Built-in USB Cable

15. Multi/Micro USB Terminal

Supports Micro USB compatible devices.

If you use an adaptor cable (sold separately), you can also use accessories via an A/V Remote Connector.

16. Tripod receptacle
