Parts Names and Functions
Front Panel

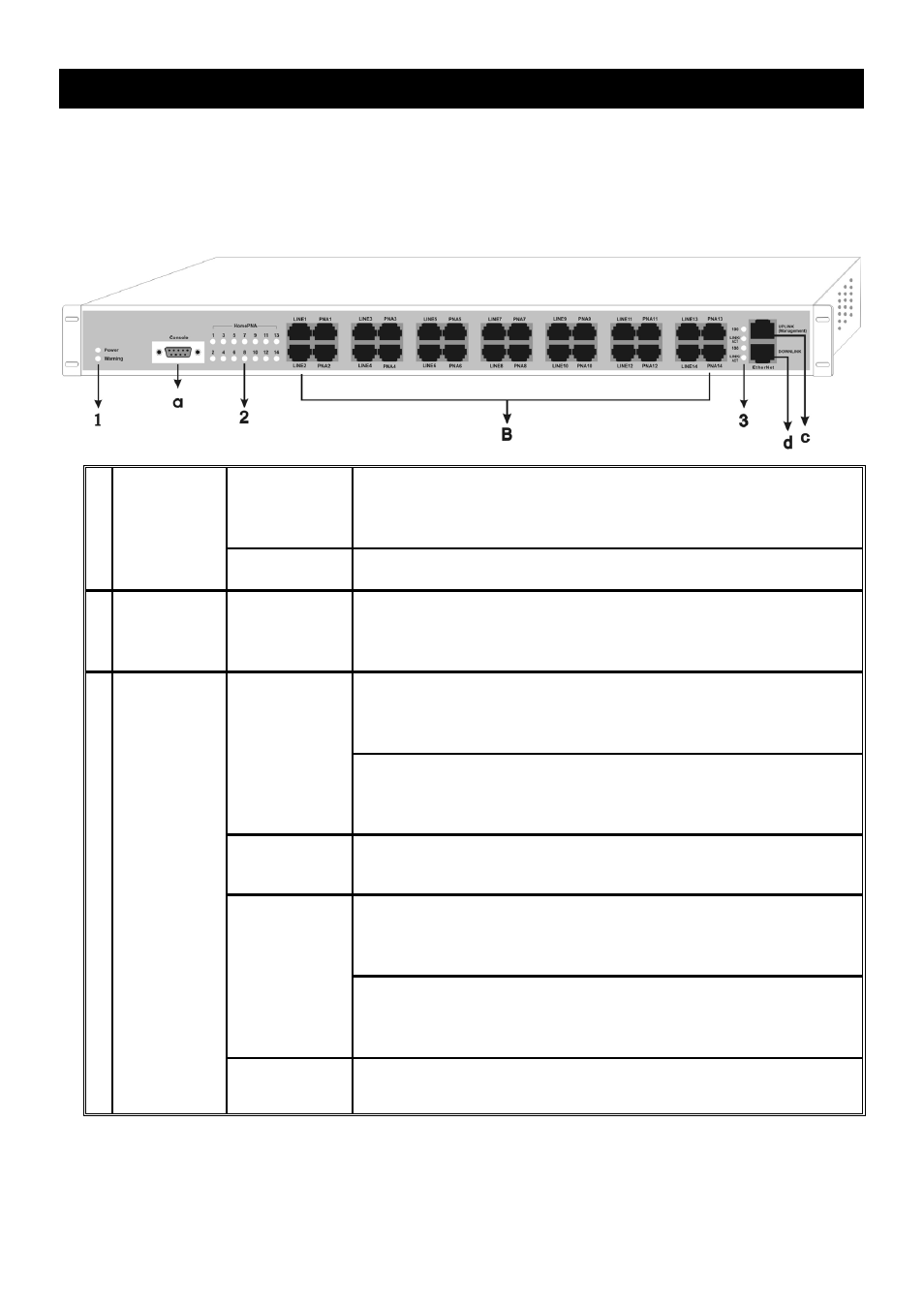

The front panel of the switch, displayed below, has fourteen 1Mbps switching ports
supported.
Power
Grows when the switch is powered on and self-testing.
(The Power LED dims after self-detecting is done.) 1
System
LEDs
Warning Grows when the switch is malfunctioning.
2
HomePNA
Port LEDs
LINK/ACT
LED
Grows green when connecting.
Grows green when connecting to a 100Mbps Fast
Ethernet connection (Uplink)
100 LED Grows dim when connecting to a 10Mbps Ethernet
connection.
LINK/ACT Blinks when receiving data.
Grows green when connecting to a 100Mbps Fast
Ethernet connection (Downlink)
100 LED Grows dim when connecting to a 10Mbps Ethernet
connection.
3
Ethernet
Port LEDs
LINK/ACT Blinks when receiving data.
Table1. LED Indicators
