Abocom Manageable 14-port HomePNA Plus 2 Fast Ethernet Switch User Manual
Page 23
Displays the ports included in the VLAN Group you currently create. If you
want to delete the port you previously added in the VLAN Group, you can click
▼ to remove them.
Not In Group
Displays the ports not included in the VLAN Group you currently create. You
can highlight the ports in the list, click ▲ to add them in the VLAN Group.
Refresh Interval
Displays the data refresh speed.

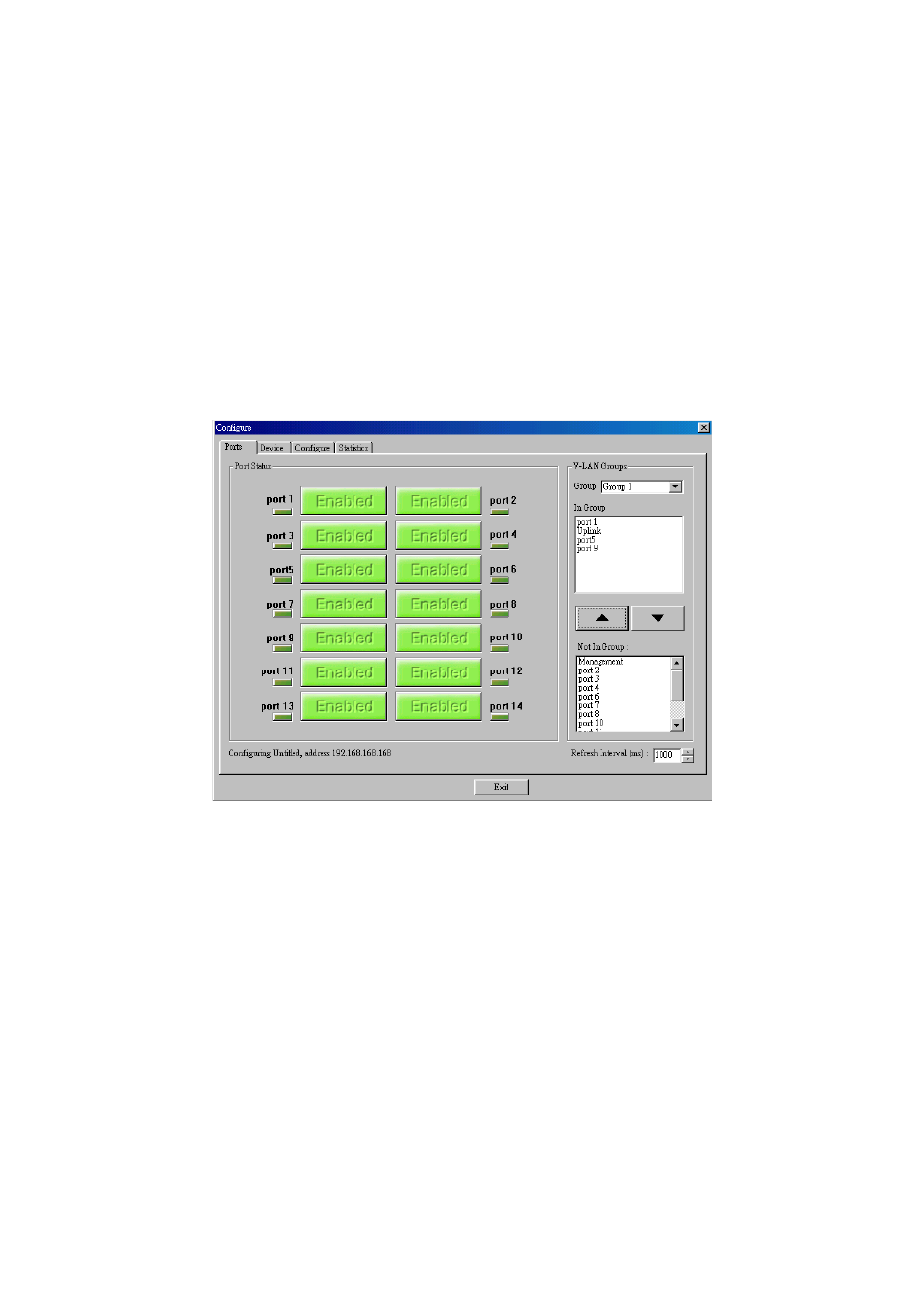

(The above figure displays that Port 1, Port 5 & Port 9 are included in one VLAN Group.)
- 17 -
