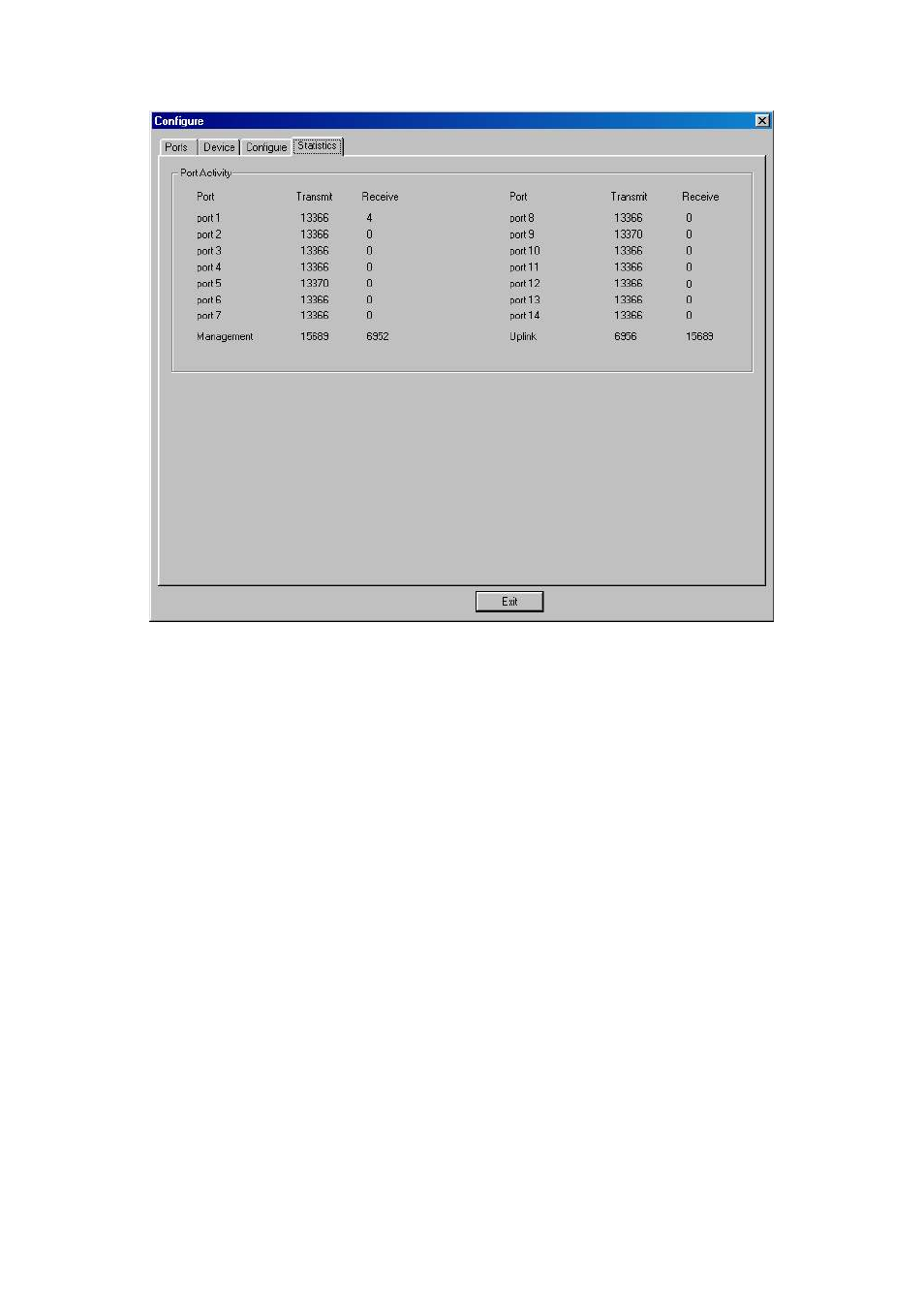

d. Statistics (displays the real-time status for each HomePNA port)

Uplink

Displays packets that the upper Fast Ethernet (Uplink) port counts from other

cascade switches.

Management

Displays the real-time data transmitting status for the HomePNA Switch.

Firmware Upgrade

Follow the steps below to upload new firmware:

1.

Download the latest firmware from your distributor and save it to the hard drive of

your PC or the floppy disk drive.

2.

Connect the HomePNA Switch and the PC with the RJ-45 Ethernet Cable through

the Uplink (management) port.

3. Open

the

HomePNA Switch Management Utility window.

- 21 -
